PRODUCT OVERVIEW

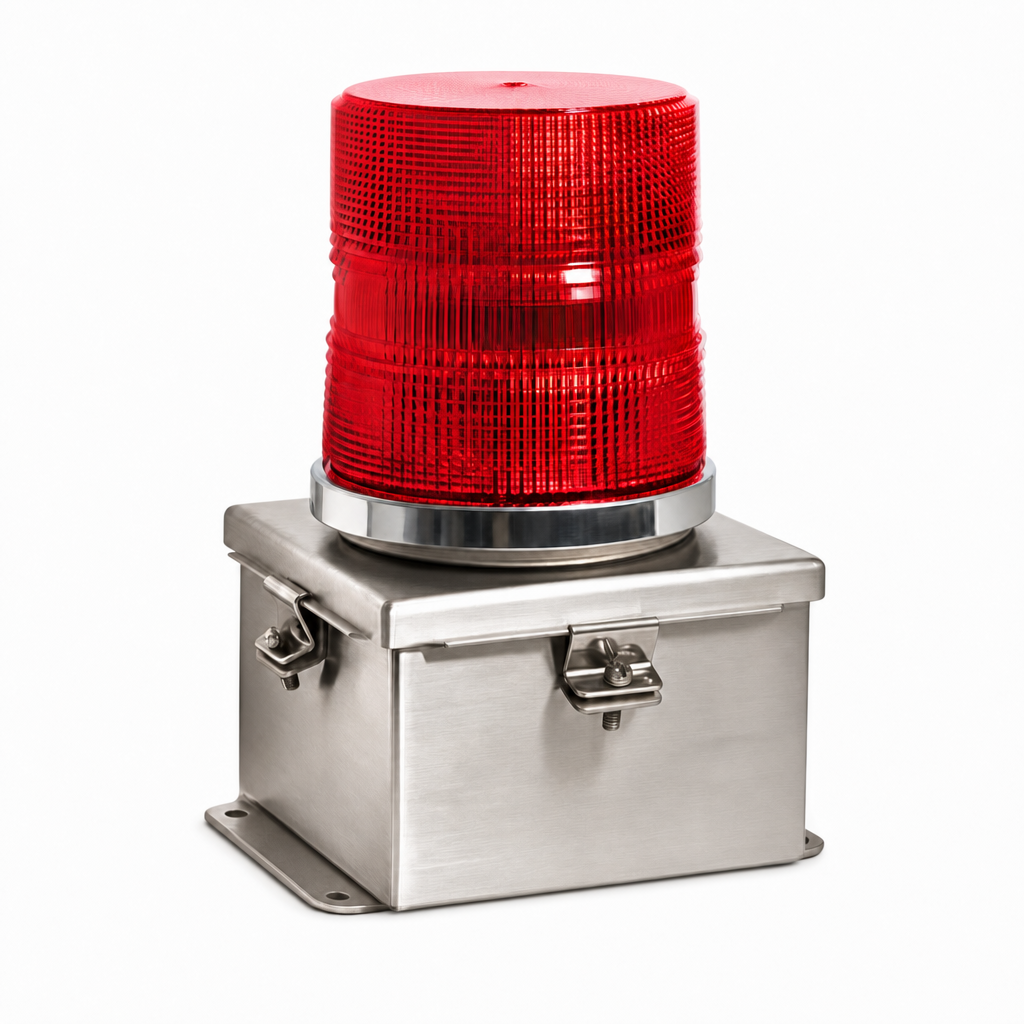

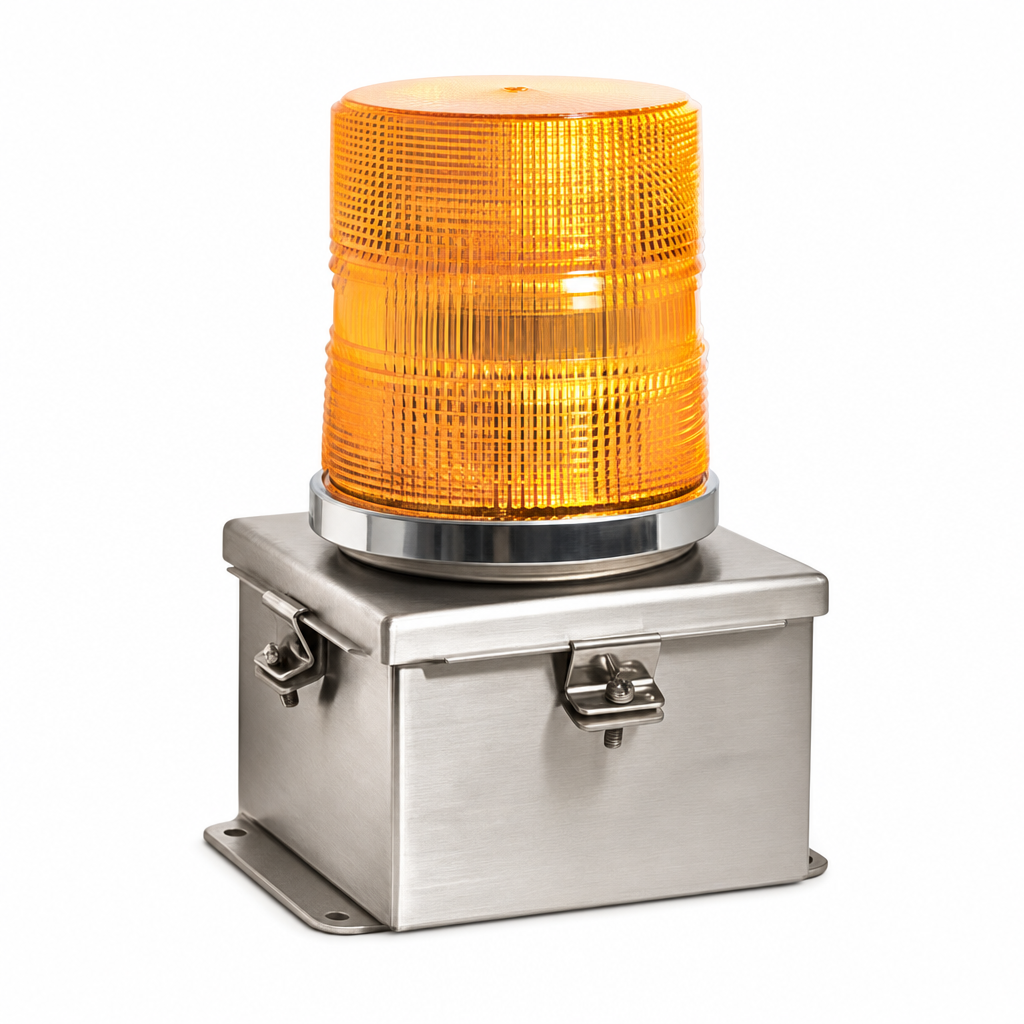

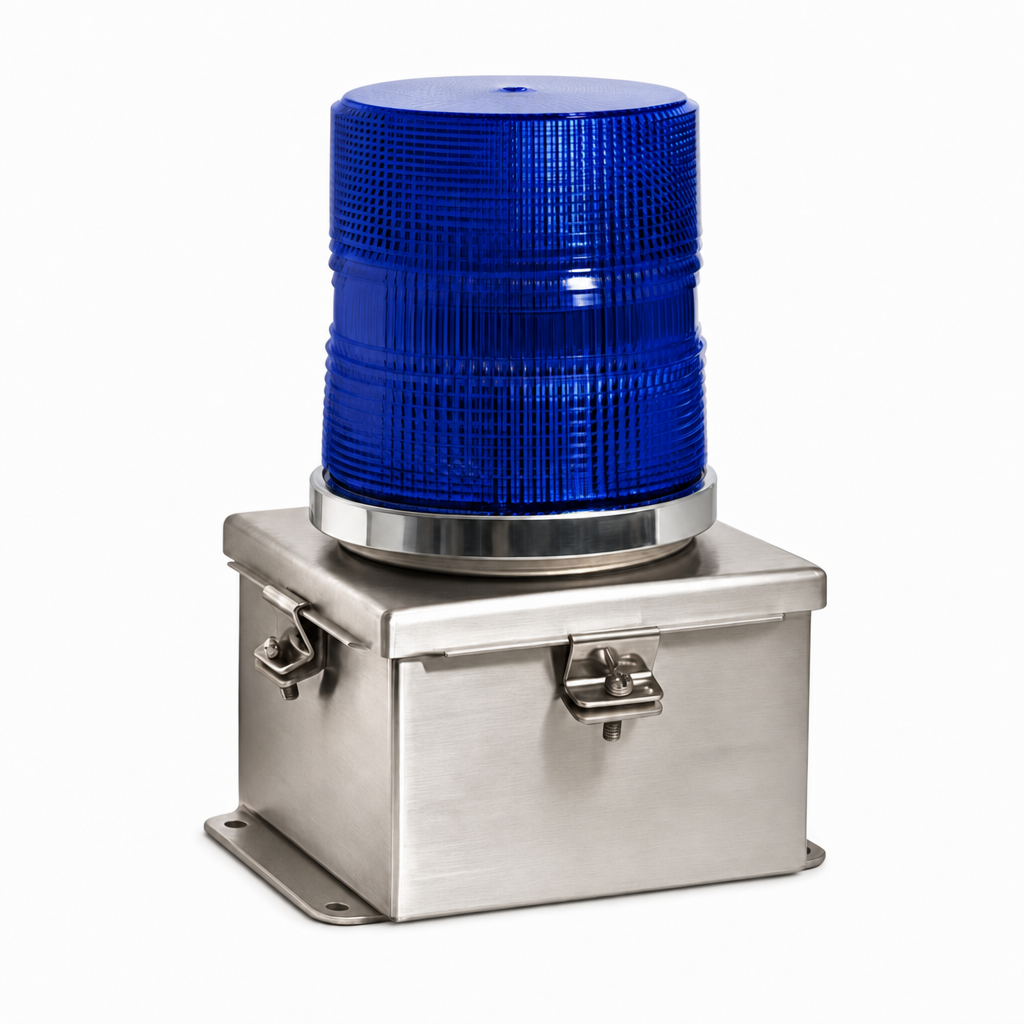

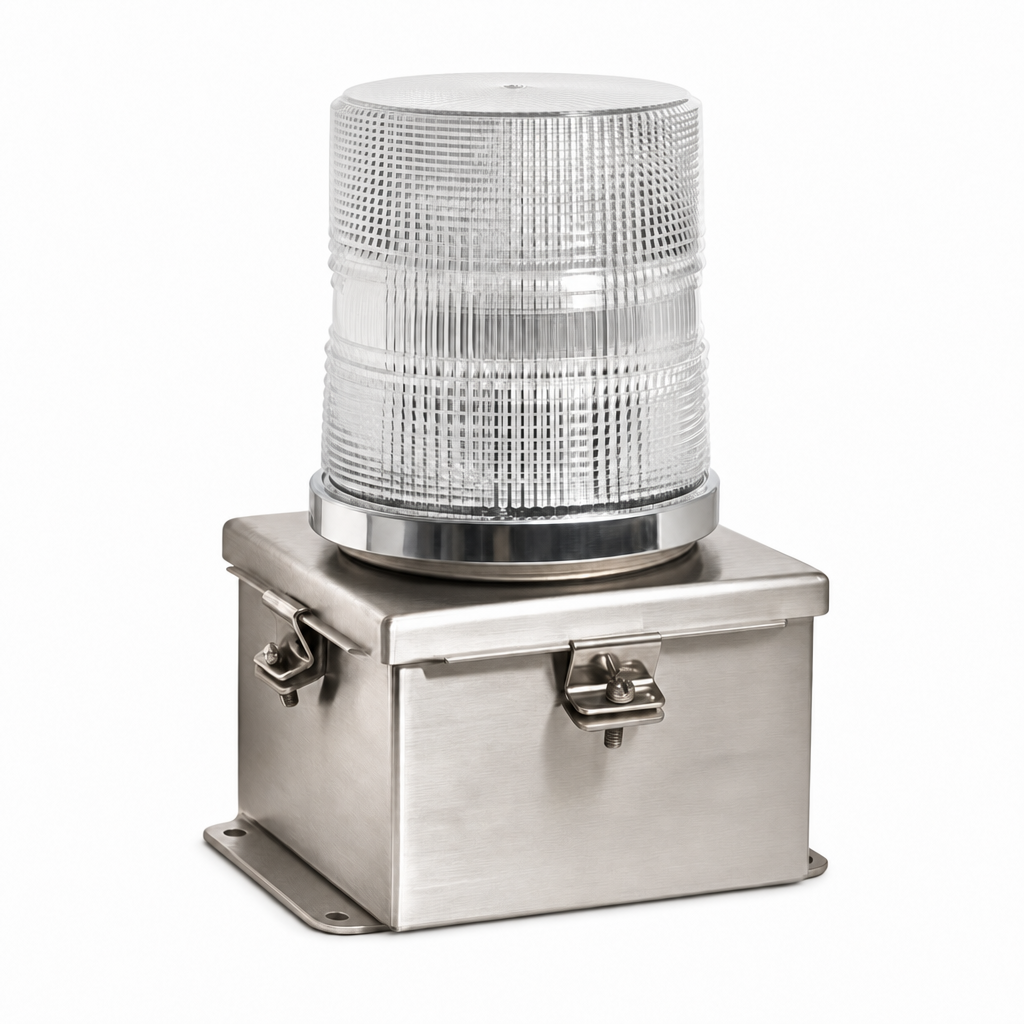

The model 3200HP family of single flash strobe lights is designed for heavy duty industrial use in steel mills and large manufacturing plants where higher light output is required. The 3200HP version is a 360° self contained unit consisting of a strobe lamp and Lexan® lens assembly mounted on a NEMA 4X enclosed power supply.
The 120 VAC 3200HP series of power strobes have a flash rate of 85 flashes per minute and a high output light intensity of 600 effective candlepower. They are available in six lens colors (amber, blue, clear, green, purple, and red). Each strobe contains a built-in RFI filter to protect against harmful electrical interference.
Product Options
- Model 3000HP - 15 joule power strobe NEMA 4X - Voltage: 120VAC
Key Features
- NEMA 4X enclosure
- Optional stainless steel enclosure
- Built in RFI filters
- 24,000 hour strobe lamp
- Polarity protected
- Solid state power supply
- Optional dome guard
- Optional lens dust cover
- Available in six lens colors
SPECS
- Light Output: 600 effective candlepower (ECP)*
- Flash Rate: 85 FPM
- Voltage and Amperage (Model 3200): 120VAC, draws 0.17A average
- Power Supply Output: 15 Watts, 15 joules per flash, 1,500,000 peak candlepower**
- Size and Weight (HP):
- Height: 10.75” (228mm)
- Width: 6.75” (171mm)
- Weight: 6.5 lbs. (2.94kg)
- Size and Weight (Power Supply Enclosure):
- Height: 8.25” (209mm)
- Width: 6” (153mm)
- Depth: 4” (101mm)
- Remote Beacon:
- Diameter: 5.5” (139mm)
- Height: 6.75” (171mm)
- Total Weight: 7 lbs. (3.17kg)
Architect and Engineer Specifications
Power Strobe 3200HP Series The visual signaling beacon shall be Tomar model number 3200HP, series or approved equal. The light source shall be a plug-in field replaceable single-flash xenon strobe lamp. The warning beacon shall have a Lexan® lens and be designed to accept a dome guard.
The beacon shall be in 15 joules configuration. Light intensity is to be 600 effective candlepower. The beacon must have the option to be mounted remotely from the power base, and the strobe tube is to be rated at 24,000 hours lamp life.
Voltage shall be 120VAC. Strobe light shall be designed to accept a dome guard, lens dust cover, and stainless steel enclosure.
