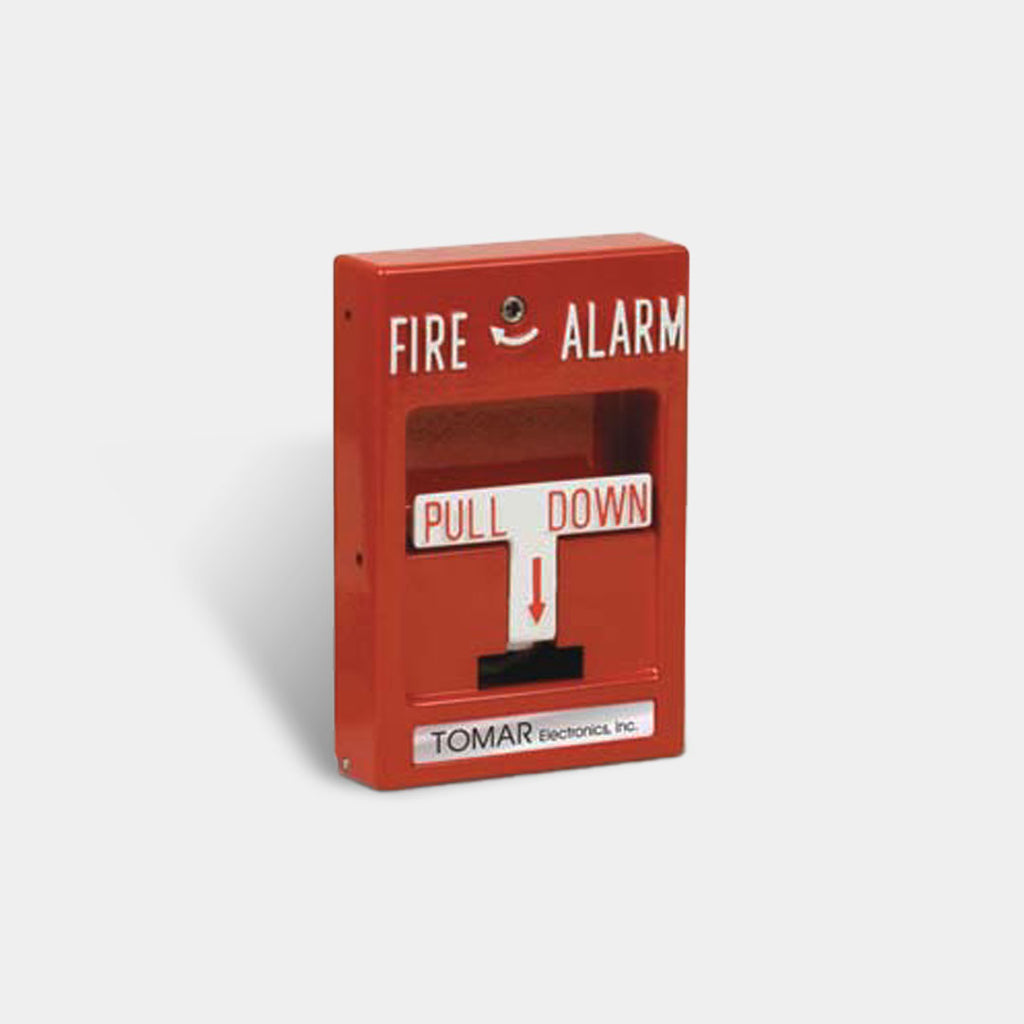

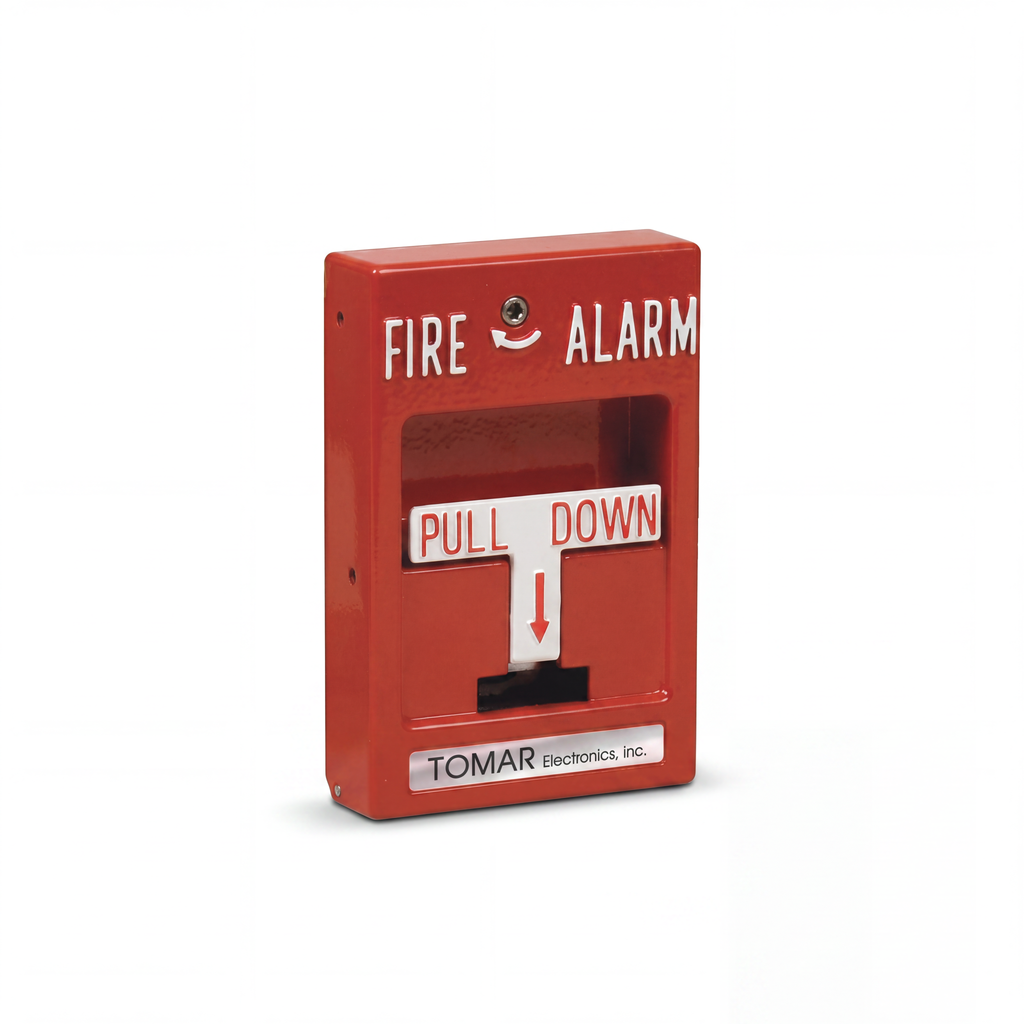

RMS - Indoor Series Fire Alarm Pull Station

PRODUCT OVERVIEW

The RMS series of manual pull stations are a high quality non toxic and low profile design with smooth edges that offer an attractive yet functional design. All components are pre-painted or have plated surfaces to inhibit corrosion.

Electrically the RMS series manual pull station is unbeatable with 10 amp snap action switch offered in all possible contact arrangements.

Key Features

• Optional lift and pull
• Optional break glass cover
• Institutional key lock
• All stations offer hex screw or optional key lock access
• Available in red, blue, green, yellow, white, black, gray, purple, and orange

Specifications

• Contact Rating: 10 amps @ 125/250 VAC
• Contacts:
  • S.P.S.T. (single pole single throw)
  • D.P.S.T. (double pole single throw)
  • D.P.D.T. (double pole double throw)
• Operating Temperature: -35° C to 65° C
• Wire: 12 to 22 AWG
• Wiring: Terminal block or pigtail
• Construction: Metal
• Mounting: Hardware & instructions included
• Dimensions & Weight:

Single Action

• Width: 3.2 in
• Height: 4.75 in
• Depth: 0.875 in
• Weight: 1.0 lb

Dual Action, Lift and Pull (LP)

• Width: 3.2 in
• Height: 4.75 in
• Depth: 1.5 in
• Weight: 1.2 lb

Dual Action, Break Glass (DAH)

• Width: 3.2 in
• Height: 4.75 in
• Depth: 1.625 in
• Weight: 1.6 lb

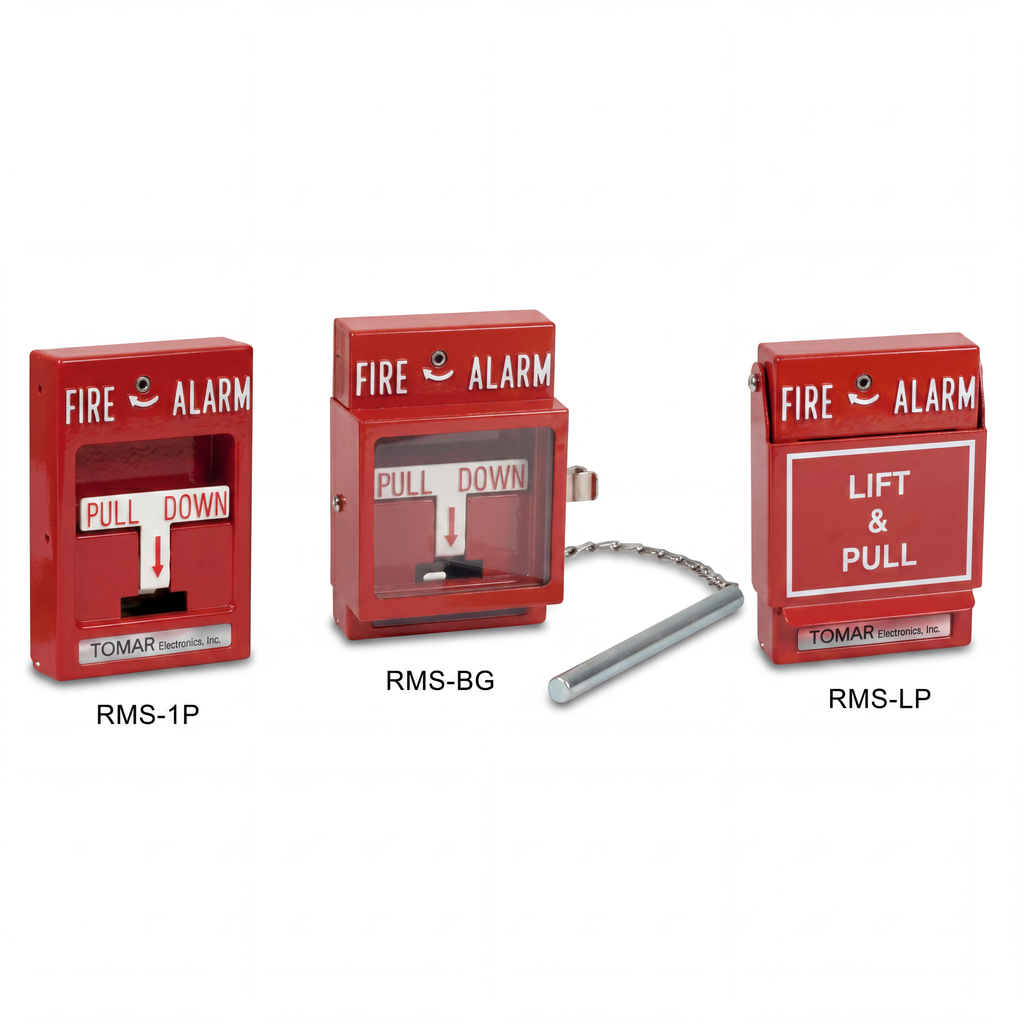

Part Options

Model	Description
RMS-1P	S.P.S.T. with Pigtail connection
RMS-2P	D.P.S.T. with Pigtail connection
RMS-1T	S.P.S.T. with Terminal connection
RMS-2T	D.P.S.T. with Terminal connection
