PRODUCT OVERVIEW

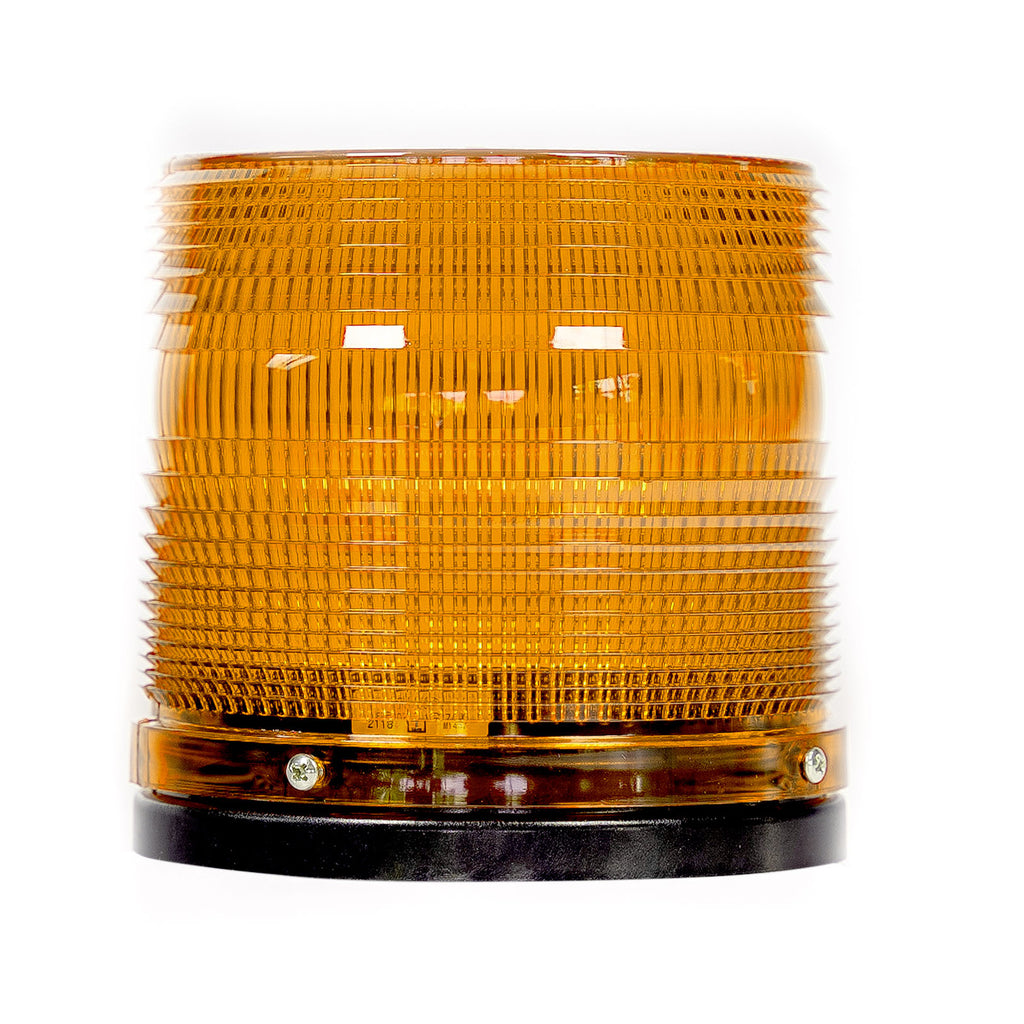

TOMAR model 500L-1224 LED warning beacon features a super bright white LED light engine and choice of six interchangeable color lenses. All electronic components are encapsulated in polyurethane for unparalleled protection against moisture and vibration.
It is available in 12-24 Volt, and is warranted for a full 5 years.
The 500L offers a choice of 21 programmable flash modes plus Steady burn, and the LED light source is rated at 100,000 hours of operation.
Key Features
- 12 – 24 VAC/DC
- Universal mounting
- 100,000 hour LED Lamp
- 5 year warranty
- NEMA 4X
Specifications
- Flash Rate: 21 flash rates plus steady burn
- Light Output: 43 candela
- Voltage and Amperage: 0.3A @ 24VDC flashing – 0.15A steady burn
- Size and Weight: 5.25” tall x 5.5” dia. x 2.0 lbs ( 133mm x 140mm x 0.9kg )
- Operating Temperature: -40º to 65º C
Helpful Links
FAQ's
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturers fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT
Where can I find the product data sheets
Click here to access our product data sheets
