PRODUCT OVERVIEW

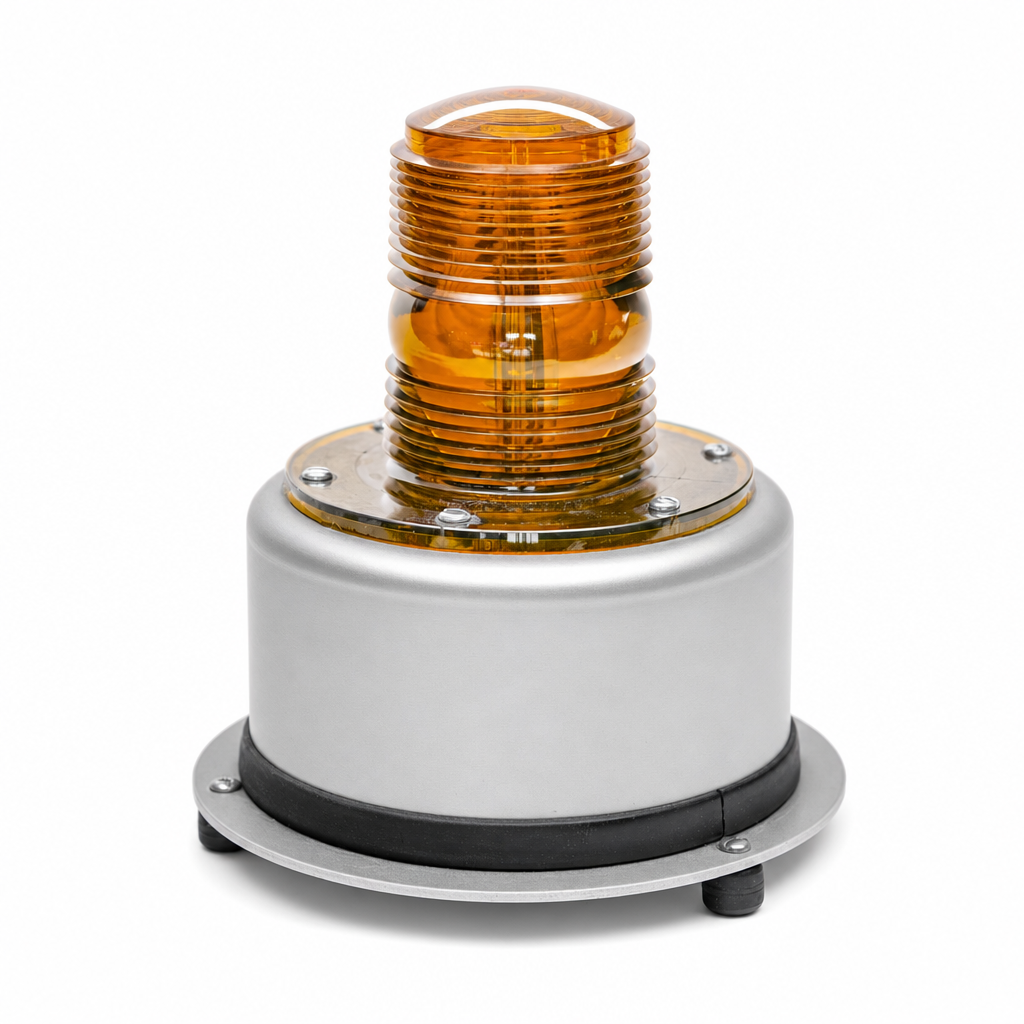

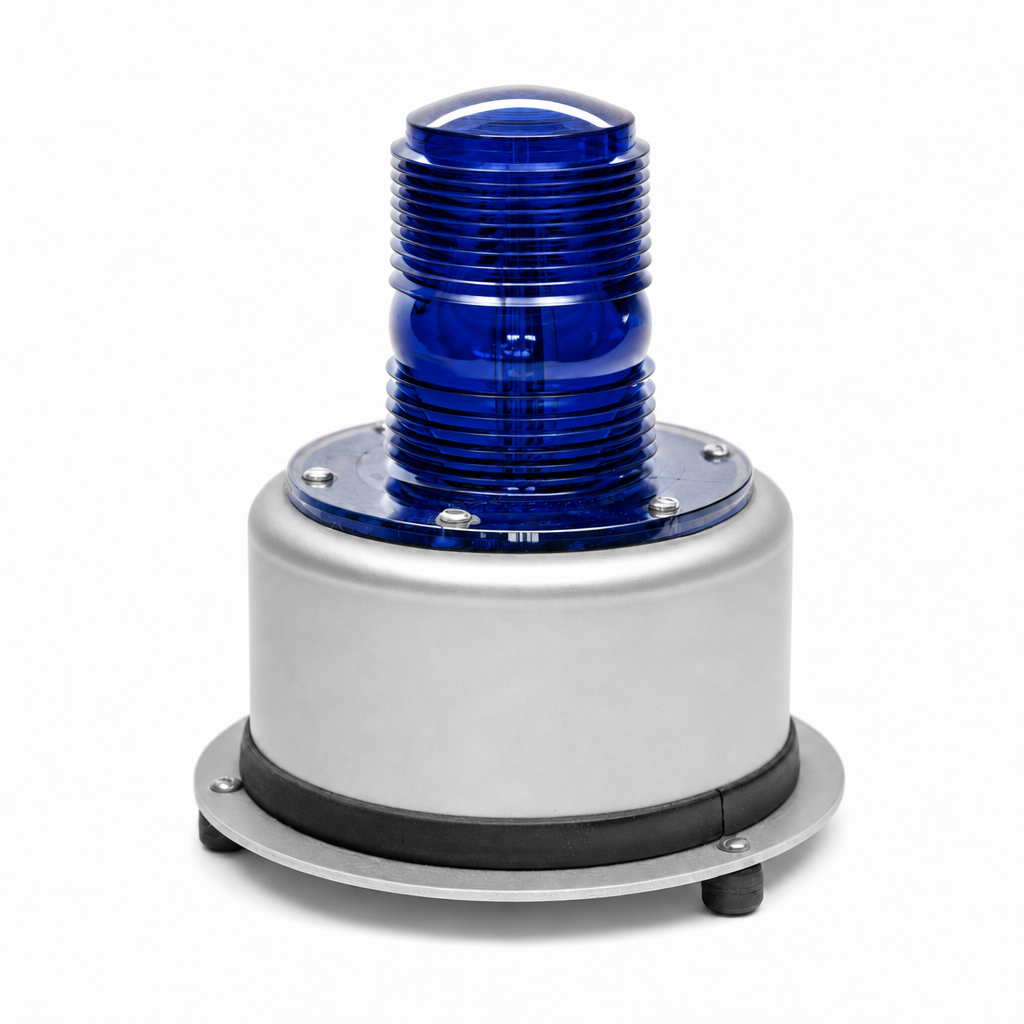

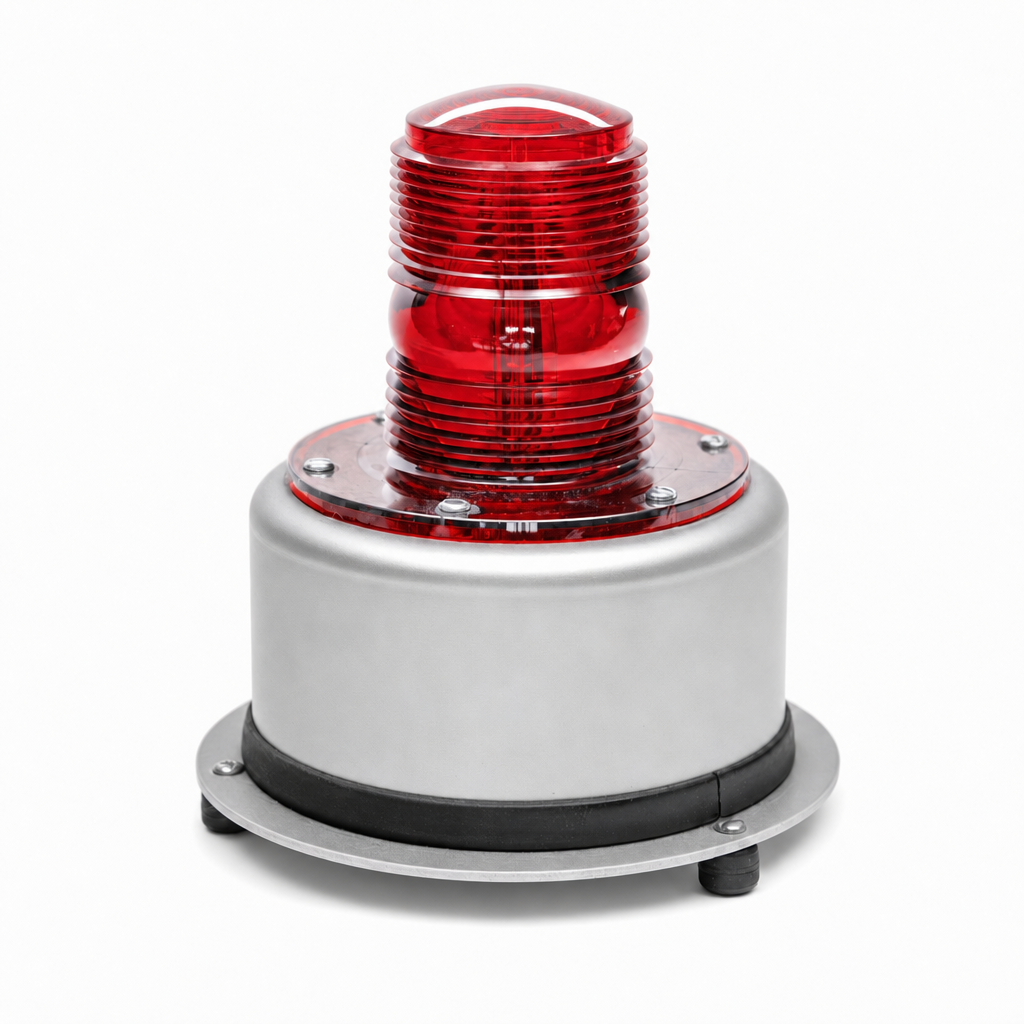

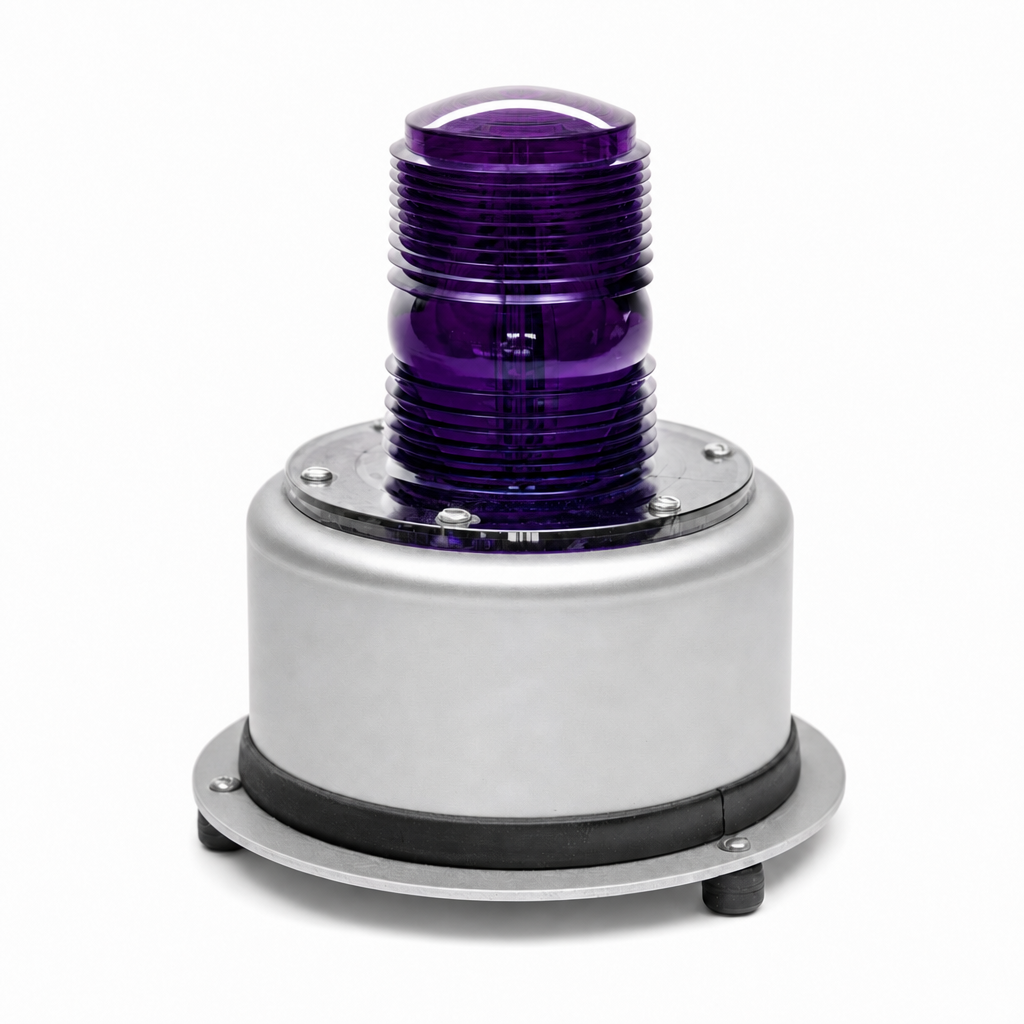

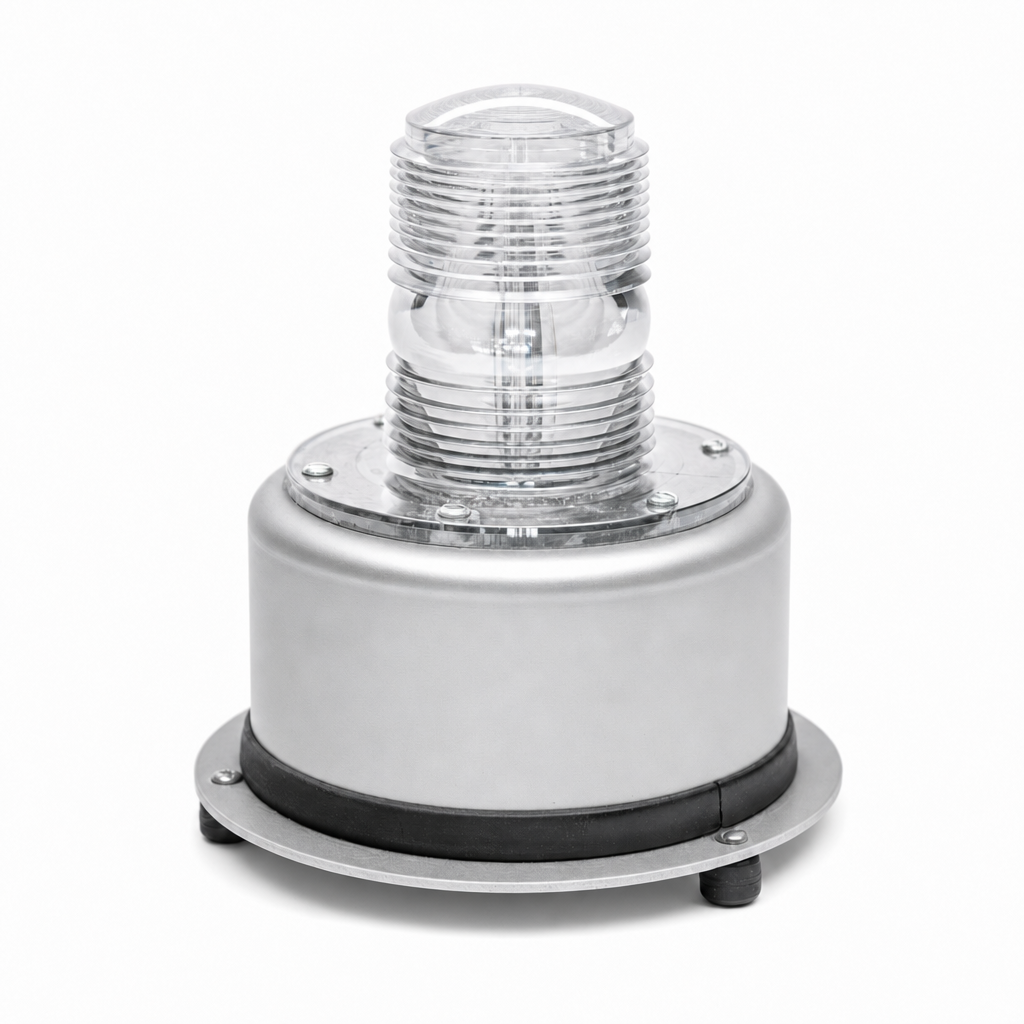

The model 700 MINI STROBE family is a single flash heavy duty strobe light featuring an all aluminum housing, flange mounting, 360° Lexan® lens, high efficiency regulated solid state power supply and a plug-in field replaceable heavy duty xenon strobe lamp.
The 700–1274 will operate over 12–74VDC without making any changes or adjustments. DC models are UL component recognized for use on type E, EE, and ES electric industrial trucks covered by UL standard #583.
Key Features
- Aluminum housing
- Heavy duty construction
- Solid state power supply
- Xenon strobe lamp
- Colors: amber, blue, clear, green, purple, & red
- 2 year warranty on power supply
- 1 year warranty on lamp
- UL recognized (DC models only)
- NEMA 3R
Available Models
| Part Number | Voltage | Type | Joules | Notes |
|---|---|---|---|---|
700-110-15J |
120VAC | AC Strobe | 15J | High output model |
700-110 |
120VAC | AC Strobe | 8J | Standard AC model |
700-240 |
240VAC | AC Strobe | 8J | High voltage AC |
700-1274 |
12 to 74VDC | DC Strobe | 8J | UL recognized |
700-120DC |
120VDC | DC Strobe | 8J | UL recognized |
Specifications
| Specification | Details |
|---|---|
| Flash Rate | 80 to 95 flashes per minute |
| Light Output | 185 ECP (8J), 360 ECP (15J) |
| Voltage and Amperage |
12 to 74VDC: 1.25A to 0.2A 120VAC: 0.17A 120VDC: 0.1A 240VAC: 0.12A |
| Power Output |
11W, 8J per flash, 800,000 peak CP 15J model: 1,500,000 peak CP |

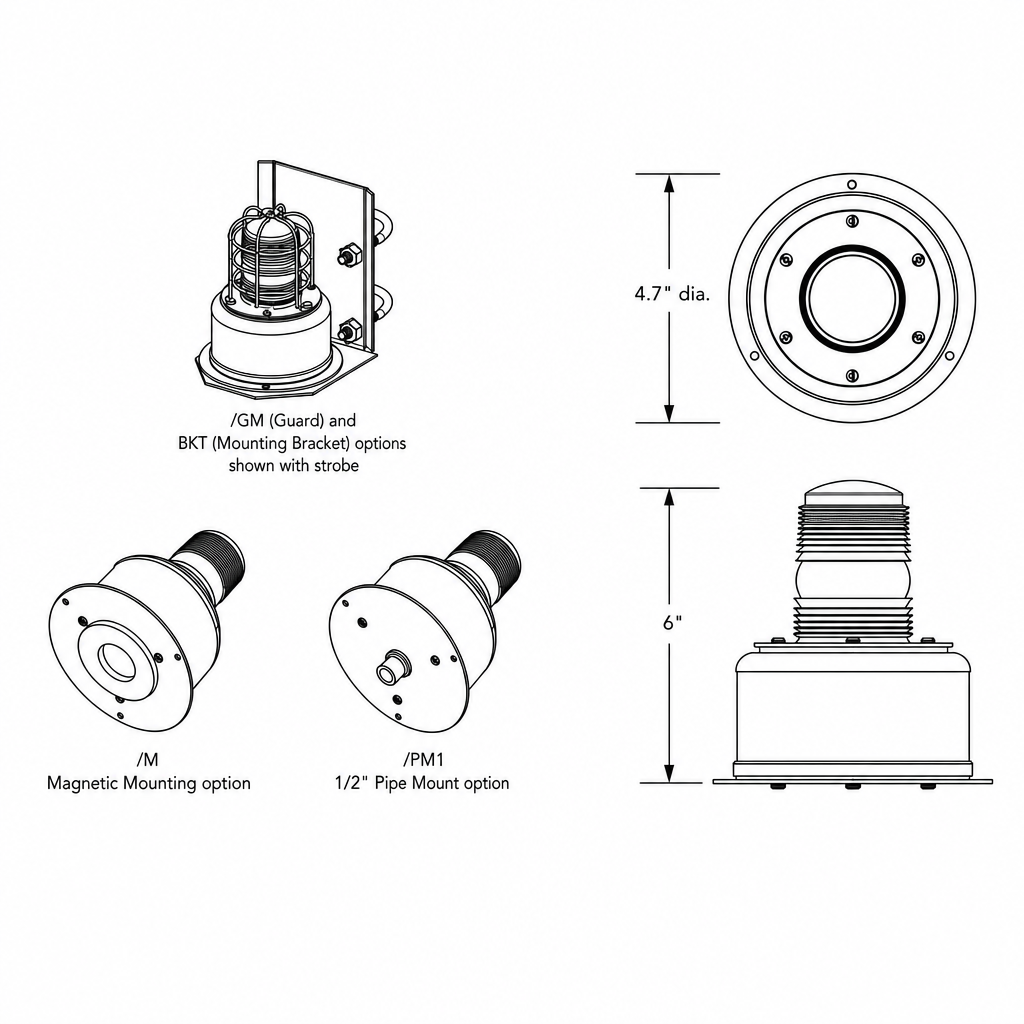

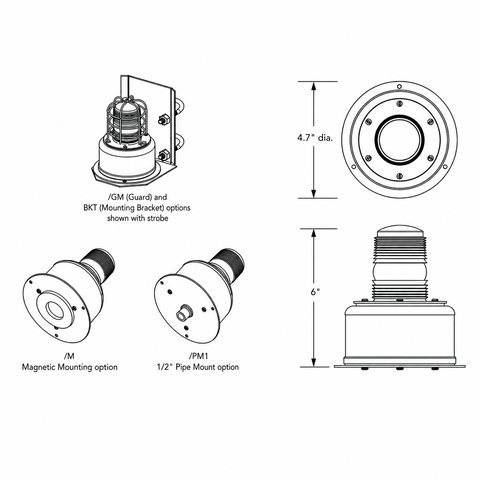

| Size | 6" height x 4.7" diameter |
| Weight | 1.3 lbs |
| Rating | NEMA 3R, UL recognized (DC models) |
Architect and Engineer Specifications
The visual signaling beacon shall be Tomar model 700 or approved equal. The light source shall be a plug-in field replaceable single flash xenon strobe lamp and having a flash rate of 80 to 90 flashes per minute. Housing material shall be aluminum with a 360 degree Lexan® lens, and either flange, magnetic, or pipe mount. Voltage ranges shall be 12-74VDC, 120VAC, 120VDC, and 240VAC. Power supply output shall be 11 watts and generating either 8 or 15 joules per flash depending on the model. Strobe light shall be designed to accept a dome guard, 180 degree lens blackout, and straight or coiled cigar plug
Helpful Links
FAQ's
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturers fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT
