PRODUCT OVERVIEW
The model 801 family is a low profile, single flash strobe light featuring universal mounting, low profile 360° Lexan® lens, high efficiency regulated solid state power supply, and heavy duty xenon strobe lamp. All units are polarity protected and have built-in filters to protect against radio interference and spike voltages.
The model 801 features a fully potted, Lexan®, multi-purpose mounting base which is vibration and water resistant. The 801 also features a field replaceable plug-in strobe lamp and a state of the art energy storage capacitor for increased intensity.
Key Features
- Universal mounting
- Built-in RFI filters
- Solid state power supply
- Xenon strobe lamp

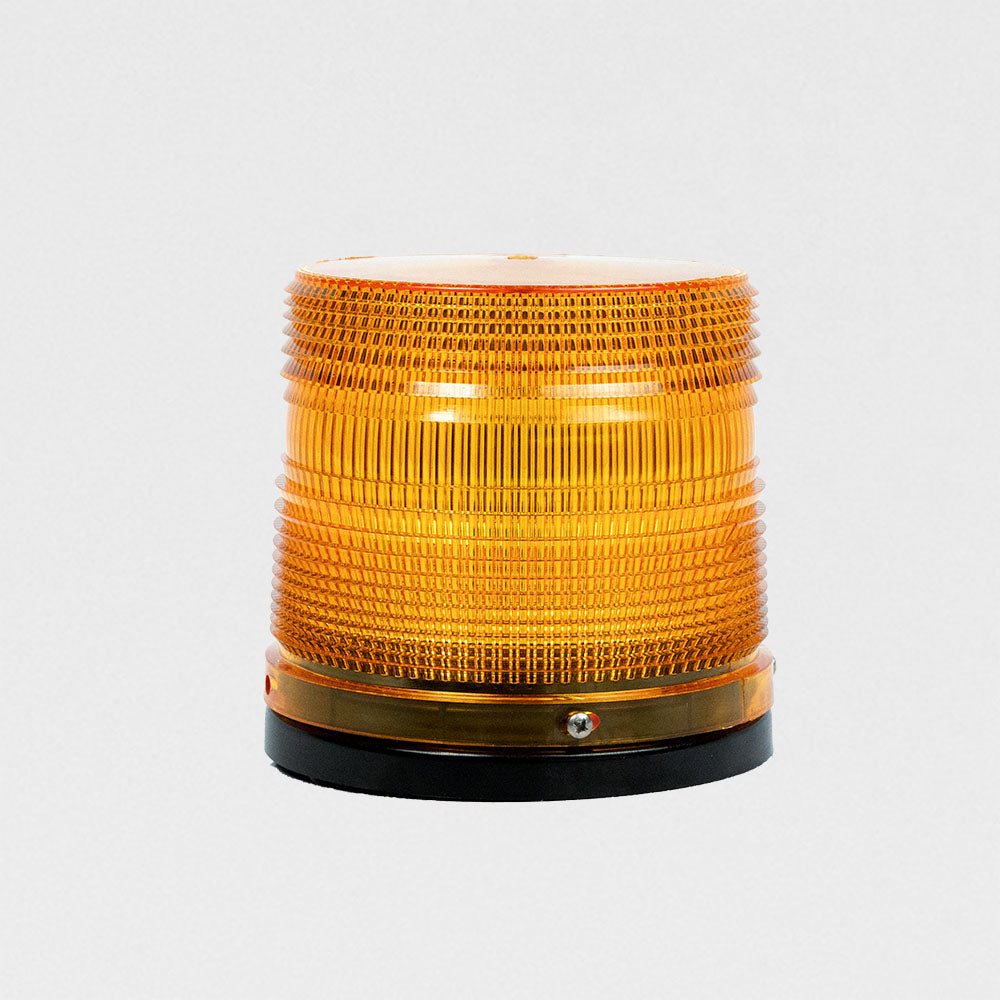

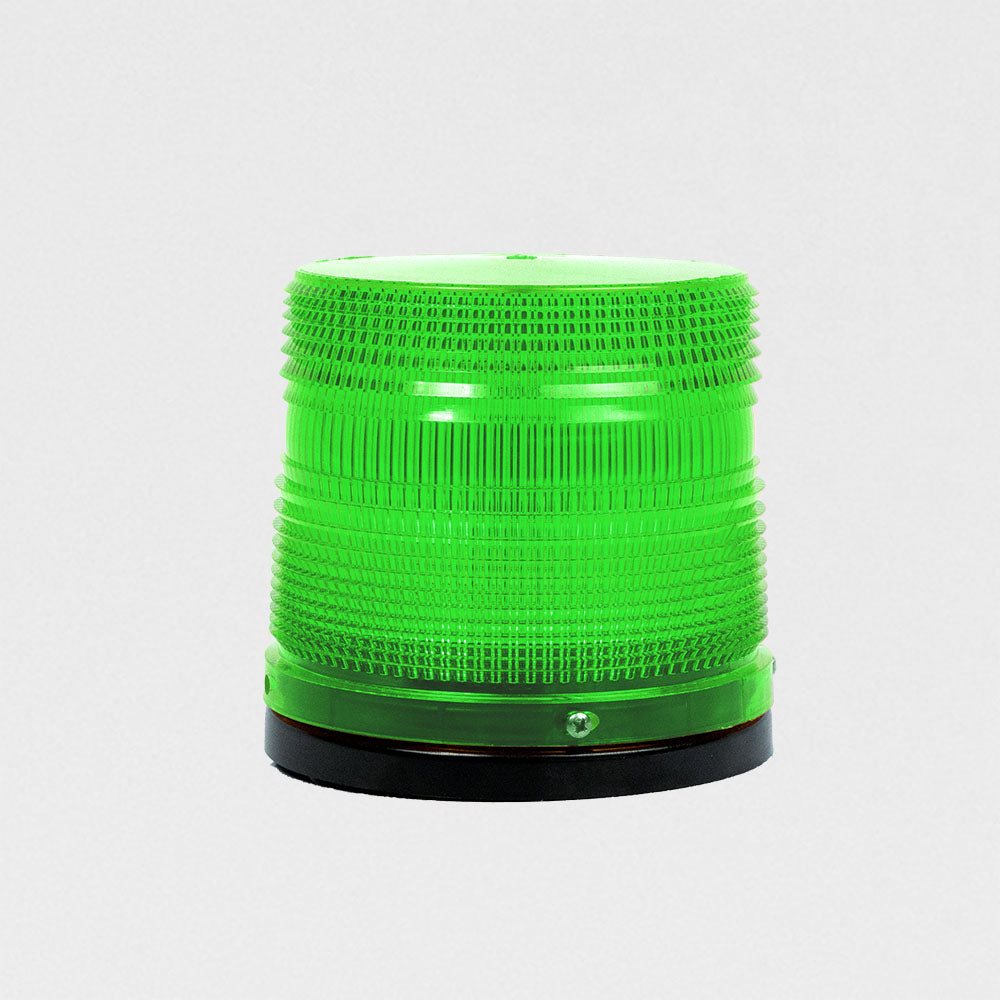

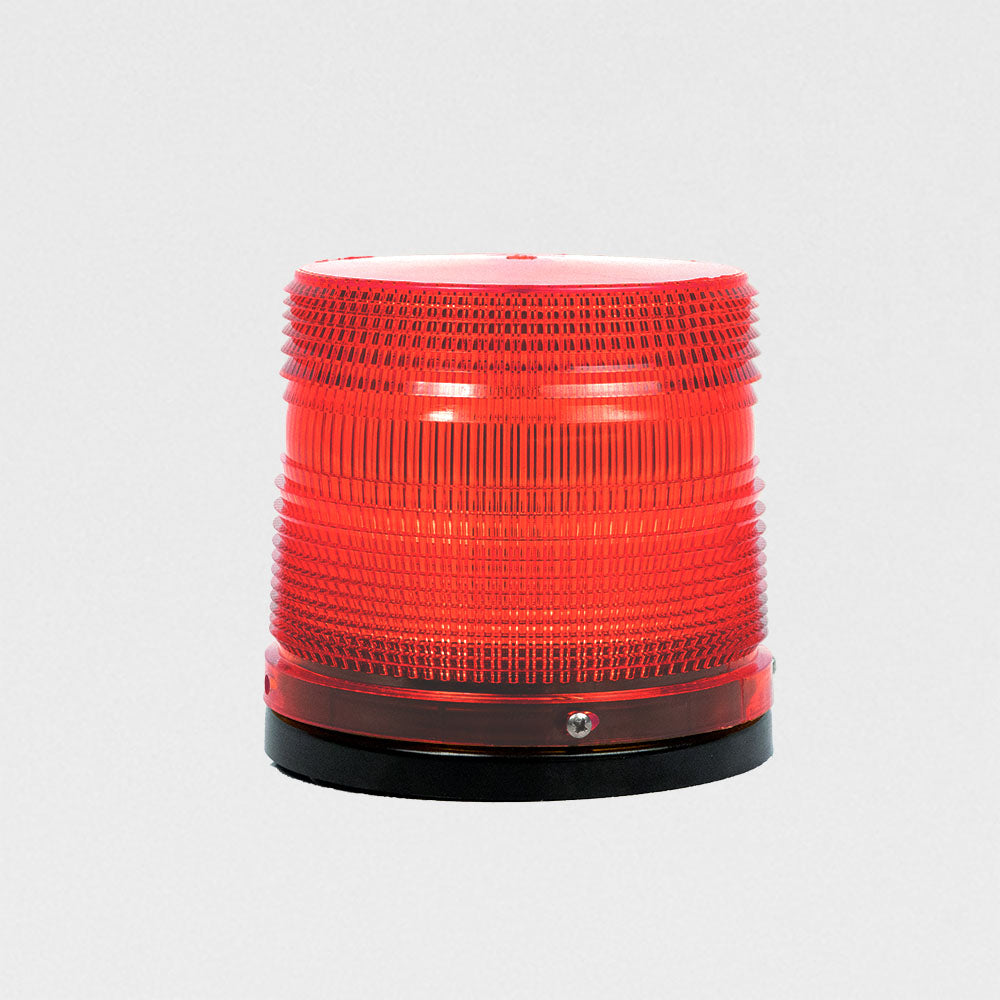

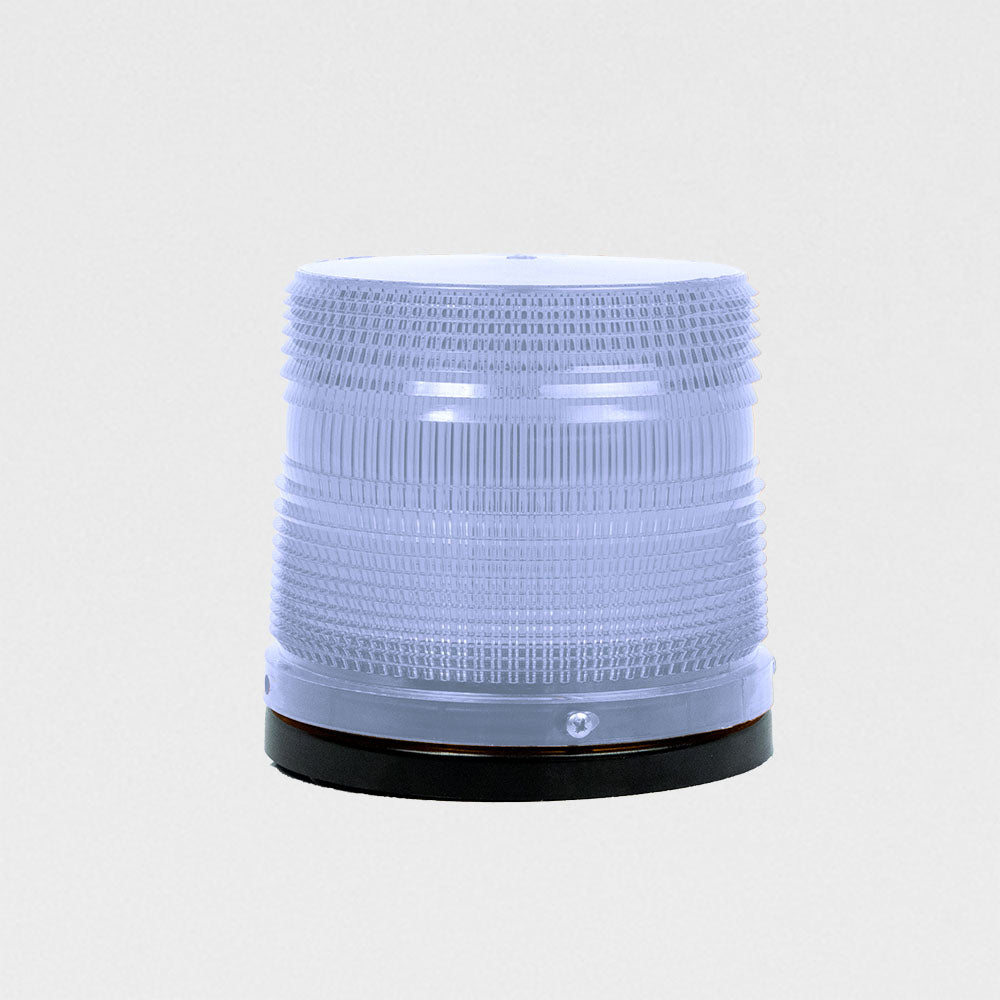

- Available in amber, blue, clear, green, purple, and red
- 5 year warranty on power supply
- 1 year warranty on lamp
- UL listed (where noted below)
Potential Uses
- Grain Storage, Processing, and Agriculture (irrigation use) Applications
- Manufacturing and Assembly
- Processing, Bottling, and Food Packaging
- Steel and Ore Mills
Specifications
- Flash Rate: 80 to 95 flashes per minute
- Light Output: 400 effective candlepower (ECP)*
- Voltage and Amperage:
- 12-74VDC draws 1.25A @ 12V tapering to 0.2A average @ 74V
- 120VAC draws 0.3A average
- 240VAC draws 0.3A average
- Power Supply Output: 11 Watts 8 joules per flash. 800,000 Peak Candlepower**
- Operating Temperature: -40°C to 65°C
- Size and Weight: 5.25” tall x 5.5” dia. x 2.0 lbs (133mm x 140mm x 0.9kg)
- Encapsulation: Fully potted in urethane material with no exposure to High Voltage possible
Models
| Model | Description | Voltage |
| 801–110 | AC strobe with 10” leads, UL listed | 120VAC, 50/60Hz |
| 801LC–110 | AC strobe with AC cord set, UL listed | 120VAC, 50/60Hz |
| 801LCMB–110 | AC strobe, magnetic mount and cord | 120VAC, 50/60Hz |
| 801–240 | AC strobe with 10” leads, UL listed | 240VAC, 50/60Hz |
| 801–1274 | DC strobe with 10” leads, 800–FLG | 12 – 74VDC |
| 801MB–1274 | DC strobe, magnetic mount and 10’ coil cord | 12 – 74VDC |
| 801MBSC–1274 | DC strobe, magnetic mount and 10’ straight cord | 12 – 74VDC |
Architect and Engineer Specifications
The visual signaling beacon shall be Tomar model 801 or approved equal. The light source shall be a plug-in field replaceable single-flash xenon strobe lamp. The warning beacon shall have a Lexan® lens and universal mount base. The warning signal must have built-in RFI filters to protect against radio interference and spike voltages. It shall be polarity protected, and have a power supply fully potted in polyurethane. The beacon shall have an 11 watt power supply, and generate 8 joules per flash at 80 to 95 flashes per minute. Light intensity is to be 400 effective candlepower, and voltage ranges shall be 12-74VDC, 120 VAC, and 240VAC. Strobe light shall be designed to accept a dome guard and mounting bracket.
NOTES
*ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily.
**Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse.
Helpful Links
3D STEP FILES
FAQ's
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturers fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT
Where can I find the product data sheets
Click here to access our product data sheets
