BExBGL LED Flameproof Beacon

  • TOMAR Electronics flameproof BExBGL LED beacon is suitable for Zone 1, 2, 21 & 22 applications. It is approved to IECEx, ATEX, Ex EAC and INMETRO standards.
  • SKU:
  • Regular price MSRP:
  • YOUR PRICE:

PRODUCT OVERVIEW

TOMAR Electronics flameproof BExBGL LED beacon is suitable for Zone 1, 2, 21 & 22 applications. It is approved to IECEx, ATEX, Ex EAC and INMETRO standards.

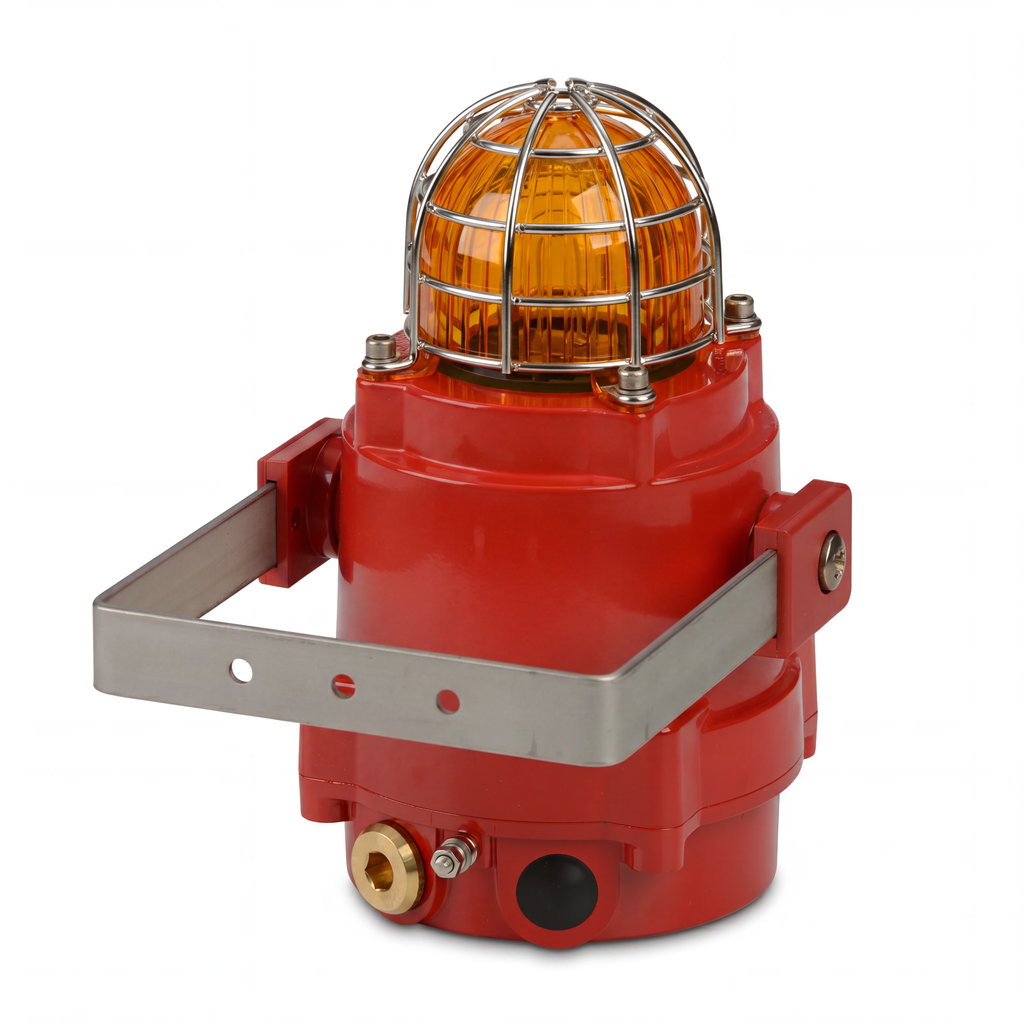

The BExBGL explosion proof LED status light & beacon utilizes an array of high power Cree® LED’s, orientated to optimize visibility in any direction.

The beacon can be configured as a steady beacon for status indicator use, with a light output of up to 87 candela. Alternatively one of the five flashing modes, with a light output of up to 160 candela, may be used for warning applications. DC voltage versions feature three remotely selectable stages enabling multiple warnings to be signaled from one device. The UV stable color filter enhances the light output and is field replaceable.

Key Features

  • Marine grade, corrosion proof, LM6 aluminum enclosure
  • Ingress protection IP66/67
  • Choice of five flash rates1Hz, 1.5Hz, 2Hz, double and triple flash.
  • High and low power Steady On modes
  • Three remotely selectable stages/channels on DC versions.
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens color filter
  • Stainless steel fixings
  • Dual cable entries
  • Duplicate cable terminations (in & out for daisy-chain installations)
  • Ratchet adjustable stainless steel ‘U’ bracket.

Models

Model Voltage Steady High Power Current Steady Low Power Current Steady 1 Hz Current
BExBGL-024-(lens color) 18-54 VDC 240mA 134mA 110mA
BExBGL-115-(lens color) +/- 10% 50/60Hz 95mA 78mA 90mA
BExBGL-230-(lens color) +/- 10% 50/60Hz 48mA 34mA 45mA

Specs

  • Source: Array of 4 x High Power Cree® LED’s
  • Modes:
    • 1Hz flash (60 fpm)
    • 1.5Hz flash (90 fpm)
    • 2Hz flash (120 fpm)
    • Double strike flash
    • Triple strike flash
    • High Power Steady
    • Low Power Steady
  • Eff. Intensity cd:
    • 87 cd – High Power Steady
    • 160 cd – 1Hz flash

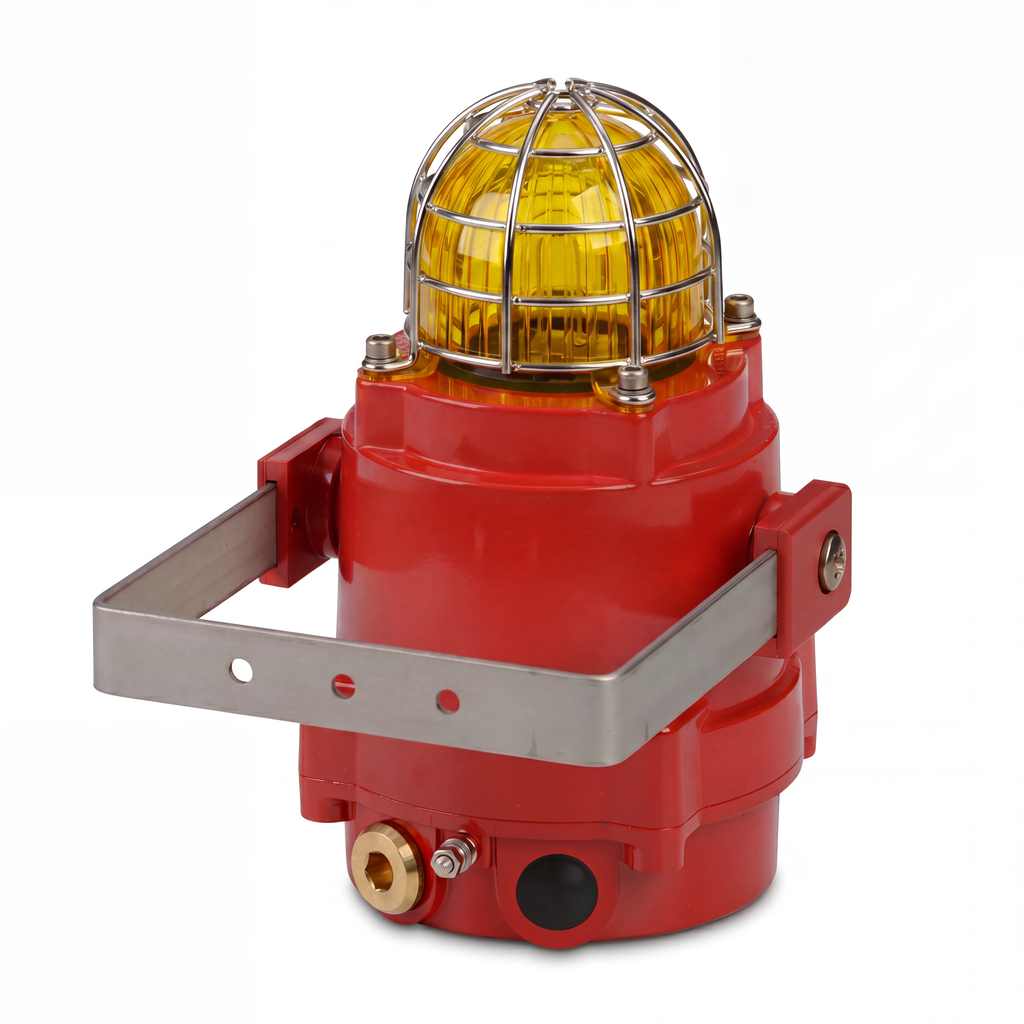

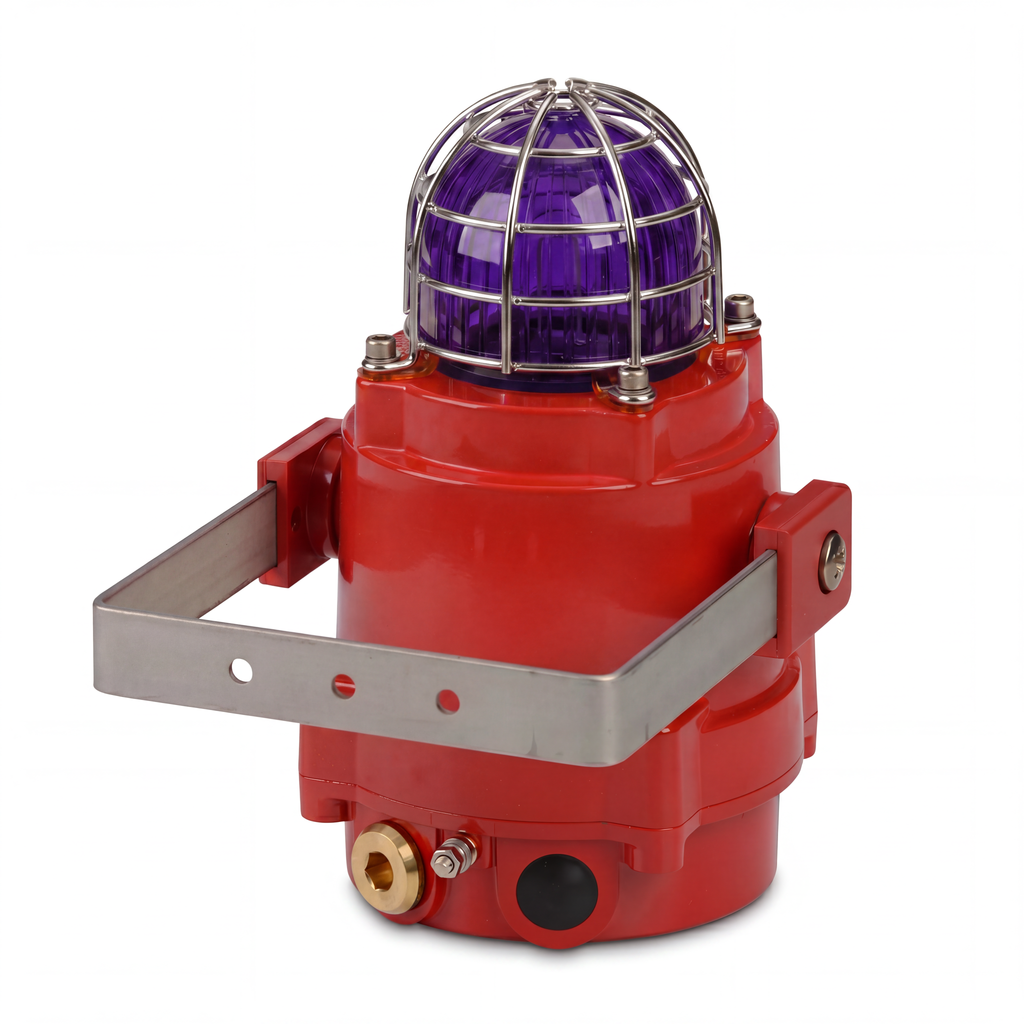

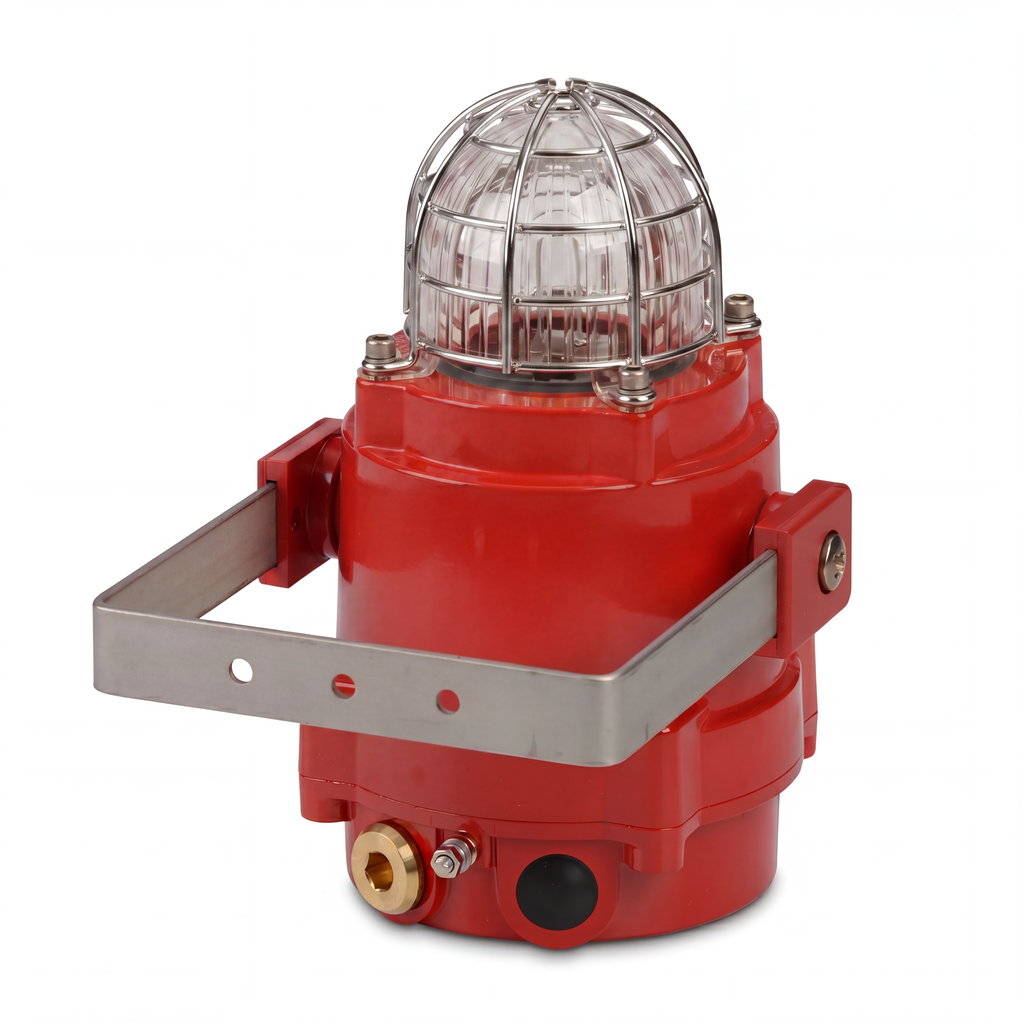

  • Lens colors: Amber, Blue, Clear, Green, Magenta, Red & Yellow
  • Voltages DC: 24V dc (18-54V dc)
  • Voltages AC: 115V ac; 230V ac
  • Ingress protection: IP66/67
  • Enclosure material: Marine grade copper free LM6 Aluminum
  • Enclosure finish: Chromate & powder coated finish – anti-corrosion.
  • Color: RAL3000 Red (Others available on request)
  • Cable entries: Dual M20 ISO (one stopping plug included)
  • Terminals: 0.5 – 2.5mm² (20-14 AWG)
  • Enclosure volume: <2 liters
  • Line monitoring: Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
  • LED life: 60,000 hours
  • Grounding stud: M5
  • Temperature range: -50° to +70°C (-58°F to +158°F)
  • Relative humidity: 90% at 20°C [68°F]
  • Weight: DC: 2.45kg/5.39Ibs AC: 2.75kg/6.05Ibs

Helpful Links

BExBGL Explosion-Proof LED Status Light and Beacon product information sheet
