PRODUCT OVERVIEW

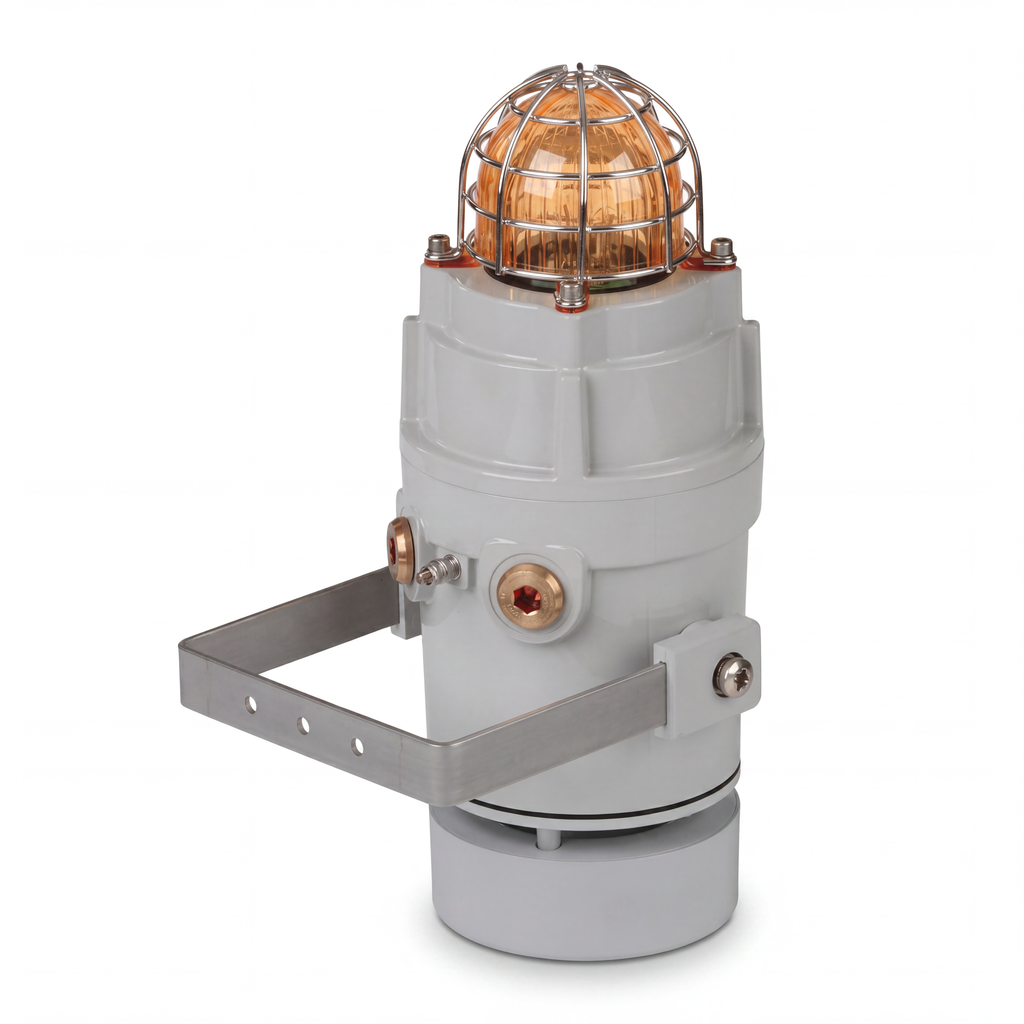

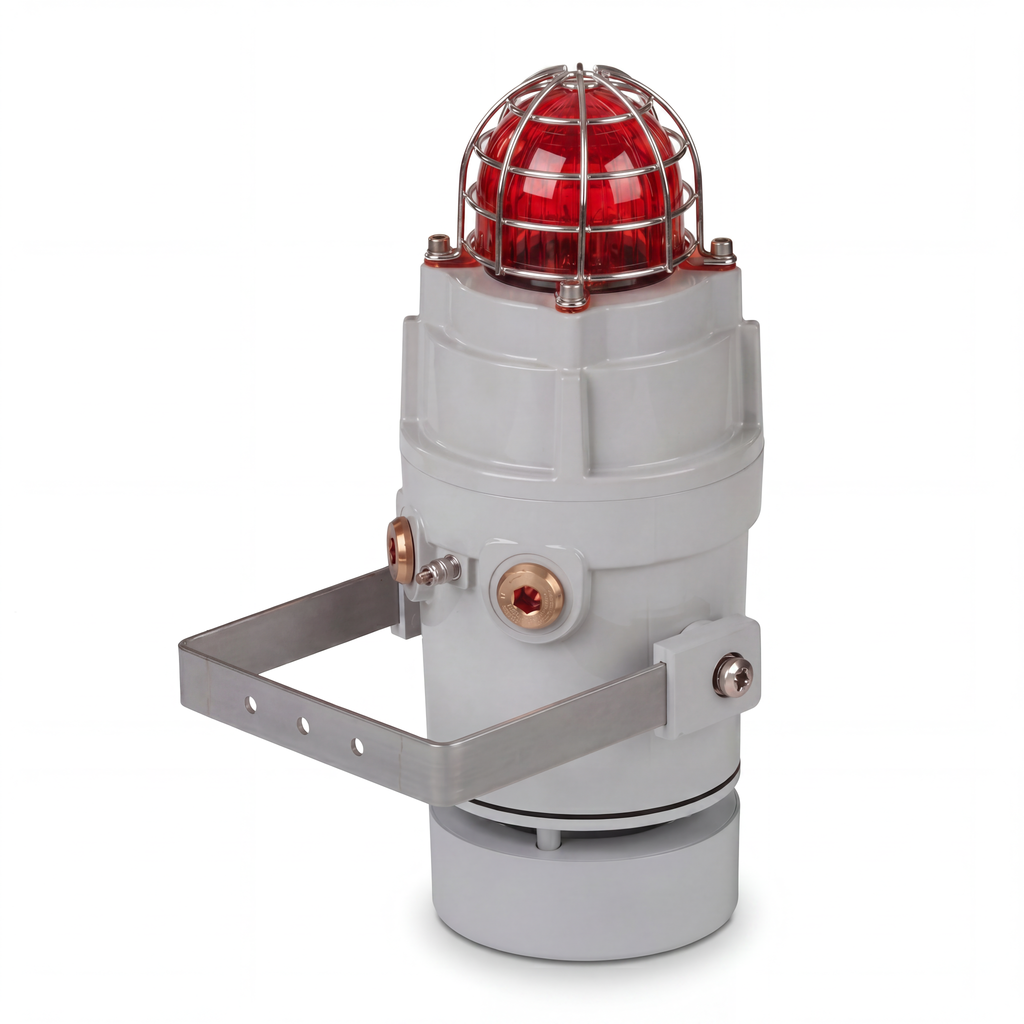

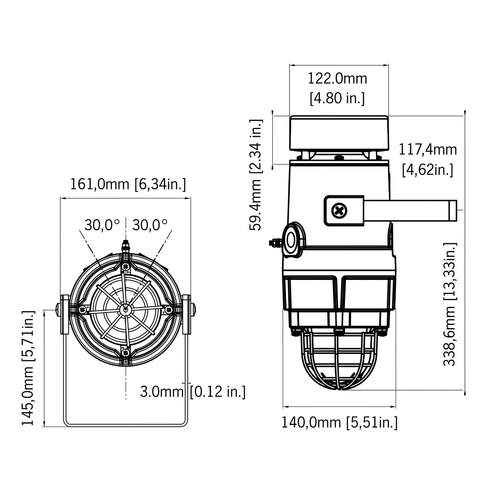

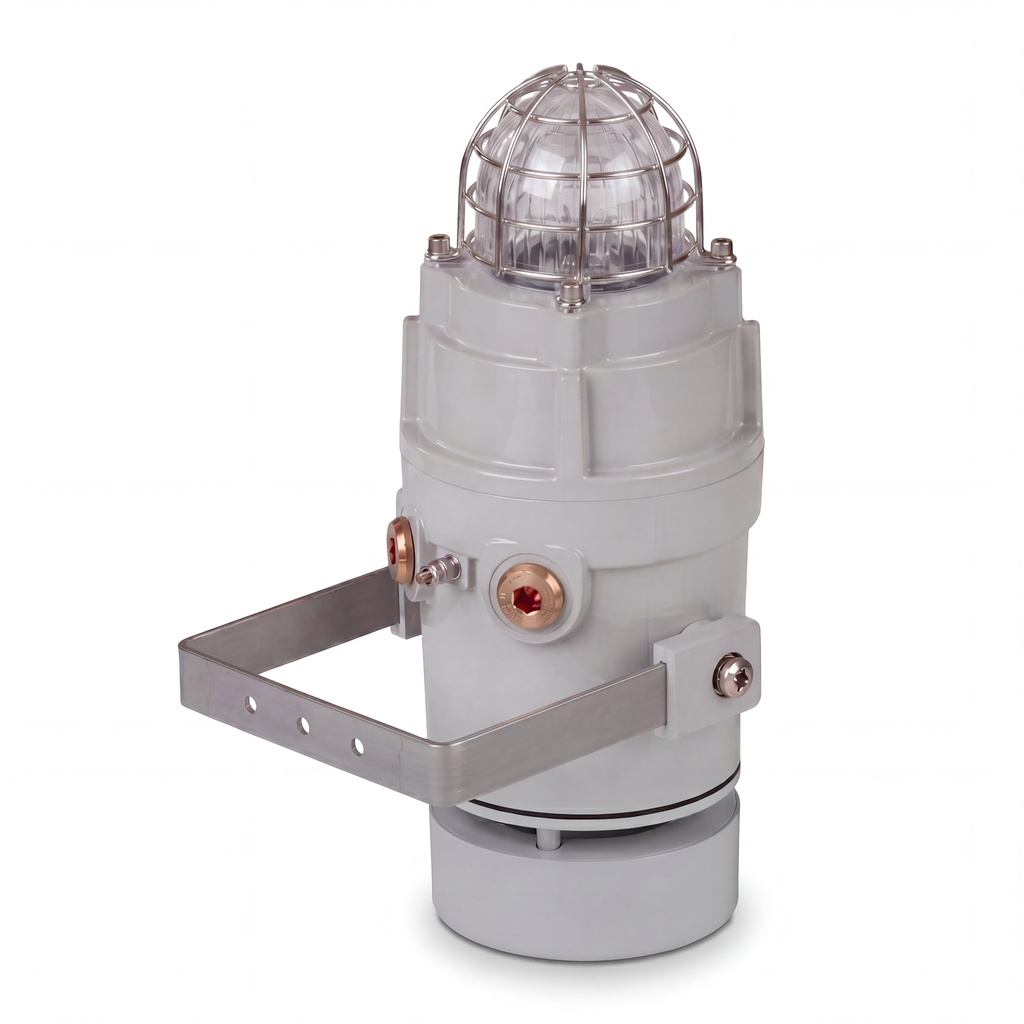

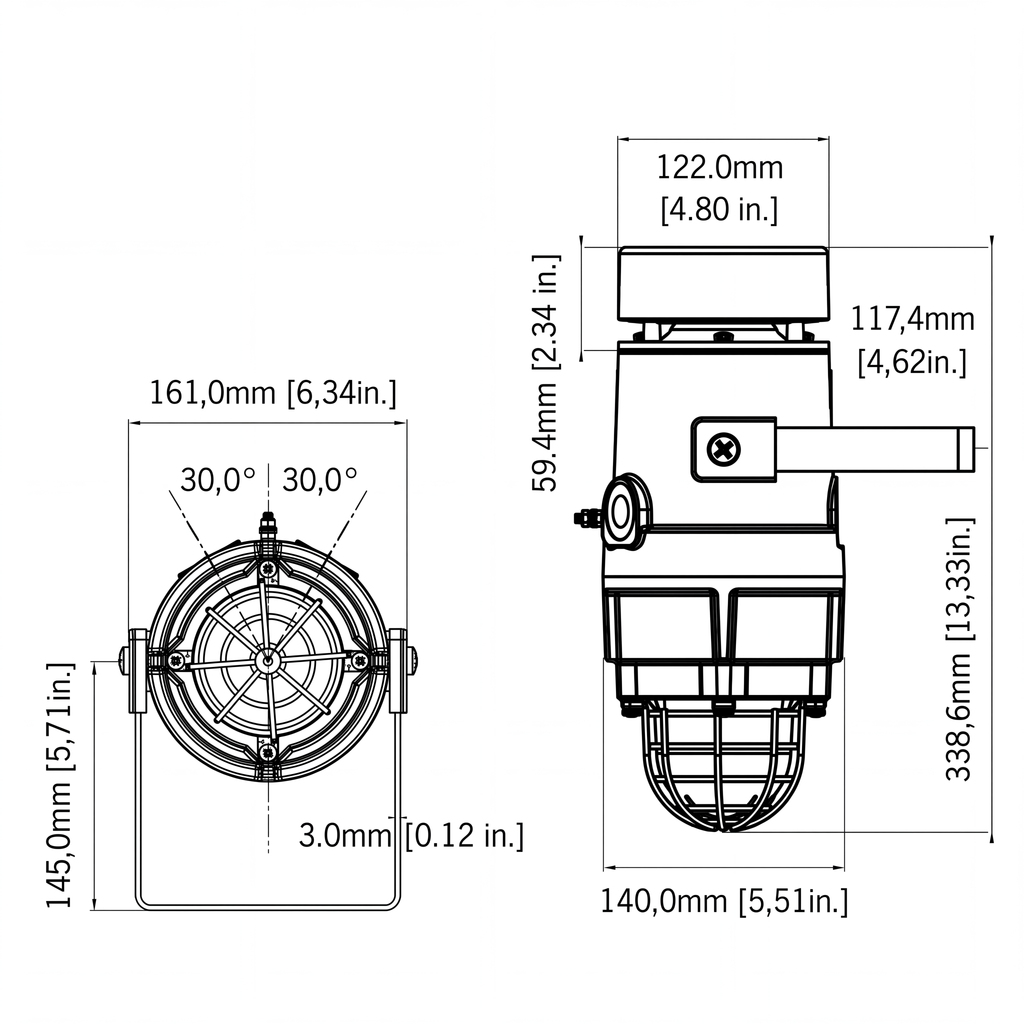

The TOMAR D1xC1X05R is a high output alarm horn sounder with omni-directional radial horn combined with a 500,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensures the D1xC1X05R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications.

The Class I DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The explosion proof horn strobe allows simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently select-able. Each of the 4 stage/channels can be remotely triggered e.g. via an external relay.

Key Features

  • Omni-directional sound output.
  • Marine grade, corrosion proof, LM6 aluminum enclosure
  • Automatic synchronization on multi-beacon & sounder systems.
  • Beacons can be set to ‘flip-flop’ alternating mode with other units on multi-beacon systems.
  • Xenon tubes mechanically secured against shock & vibration
  • Very large termination area.
  • Dual M20 cable entries – adapters available.
  • Stopping plug included.
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • Reverse polarity diode fitted.
  • IP66/67 ingress protection.
  • 120 candela effective light intensity.
  • UV stable PC, field replaceable, color lens filters.

Models

Alarm Sounder Xenon Beacon
Model Voltage Current Voltage Current
BExCS110-012-(lens color) 12 VDC +/- 25% 195mA 10-14 VDC 750mA
BExCS110-024-(lens color) 24 VDC +/-25% 265mA 20-28 VDC 300mA
BExCS110-048-(lens color) 48 VDC +/-25% 130mA 42-54 VDC 180mA
BExCS110-115-(lens color) 115 VAC +/-10% 50Hz/60Hz 110mA +/- 10% 140mA
BExCS110-230-(lens color) 230 VAC +/-10% 50Hz/60Hz 56mA +/- 10% 55mA

Specs

Sounder/Horn Specs

  • Maximum output: 115dB (A) @ 1 meter [106dB (A) @ 10ft/3m]
  • Nominal output: 110dB (A) @ 1m +/- 3dB – Tone 2 [101dB (A) @ 10ft/3m]
  • No. of tones: 64 (UKOOA / PFEER compliant)
  • No. of stages: 4
  • Volume control: Adjustable -12dB (A)
  • Effective range: 125m/410ft @ 1 KHz
  • Supply Voltages: 24Vdc; 115Vac; 230Vac
  • Stage switching:
    • DC units: negative or positive
    • AC units: common supply line

Beacon Specs

  • Energy: 5 Joules (5Ws)
  • Flash rates:
    • Option 1: 1Hz (60 fpm)
    • Option 2: 1.5Hz (90 fpm)
    • Option 3: Double Strike
  • Peak Candela: 500,000 cd – calculated from energy (J)
  • Effective Intensity: 250 cd – calculated from energy (J)
  • Peak Candela: 46,976 cd* – measured ref. to I.E.S.
  • Effective Intensity: 143 cd* – measured ref. to I.E.S.
  • Lens colors: Amber, Blue, Clear, Green, Magenta, Red & Yellow
  • Tube life: Emissions are reduced to 70% after 8 million flashes

General Specs

  • Ingress protection: EN60529: IP66
  • UL50E / NEMA250: 4 / 4X / 3R / 13
  • Enclosure material: Marine grade aluminum LM6 - copper free
  • Chromatid & powder coated – corrosion proof
  • Color: Red (RAL3000), Grey (RAL7038)
  • Cable entries:
    • 1 x 1/2"NPT & 2 x M20 x 1.5mm
    • 1 x 1/2"NPT & 2 x 1/2"NPT
    • 1 x 1/2"NPT & 2 x 3/4"NPT
  • Terminals: 0.5 – 2.5mm² (20-14 AWG)
  • Grounding stud: M5
  • Operating temp:
    • 24Vdc & 115Vac: -40° to +70°C [-40° to +158°F]
    • 230Vac: -40° to +55°C [-40° to +131°F]
  • Storage temp: -50° to +70°C [-58° to +158°F]
  • Relative humidity: 90% at 20°C [68°F]
  • Weight: 4.9kg/10.9lbs

Approvals and Coding

  • Approvals:
    • UL File ref: E230764
    • UL1203 Ed. 5
    • CAN/CSA C22.2 No. 25-1966
    • CSA C22.2 No. 30-M1986
    • CSA C22.2 No. 205-12
    • UL464 Ed. 9
    • UL1638 Ed. 4
  • Coding:
    • A1: Gas version
      • NEC / CEC:
        • Class I Div 1 ABCD T5/T6 Ta -40°C to +70/+55°C
        • Class I Div 2 ABCD T5/T6 Ta -40°C to +70/+55°C
        • Class I Zone 1, 2 IIC T5/T6 Ta -40°C to +70/+55°C
    • D1: Dust version
      • NEC / CEC:
        • Class II Div 1 FG T4/T4A Ta -40°C to +55/+40°C
        • Class II Div 2 FG T4/T4A Ta -40°C to +55/+40°C
        • Class III Div 1 & 2 Zone 20, 21, 22 IIIB T4/T4A Ta -40°C to +55/+40°C
    • Protection concept: Ex d / AEx d

Tone Table

Stage 1 WAV file Frequency Description Stage 2 Stage 3 Stage 4
T 1 Sound 1000 Continuous – PFEER Toxic Gas Any T 2 T 44
T 2 Sound 1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P. Any T 3 T 44
T 3 Sound 1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm Any T 2 T 44
T 4 Sound 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265 Any T 24 T 1
T 5 Sound 544(100mS)/440 (400mS) – NF S 32-001 Any T 19 T 1
T 6 Sound 1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428 Any T 44 T 1
T 7 Sound 500-1500Hz Sweeping 2 sec on 1 sec off – AS4428 Any T 44 T 1
T 8 Sound 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575 Any T 24 T 35
T 9 Sound 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a Any T 34 T 1
T 10 Sound 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a Any T 34 T 1
T 11 Sound 420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal Any T 1 T 8
T 12 Sound 1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal Any T 1 T 8
T 13 Sound 422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal Any T 1 T 8
T 14 Sound 1000/2000 @ 1Hz – Singapore Any T 3 T 35
T 15 Sound 300 Continuous Any T 24 T 35
T 16 Sound 440 Continuous Any T 24 T 35
T 17 Sound 470 Continuous Any T 24 T 35
T 18 Sound 500 Continuous – IMO code 2 (Low) Any T 24 T 35
T 19 Sound 554 Continuous Any T 24 T 35
T 20 Sound 660 Continuous Any T 24 T 35
T 21 Sound 800 Continuous – IMO code 2 (High) Any T 24 T 35
T 22 Sound 1200 Continuous Any T 24 T 35
T 23 Sound 2000 Continuous Any T 3 T 35
T 24 Sound 2400 Continuous Any T 20 T 35
T 25 Sound 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T 44 T 8
T 26 Sound 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T 44 T 8
T 27 Sound 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 44 T 8
T 28 Sound 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T 24 T 8
T 29 Sound 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T 44 T 8
T 30 Sound 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T 24 T 8
T 31 Sound 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T 24 T 8
T 32 Sound 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 33 Sound 800 (0.25s on, 1.00s off) Intermittent Any T 24 T 8
T 34 Sound 800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High) Any T 24 T 8
T 35 Sound 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 36 Sound 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 37 Sound 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 24 T 8
T 38 Sound 363/518 @ 1Hz (0.50s / 0.50s) Alternating Any T 8 T 19
T 39 Sound 450/500 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 40 Sound 554/440 @ 1Hz (0.50s / 0.50s) Alternating Any T 24 T 19
T 41 Sound 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating Any T 8 T 19
T 42 Sound 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating Any T 8 T 19
T 43 Sound 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating Any T 8 T 19
T 44 Sound 800/1000 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 45 Sound 970/800 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 46 Sound 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating Any T 24 T 19
T 47 Sound 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 48 Sound 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping Any T 24 T 12
T 49 Sound 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping Any T 24 T 12
T 50 Sound 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping Any T 24 T 12
T 51 Sound 600/1250 @ 0.125Hz (4s / 4s) Sweeping Any T 24 T 12
T 52 Sound 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 53 Sound 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 54 Sound 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 55 Sound 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 56 Sound 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 57 Sound 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 58 Sound 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 59 Sound 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping Any T 24 T 12
T 60 Sound 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping Any T 24 T 12
T 61 Sound 800Hz Motor Siren Any T 24 T 12
T 62 Sound 1200Hz Motor Siren Any T 24 T 12
T 63 Sound 2400Hz Motor Siren Any T 24 T 12
T 64 Sound Simulated Bell Any T 21 T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
