D1xC2X10R Radial Alarm Horn & Xenon Strobe (1,000,000cd)

PRODUCT OVERVIEW

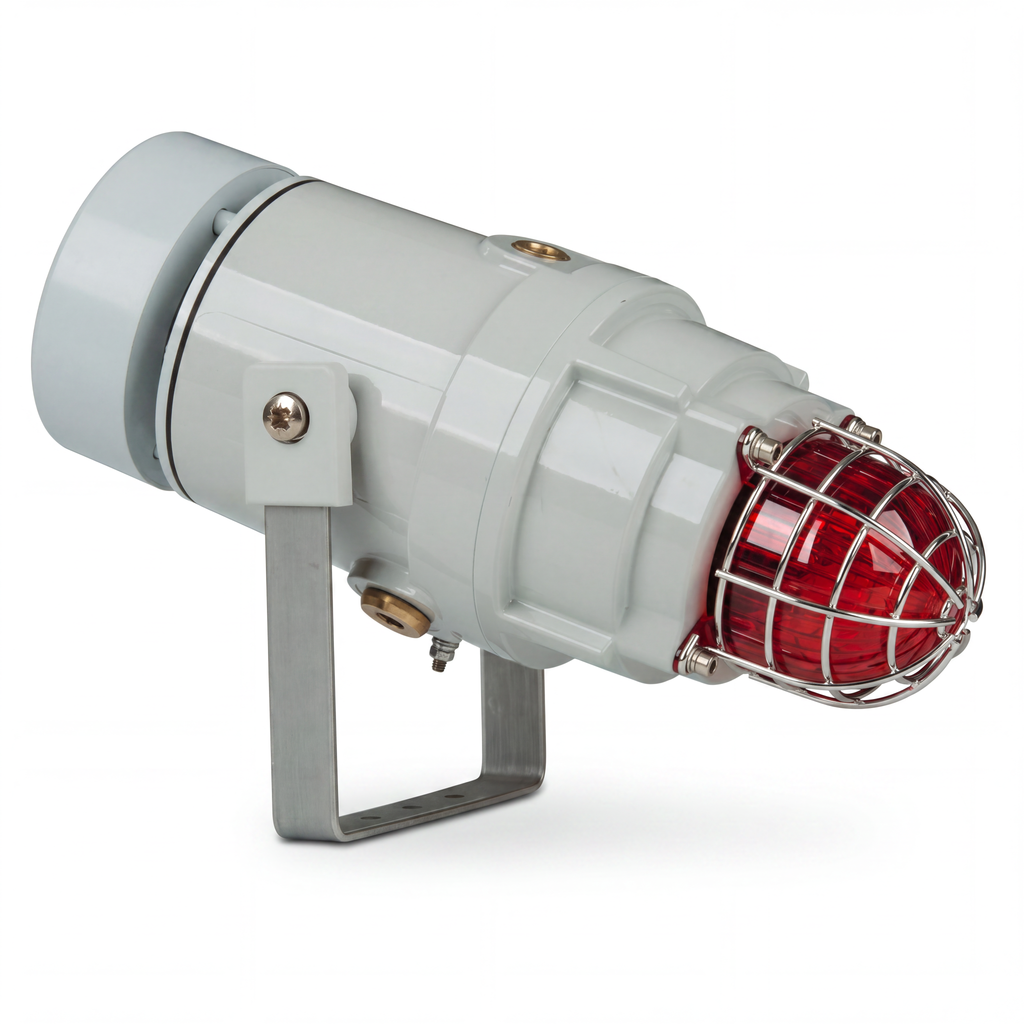

The TOMAR D1xC2X10R is a high output alarm horn sounder with omni-directional radial horn combined with a 1,000,000cd Xenon strobe beacon. The robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensures the D1xC2X10R is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications.

The Class I DC version is approved for public mode fire alarm use (alarm horn) and private mode fire alarm use (strobe beacon).

The explosion proof horn strobe allows simultaneous or independent operation. Featuring 64 first stage/channel alarm sounds, the alarm tone frequencies for the first 2 stages are independently select-able. Each of the 4 stage/channels can be remotely triggered e.g. via an external relay.

Key Features

  • Automatic synchronization on multi sounder systems.
  • User select-able strobe flash rates
  • Ratchet adjustable stainless steel ‘U’ bracket.
  • High output omni-directional alarm horn, up to 118dB (A)
  • Xenon strobe – private mode fire alarm use (Class I version)
  • Alarm horn – public mode fire alarm use (Class I version)
  • 4 remotely select-able alarm stages/channels
  • Positive or negative line stage/channel switching
  • Choice of 64 alarm tone frequencies
  • Compact form factor
  • Robust corrosion proof aluminum enclosure
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations

Models

Alarm Sounder Xenon Beacon Combined
Model Voltage Current Voltage Current Current
D1xC1X05R-024-(lens color) 20-28 VDC 217mA 10-14 VDC 322mA 539mA
D1xC1X05R-115-(lens color) 115 VAC +/-10% 50Hz/60Hz 76mA +/- 10% 129mA 206mA
D1xC1X05R-230-(lens color) 230 VAC +/-10% 50Hz/60Hz 53mA +/- 10% 79mA 132mA

Specs

Sounder/Horn Specs

  • Maximum output: 118dB (A) @ 1 meter [109dB (A) @ 10ft/3m]
  • Nominal output: 112dB (A) @ 1m +/- 3dB – Tone 2 [103dB (A) @10ft/3m]
  • No. of tones: 64 (UKOOA / PFEER compliant)
  • No. of stages: 4
  • Volume control: Adjustable -12dB (A)
  • Effective range: 125m/410ft @ 1 KHz
  • Supply Voltages: 24Vdc; 115Vac; 230Vac
  • Stage switching:
    • DC units: Negative or positive
    • AC units: Common supply line

Beacon Specs

  • Energy: 10 Joules (5Ws)
  • Flash rates:
    • Option 1: 1Hz (60 fpm)
    • Option 2: 1.5Hz (90 fpm)
    • Option 3: Double Strike
  • Peak Candela: 1,000,000 cd – calculated from energy (J)
  • Effective Intensity: 500 cd – calculated from energy (J)
  • Peak Candela: 85,544 cd* – measured ref. to I.E.S.
  • Effective Intensity: 260 cd* – measured ref. to I.E.S.

General Specs

  • Ingress protection: EN60529 IP66
  • UL50E / NEMA250: 4 / 4X / 3R / 13
  • Enclosure material: Marine grade aluminum LM6 - copper free Chromate & powder coated – corrosion proof
  • Color: Red (RAL3000), Grey (RAL7038)
  • Cable entries:
    • 1 x 1/2″NPT & 2 x M20 x 1.5mm
    • 1 x 1/2″NPT & 2 x 1/2″NPT
    • 1 x 1/2″NPT & 2 x 3/4″NPT
  • Terminals: 0.5 – 2.5mm² (20-14 AWG)
  • Grounding stud: M5
  • Operating temp:
    • 24Vdc & 115Vac: -40° to +70°C [-40° to +158°F]
    • 230Vac: -40° to +55°C [-40° to +131°F]
  • Storage temp: -50° to +70°C [-58° to +158°F]
  • Relative humidity: 90% at 20°C [68°F]
  • Weight: 4.9kg/10.9lbs

Tone Table

Stage 1 WAV file Frequency Description Stage 2 Stage 3 Stage 4
T 1 Sound 1000 Continuous – PFEER Toxic Gas Any T 2 T 44
T 2 Sound 1200/500 @ 1Hz Sweeping – DIN / PFEER P.T.A.P. Any T 3 T 44
T 3 Sound 1000 @ 0.5Hz (1s on, 1s off) Intermittent – PFEER Gen. Alarm Any T 2 T 44
T 4 Sound 1.4KH-1.6KHz 1s, 1.6KHz-1.4KHz 0.5s – NF C 48-265 Any T 24 T 1
T 5 Sound 544(100mS)/440 (400mS) – NF S 32-001 Any T 19 T 1
T 6 Sound 1500/500 – (0.5s on , 0.5s off) x3 + 1s gap – AS4428 Any T 44 T 1
T 7 Sound 500-1500Hz Sweeping 2 sec on 1 sec off – AS4428 Any T 44 T 1
T 8 Sound 500/1200Hz @ 0.26Hz(3.3s on, 0.5s off) – NEN 2575 Any T 24 T 35
T 9 Sound 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a Any T 34 T 1
T 10 Sound 1000 (1s on, 1s off)x7 + (7s on, 1s off) – IMO Code 1a Any T 34 T 1
T 11 Sound 420(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal Any T 1 T 8
T 12 Sound 1000(0.5s on, 0.5s off)x3 + 1s gap – ISO 8201 Temporal Any T 1 T 8
T 13 Sound 422/775 – (0.85 on, 0.5 off) x3 + 1s gap – NFPA Temporal Any T 1 T 8
T 14 Sound 1000/2000 @ 1Hz – Singapore Any T 3 T 35
T 15 Sound 300 Continuous Any T 24 T 35
T 16 Sound 440 Continuous Any T 24 T 35
T 17 Sound 470 Continuous Any T 24 T 35
T 18 Sound 500 Continuous – IMO code 2 (Low) Any T 24 T 35
T 19 Sound 554 Continuous Any T 24 T 35
T 20 Sound 660 Continuous Any T 24 T 35
T 21 Sound 800 Continuous – IMO code 2 (High) Any T 24 T 35
T 22 Sound 1200 Continuous Any T 24 T 35
T 23 Sound 2000 Continuous Any T 3 T 35
T 24 Sound 2400 Continuous Any T 20 T 35
T 25 Sound 440 @ 0.83Hz (0.60s on, 0.60s off) Intermittent Any T 44 T 8
T 26 Sound 470 @ 0.9Hz (0.55s on, 0.55s off) Intermittent Any T 44 T 8
T 27 Sound 470 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 44 T 8
T 28 Sound 544 @ 1.14Hz (0.43s on, 0.44s off) Intermittent Any T 24 T 8
T 29 Sound 655 @ 0.875Hz (0.57s on, 0.57s off) Intermittent Any T 44 T 8
T 30 Sound 660 @ 0.28Hz (1.80s on, 1.80s off) Intermittent Any T 24 T 8
T 31 Sound 660 @ 3.3Hz (0.15s on, 0.15s off) Intermittent Any T 24 T 8
T 32 Sound 745 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 33 Sound 800 (0.25s on, 1.00s off) Intermittent Any T 24 T 8
T 34 Sound 800 @ 2Hz (0.25s on, 0.25s off) – IMO code 3.a (High) Any T 24 T 8
T 35 Sound 1000 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 36 Sound 2400 @ 1Hz (0.50s on, 0.50s off) Intermittent Any T 24 T 8
T 37 Sound 2900 @ 5Hz (0.10s on, 0.10s off) Intermittent Any T 24 T 8
T 38 Sound 363/518 @ 1Hz (0.50s / 0.50s) Alternating Any T 8 T 19
T 39 Sound 450/500 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 40 Sound 554/440 @ 1Hz (0.50s / 0.50s) Alternating Any T 24 T 19
T 41 Sound 554/440 @ 0.65Hz (0.76s / 0.76s) Alternating Any T 8 T 19
T 42 Sound 561/760 @ 0.83Hz (0.60s / 0.60s) Alternating Any T 8 T 19
T 43 Sound 780/600 @ 0.96Hz (0.52s / 0.52s) Alternating Any T 8 T 19
T 44 Sound 800/1000 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 45 Sound 970/800 @ 2Hz (0.25s / 0.25s) Alternating Any T 8 T 19
T 46 Sound 800/1000 @ 0.875Hz (0.57s / 0.57s) Alternating Any T 24 T 19
T 47 Sound 2400/2900 @ 2Hz (0.25s / 0.25s) Alternating Any T 24 T 19
T 48 Sound 500/1200 @ 0.3Hz (1.67s / 1.67s) Sweeping Any T 24 T 12
T 49 Sound 560/1055 @ 0.18Hz (2.73s / 2.73s) Sweeping Any T 24 T 12
T 50 Sound 560/1055 @ 3.3Hz (0.15s / 0.15s) Sweeping Any T 24 T 12
T 51 Sound 600/1250 @ 0.125Hz (4s / 4s) Sweeping Any T 24 T 12
T 52 Sound 660/1200 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 53 Sound 800/1000 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 54 Sound 800/1000 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 55 Sound 800/1000 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 56 Sound 2400/2900 @ 7Hz (0.07s / 0.07s) Sweeping Any T 24 T 12
T 57 Sound 2400/2900 @ 1Hz (0.50s / 0.50s) Sweeping Any T 24 T 12
T 58 Sound 2400/2900 @ 50Hz (0.01s / 0.01s) Sweeping Any T 24 T 12
T 59 Sound 2500/3000 @ 2Hz (0.25s / 0.25s) Sweeping Any T 24 T 12
T 60 Sound 2500/3000 @ 7.7Hz (0.65s / 0.65s) Sweeping Any T 24 T 12
T 61 Sound 800Hz Motor Siren Any T 24 T 12
T 62 Sound 1200Hz Motor Siren Any T 24 T 12
T 63 Sound 2400Hz Motor Siren Any T 24 T 12
T 64 Sound Simulated Bell Any T 21 T 12
For Stage 2 any Stage 1 alarm tone sound can be selected.
Country specific or custom tone configurations and alarm frequencies are available upon request.
