D1xS2F–High Output Alarm Sounder | Re-entrant Flare Horn

PRODUCT OVERVIEW

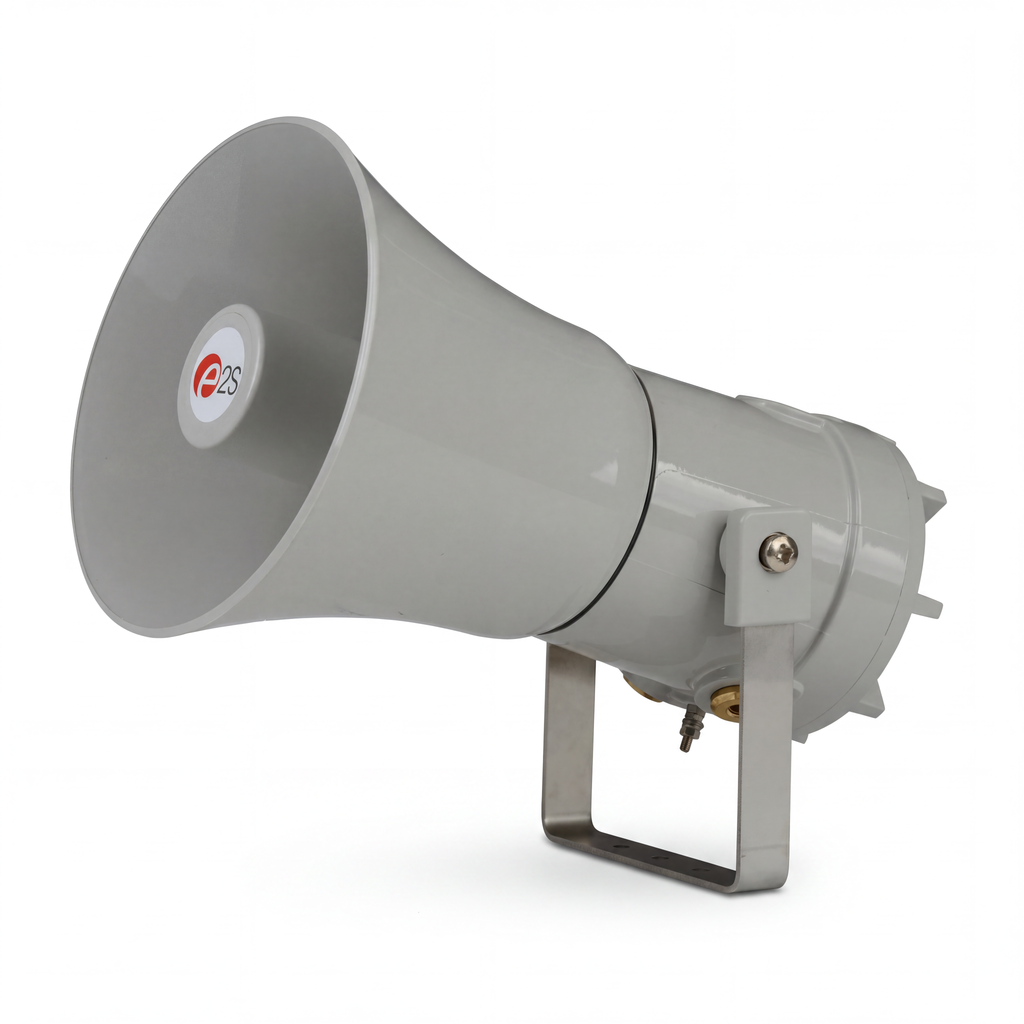

TOMAR Electronics 125dB (A) alarm horn. The D1xS2F is a high output alarm sounder with re-entrant flare horn. Low current consumption and high SPL in a robust Type 4/4X, IP66 marine grade, corrosion proof aluminum enclosure ensure the D1xS2F is suitable for all Class I & II Division 1, Zone 1 & 20 explosion proof signaling applications.

The 24V DC version is approved for public mode fire alarm use and the 110-240V DC version for general signaling use. Featuring 64 alarm tone sounds, each of the available 4 stage/channels can be remotely triggered. Approved for gas groups ABCD in Class I Division 1, Class I Zone 1 IIC and for dust groups FG in Class II Division 1, Zone 20 IIIB environments. The threaded flameproof joint simplifies both installation and routine maintenance.

Key Features

• High output, up to 125dB(A)
• Public mode fire alarm use
• 4 remotely select-able alarm stages/channels
• Positive or negative line stage/channel switching
• Choice of 64 alarm tone frequencies
• Automatic synchronization on multi-sounder system
• Continuously rated
• Compact form factor
• Robust corrosion proof aluminum enclosure
• Stainless steel fixings
• Triple cable entries
• Duplicate cable terminations (in & out for daisy-chain installations)
• Available with custom tone configurations and frequencies

Models

Specs

• Maximum output: 125dB (A) @ 1 meter [116dB (A) @ 10ft/3m]
• Nominal output: 121dB (A) @ 1m +/- 3dB – Tone 4 [112dB (A) @ 10ft/3m]
• No. of tones: 64 (UKOOA / PFEER compliant)
• No. of stages: 4
• Volume control: Adjustable -12dB (A)
• Effective range: 656m/410ft @ 1 KHz
• Voltages DC: 24V dc (10-30V dc)
• Voltages AC: 110-240V ac 50/60Hz
• Stage switching: DC units negative or positive. AC units common supply line
• Ingress protection: EN60529 IP66
• UL50E / NEMA250: 4 / 4X / 3R / 13
• Enclosure material: Marine grade aluminum LM6- copper free Chromate & powder coated – corrosion proof
• Color: Red (RAL3000), Grey (RAL7038)
• Cable entries: 1 x 1/2″NPT & 2 x M20 x 1.5mm, 1 x 1/2″NPT & 2 x 1/2″NPT, 1 x 1/2″NPT & 2 x 3/4″NPT
• Terminals: 0.5 – 2.5mm² (20-14 AWG)
• Grounding stud: M5
• Operating temp: -40° to +70°C [-40° to +158°F]
• Storage temp: -50° to +70°C [-58° to +158°F]
• Relative humidity: 90% at 20°C [68°F]
• Weight: 4.3kg/9.5lbs

Approvals and Coding

• Approvals:
  • UL File ref: E230764
  • UL1203 Ed. 5
  • CAN/CSA C22.2 No. 25-1966
  • CSA C22.2 No. 30-M1986
  • CSA C22.2 No. 205-12
  • UL1480 Ed. 6
• Commercial and professional use
• Coding:
  • A1: Gas version
  • NEC / CEC:
    • Class I Div 1 ABCD T6 Ta -40°C to +70°C
    • Class I Div 2 ABCD T6 Ta -40°C to +70°C
    • Class I Zone 1, 2 IIC T6 Ta -40°C to +70°C
  • D1: Dust version
  • NEC / CEC:
    • Class II Div 1 FG T6 Ta -40°C to +70°C
    • Class II Div 2 FG T6 Ta -40°C to +70°C
    • Class III Div 1 & 2
    • Zone 20, 21, 22 IIIB Ta -40°C to +70°C
  • Protection concept: Ex d / AEx d
