PRODUCT OVERVIEW

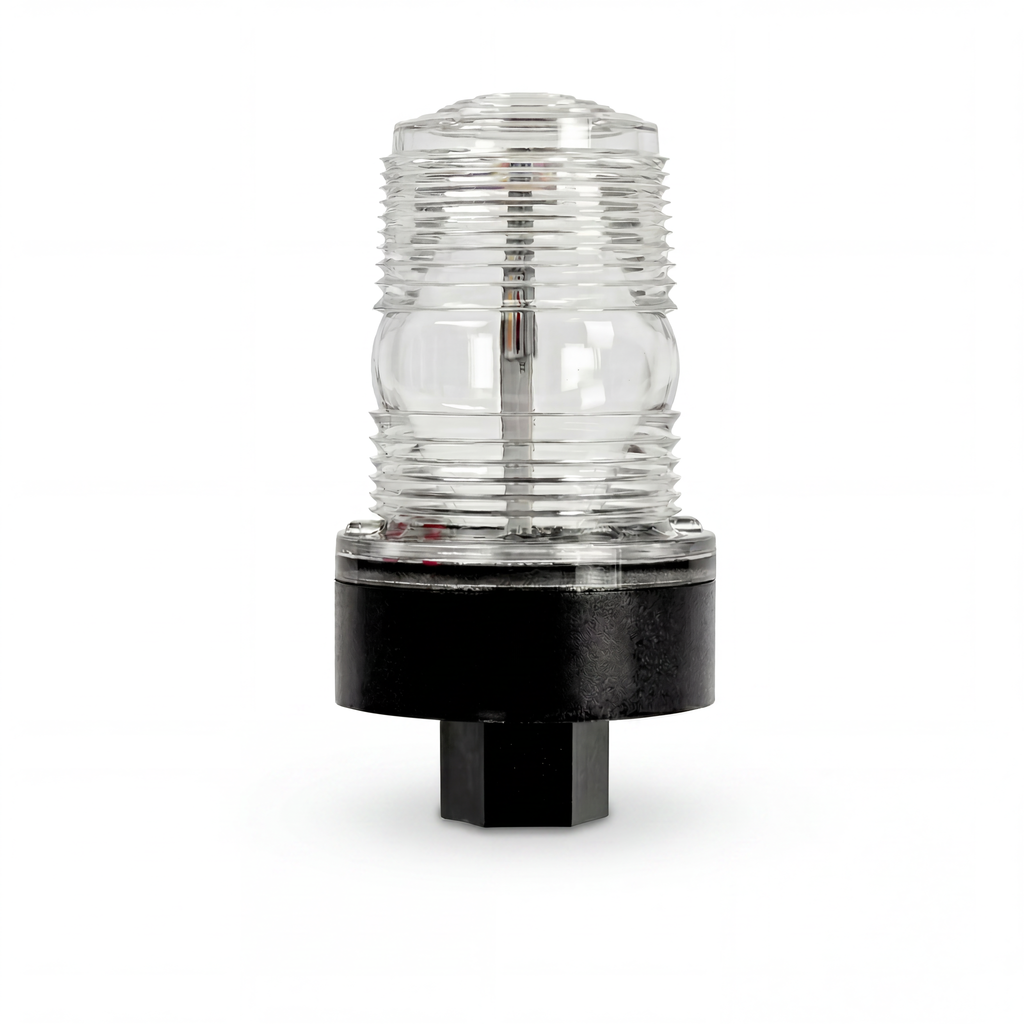

The MicroLED® is a compact, flashing, 360-degree warning beacon designed for applications where space is at a premium, including lift trucks and material handling equipment. Its small footprint and bolt-pattern compatibility with the TOMAR MICROSTROBE® make it a seamless drop-in solution for space-constrained installations.
The Dual-Color MicroLED® features two sets of three high-power LEDs, one Amber and one Red, delivering both the increased light output and enhanced vertical light spread of the High-Output MicroLED® platform, with the added flexibility of selectable warning colors. Independent VDC triggers allow each color to operate on its own, or Red can be activated progressively to override Amber, making it easy to adapt to changing warning requirements on the fly.
Built for demanding environments, the MicroLED® uses a tough Lexan lens spun-welded to the base for a complete moisture seal that prevents internal condensation. It is UL Recognized and manufactured to NEMA 4X specifications, and like the TOMAR MICROSTROBE®, operates over a wide input voltage range of 12-80 VDC. Vibration-resistant construction and long-life LED technology are backed by a full five-year warranty.
Key Features
- Utilizes TOMAR’s High-Output MicroLED® use optical technology for increased vertical light spread.
- Spun-welded lens makes our MicroLED® durable for whatever you throw at it!
- The MicroLED® is designed, engineered, and assembled in our energy star manufacturing plant in Gilbert, Arizona.
- Uses TOMAR’s Dual-Color LED technology for selectable Amber or Red warning.
- Neobe ® Flashing Technology.
- 12-80 VDC input voltage
- 1/2″ Female Pipe Mount, 1/2″ Male Thread Mount, and surface/flange mount available (see product options).
- Manufactured to NEMA 4X Standards for ingress protection and corrosion resistance.
- UL Recognized.
- 5-year TOMAR warranty.
Potential uses for the MicroLED®-Dual Color Beacon
- Forklift Trucks
- Material Handling Equipment
- Farming Equipment/Tractors
- Mining Equipment
- Specialized industry specific equipment

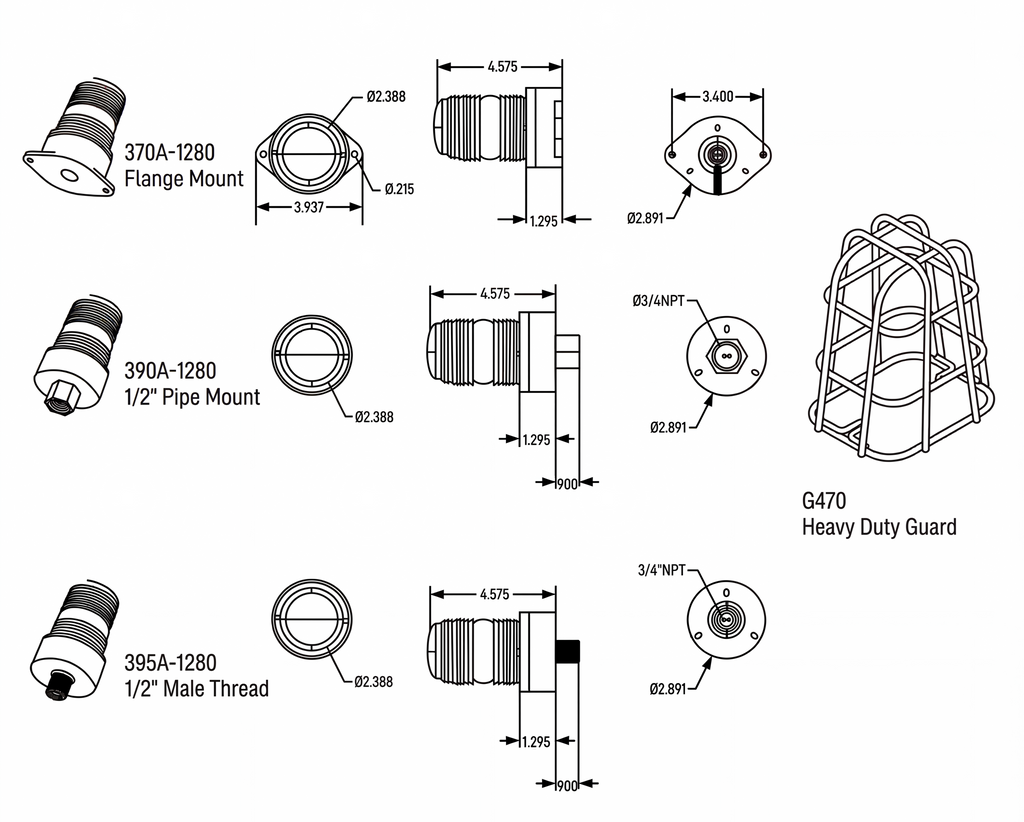

MicroLED®-Dual Color Product Options
| Model | Description | Voltage |

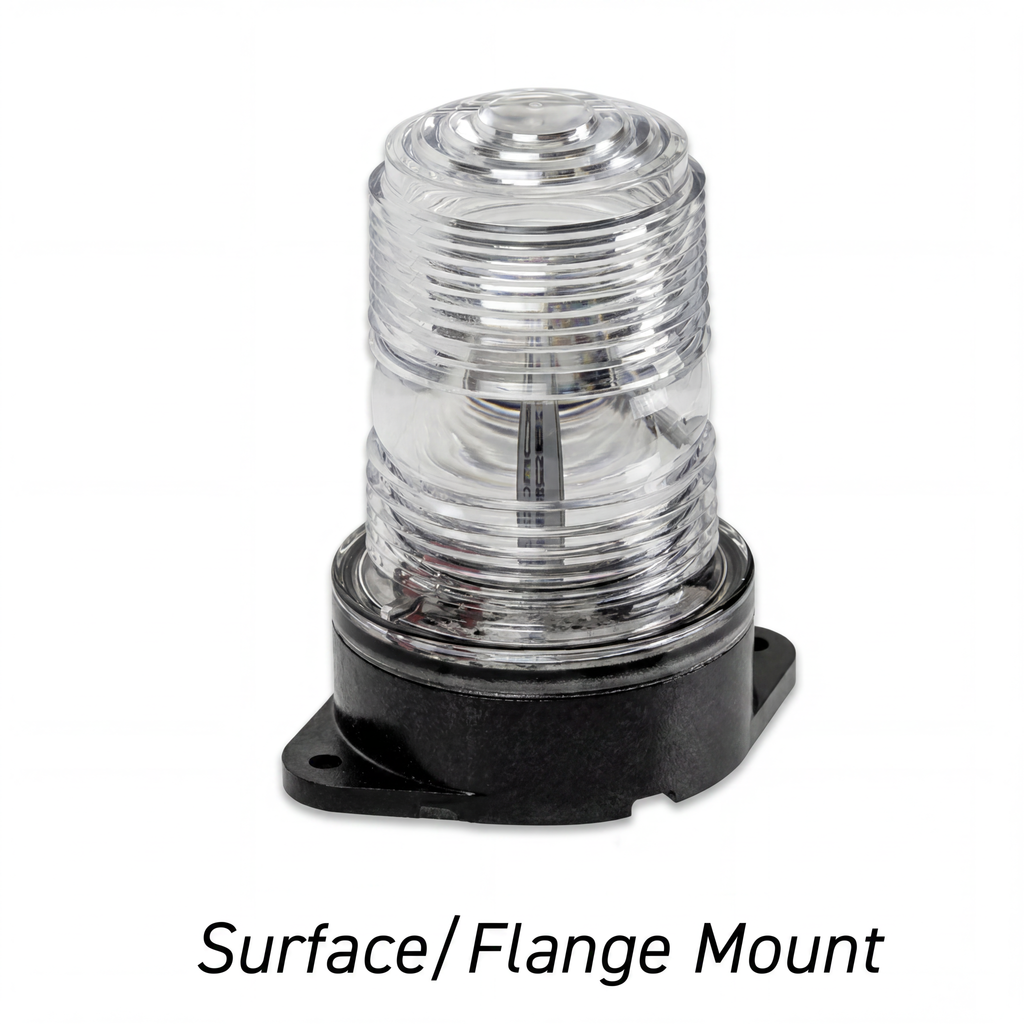

| 370D-1280-AR | Surface Flange Mount | 12-80 VDC |

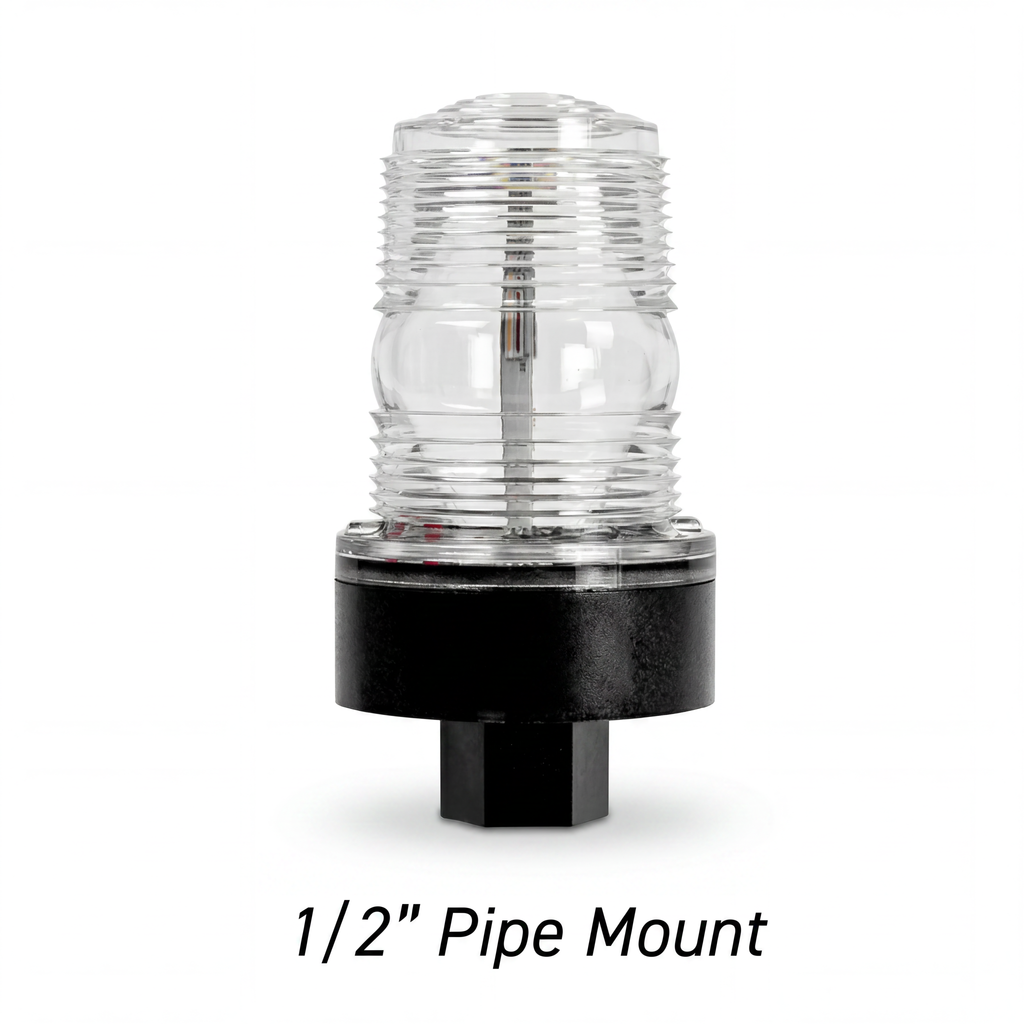

| 390D-1280-AR | 1/2” Pipe Mount | 12-80 VDC |

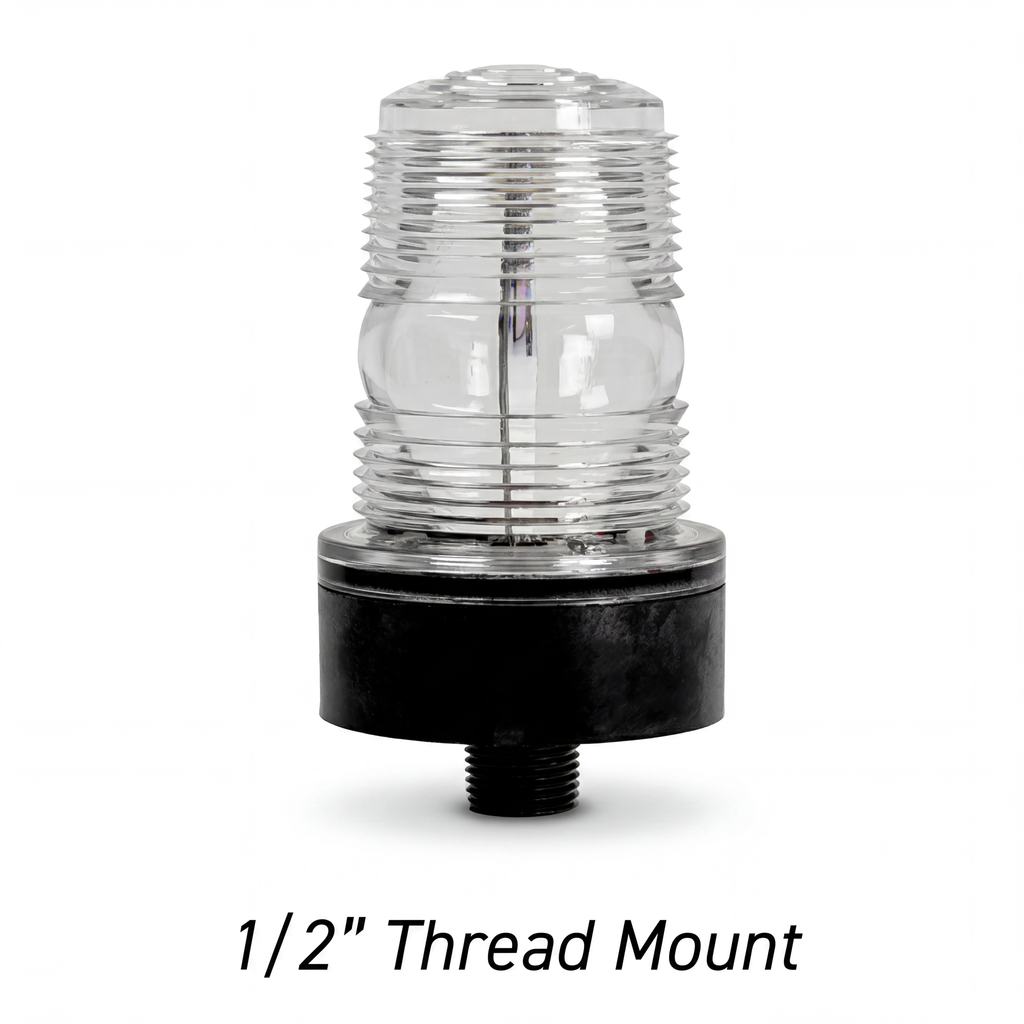

| 395D-1280-AR | 1/2” Thread Mount | 12-80 VDC |
MicroLED® Specifications
- 12-80 VDC
- 40° C to +65° C
- NEMA 4X
- UL583
-
RED FLASH PATTERN
- Flash Rate (FPM): 107 Quadrulplets FPM
- Flash – Period (mS): 560mS
- Flash – On Time (mS): 240mS
- Flash – Pulses (mS): (4) 25mS-On, 55mS-Off
-
RED Average Current (mA)
- 12VDC: 71
- 24VDC: 37
- 36VDC: 27
- 48VDC: 23
- 80VDC: 19
-
AMBER FLASH PATTERN
- Flash Rate (FPM): 75 Septuplets FPM
- Flash – Period (mS): 800mS
- Flash – On Time (mS): 245mS
- Flash – Pulses (mS): (7) 25mS-On, 55mS-Off
-
Amber Average Current (mA)
- 12VDC: 65
- 24VDC: 42
- 36VDC: 28
- 48VDC: 24
- 80VDC: 20
Architect and Engineer Specifications
The LED warning light shall be TOMAR model 370D, 390D, 395D or approved equal. The light source shall consist of 6 high-powered LED’s producing a 360° light beam spread. The lens and base material shall consist of Lexan® or equal polycarbonate material. The lens shall be spun welded to the base to completely seal out moisture and prevent intermal condensation. the voltage range shall be 12 - 80 VDC, and operating temperature range of -40° C to 60° C. The device shall be UL Recognized and NEMA 4X rated.
Helpful Links
FAQ's
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturers fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT
