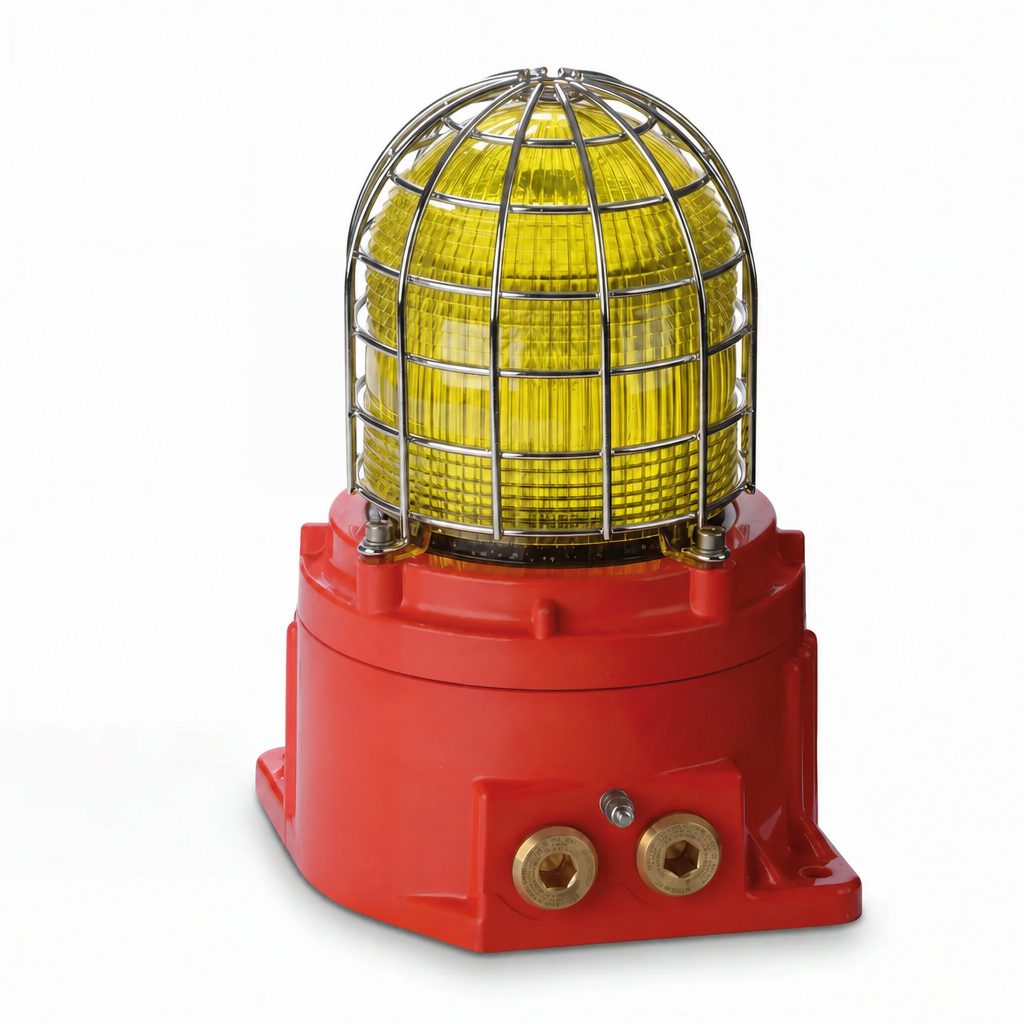

GNExB2X15 Xenon Strobe Beacon (15 Joules)

  • SKU:
  • Regular price MSRP:
  • YOUR PRICE:

PRODUCT OVERVIEW

TOMAR Electronics GNExB2X15 is an IECEx & ATEX approved explosion proof 15 Joule Xenon beacon. The robust IP66 corrosion proof GRP enclosure and extended temperature range ensures the GNExB2X15 is suitable for all Zone 1, 2, 21 & 22 hazardous location signaling applications.

The GNExB2X15 beacon produces over 666cd effective – a very high output Xenon strobe flash as required for efficient signaling over greater distances and in high ambient light. The optically enhanced field replaceable color filter optimizes the strobe output and is constructed from UV stable PC. The GRP enclosure features a threaded flame path, triple cable entries and a large termination area – all of which significantly reduce installation time.

Key Features

  • Robust, corrosion proof GRP (glass reinforced polyester) enclosure
  • Ingress protection IP66
  • Automatic synchronization on multi-beacon systems
  • Choice of three flash rates1Hz, 1.5Hz and double flash
  • User replaceable Xenon tube mechanically secured against shock &
  • vibration
  • Glass lens & Stainless Steel guard
  • UV stable PC field replaceable lens color filter
  • Stainless steel fixings
  • Triple cable entries
  • Duplicate cable terminations (in & out for daisy-chain installations)

Specs

  • Energy: 15 Joules (10Ws)
  • Flash rate: 1Hz (60 fpm), 1.5Hz (90fpm) & double flash
  • Peak Candela (calculated from energy): 1,500,000 cd
  • Eff. Intensity (calculated from energy): 750 cd
  • Peak Candela (measured ref to I.E.S): 114,854 cd
  • Eff. Intensity (measured ref to I.E.S): 666.92 cd
  • Lens colors: Amber, Blue, Clear, Green, Magenta, Red & Yellow
  • Voltages DC: 24vdc; 48Vdc
  • Voltages AC: 115Vac; 230Vac
  • Ingress protection: IP66
  • Enclosure material: UV stable GRP (glass reinforced polyester)
  • Color: Natural Red – can be provided in alternative colors
  • Cable entries: 3 x M20 ISO (2 stopping plugs incl.)
  • Adaptors to M25, 1/2″ & 3/4″ NPT can be specified
  • Terminals: 0.5 – 2.5mm² (20-14 AWG)
  • Enclosure volume: <2 liters
  • Line monitoring: Blocking diode included
  • EOL Min. Resistance: 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
  • Tube life: Emissions are reduced to 70% after 8 million flashes
  • Temperature range: -50° to +70°C (-58°F to +158°F)
  • Weight: 3.5kg/7.7lbs

Models

Model Description Voltage Current
GNExB2X15-024-(lens color) 15 Joule strobe 20-28 VDC 822mA
GNExB2X15-048-(lens color) 15 Joule strobe 42-54 VDC 342mA
GNExB2X15-115-(lens color) 15 Joule strobe 50Hz/60Hz 110-125 VAC 328mA
GNExB2X15-230-(lens color) 15 Joule strobe 50Hz/60Hz 220-240 VAC 168mA

Approvals and Coding

Approvals

  • IECEx KEM 10.0002X
  • IEC 60079-0
  • IEC 60079-1
  • IEC 60079-31 (2011)
  • IEC 60079-31 (2007-4)
  • IEC 60079-31 (2013)
  • ATEX KEMA 00ATEX2006X
  • EN 60079-0
  • EN 60079-1
  • EN 60079-31 (2012 + A11)
  • EN 60079-31 (2007)
  • EN 60079-31 (2014)
  • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109

Coding

  • II 2G Ex db IIC Gb T6 Ta -50°C to +55°C
  • II 2G Ex db IIC Gb T5 Ta -50°C to +70°C
  • II 2D Ex tb IIIC Db T95°C Ta -50°C to +70°C
