PRODUCT OVERVIEW

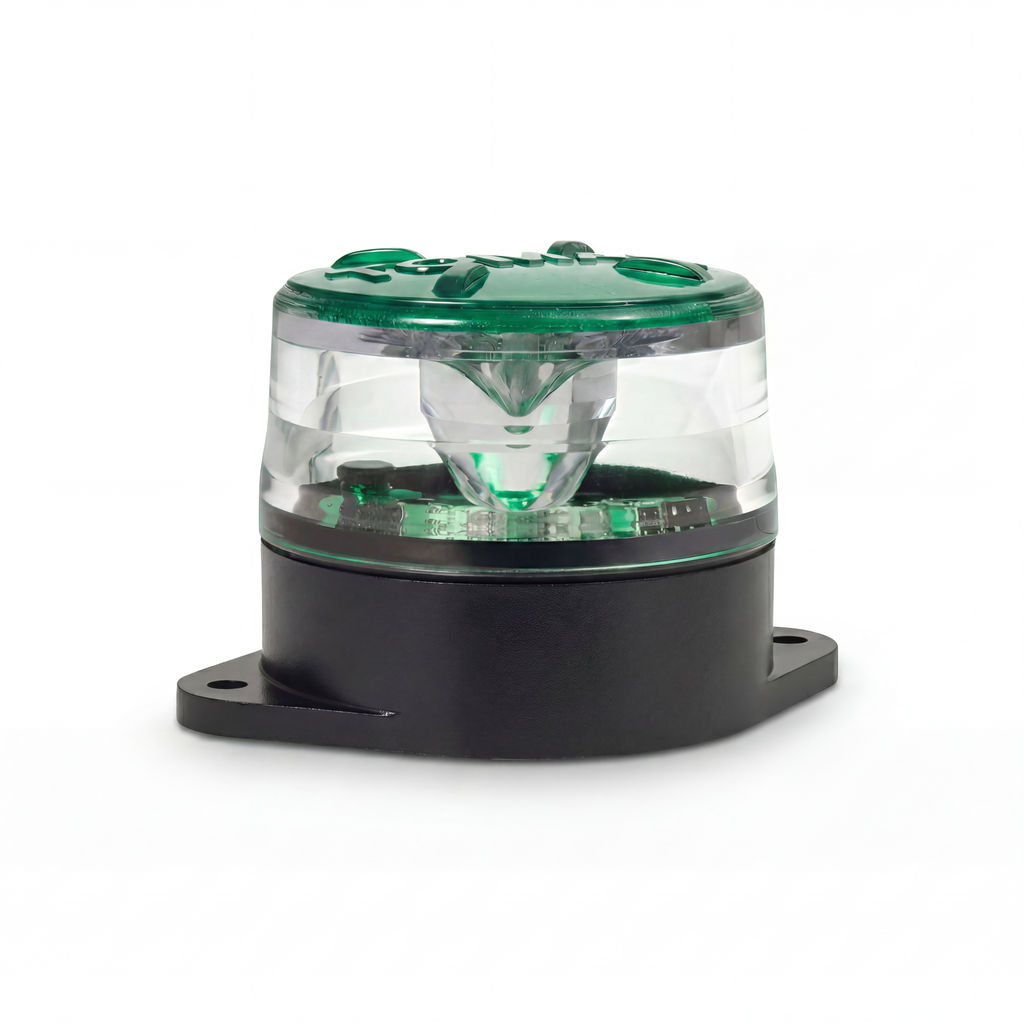

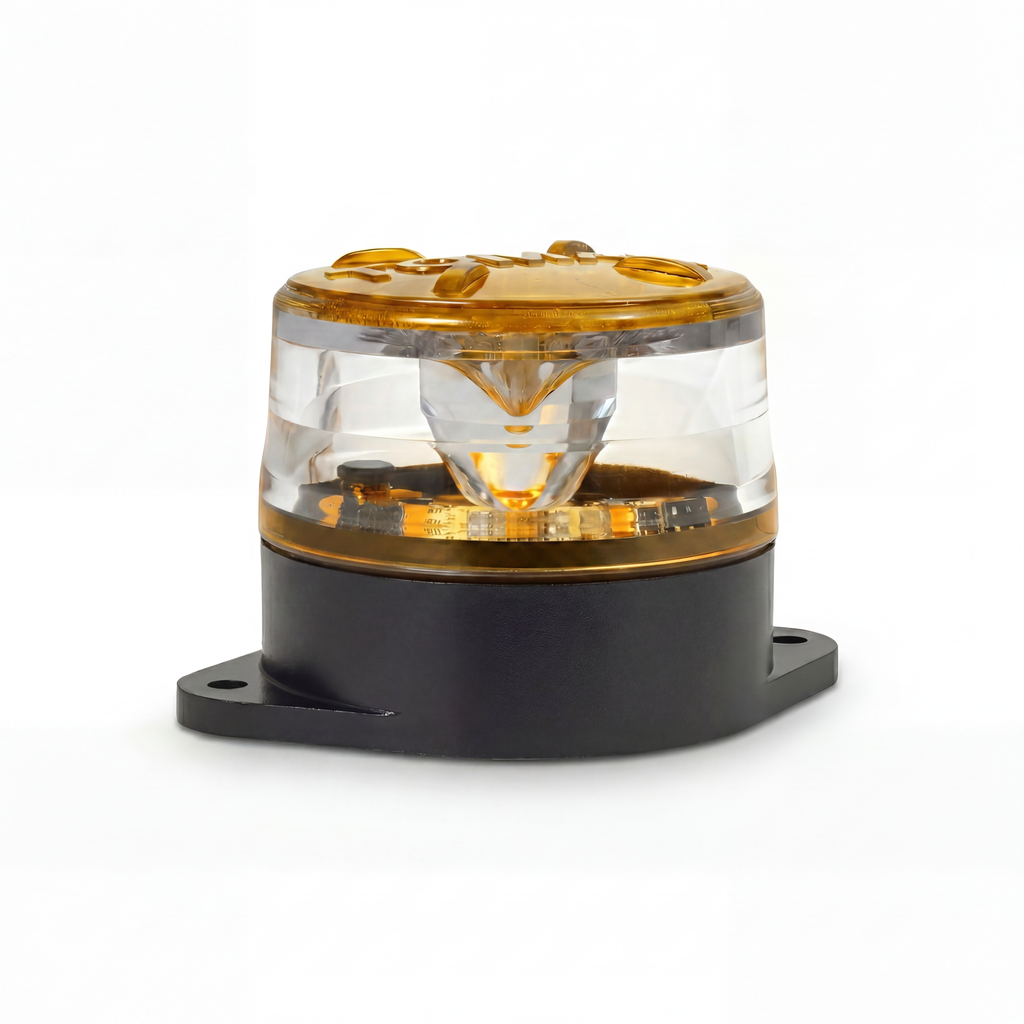

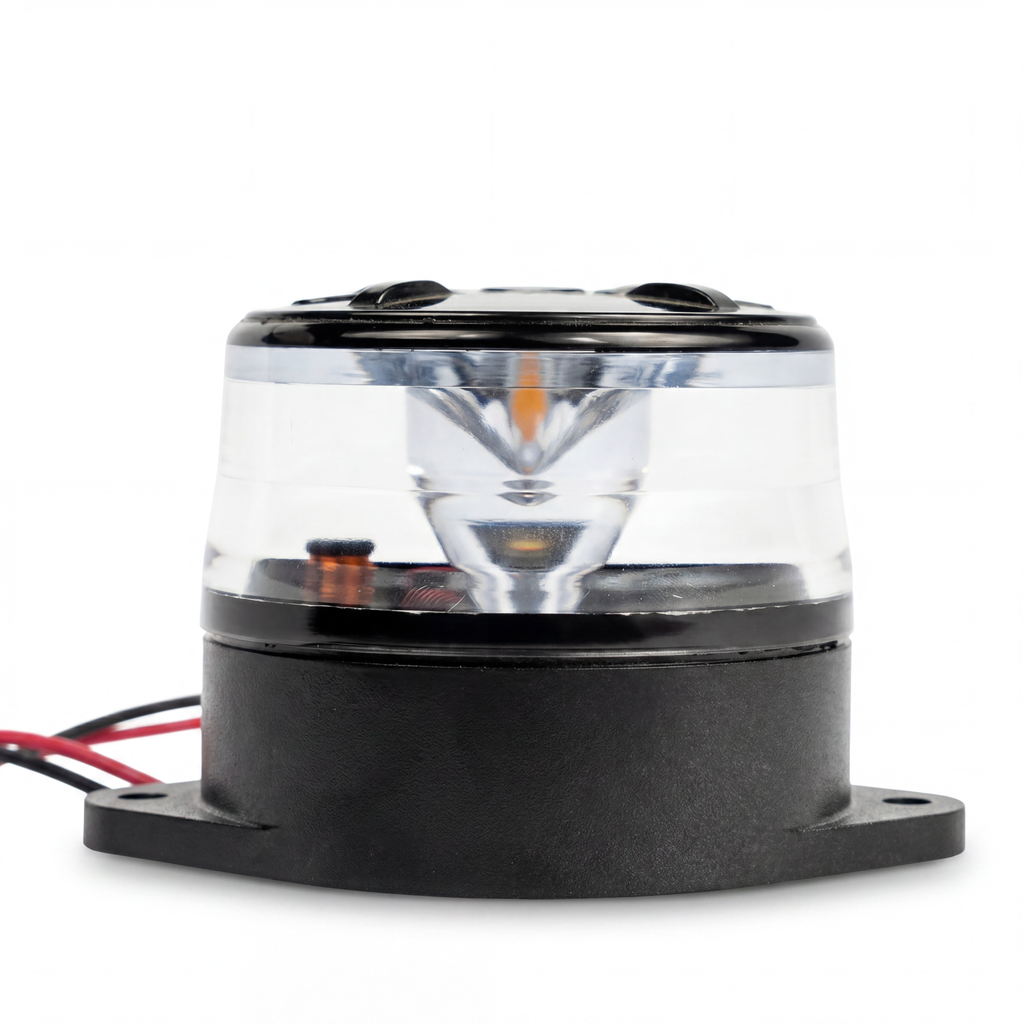

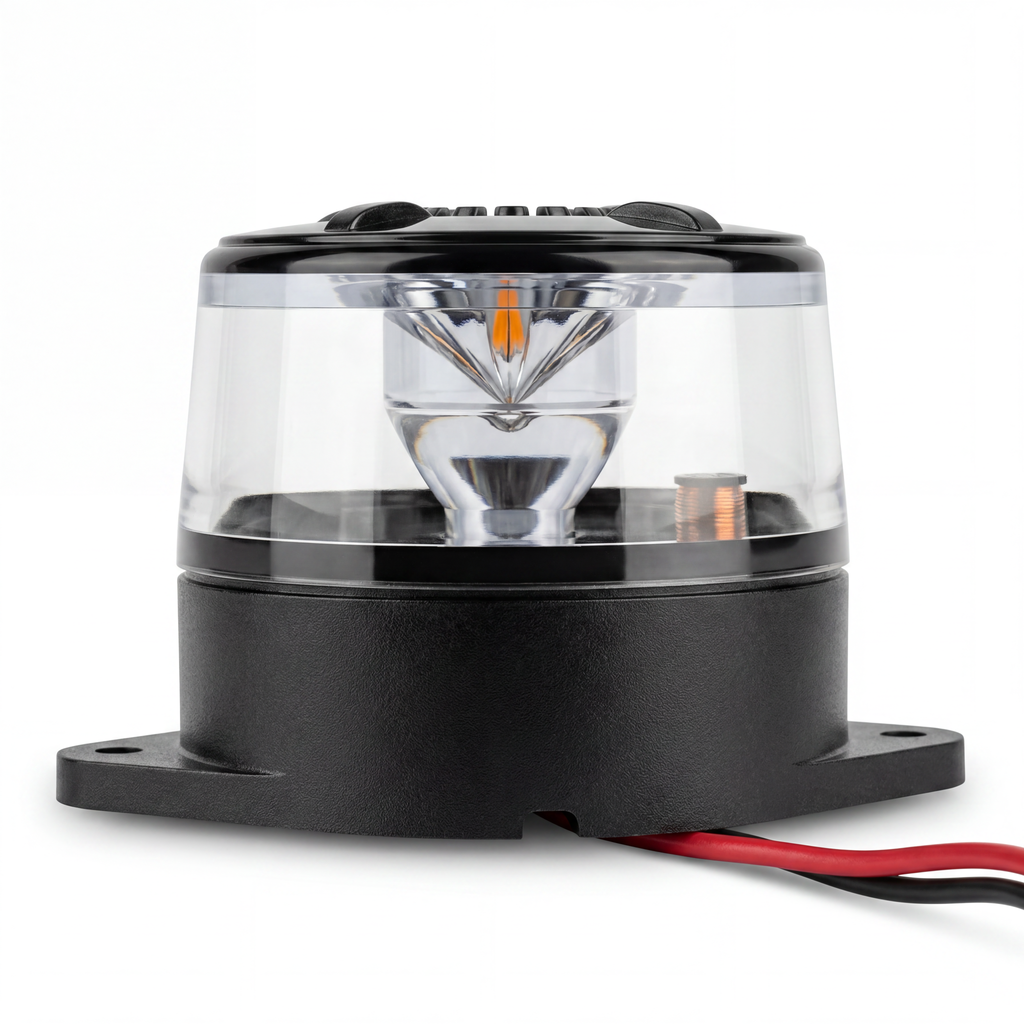

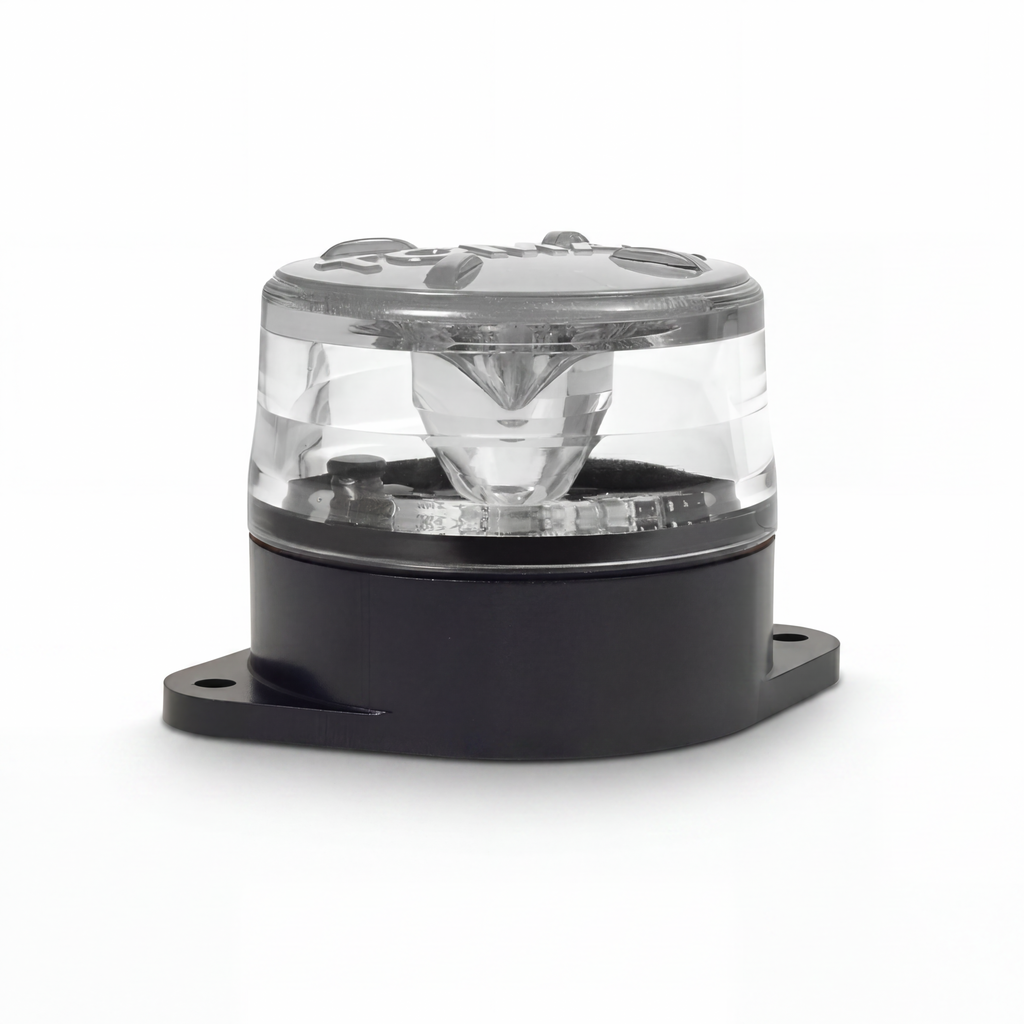

The TOMAR MicroLERT™ is an ultra-compact LED warning beacon engineered for industrial environments demanding reliable, high-visibility alerts. Unlike traditional signal lights, MicroLERT is purpose-built to fully harness the power of modern LED technology. Its unique inverted cone lens design projects brilliant 360-degree visibility, while its rugged, sealed Lexan housing meets NEMA 4X and UL standards for performance in the harshest conditions. Available in five LED colors, with both flashing and steady-burn options, the MicroLERT is a durable, energy-efficient solution for safety-critical operations.
Durable Industrial Construction
The tough Lexan lens is spun welded to the base to completely seal out moisture. The MicroLERT is UL listed and manufactured to NEMA 4X specifications. It is available in five LED colors (amber, blue, green, red, and white); and in steady-burn or flashing models.
The MicroLERT will operate over a wide AC and DC input voltage ranges. The DC version is designed to operate from 10-100 VDC and the AC version from 85-265 VAC. The MicroLERT is guaranteed against factory defects for a full 5 years.
Key Features
- 5-year warranty
- High power LED
- NEMA 4X
- UL Listed
- Wide AC and DC input voltage
- Lexan lens
- Steady-on or Flashing

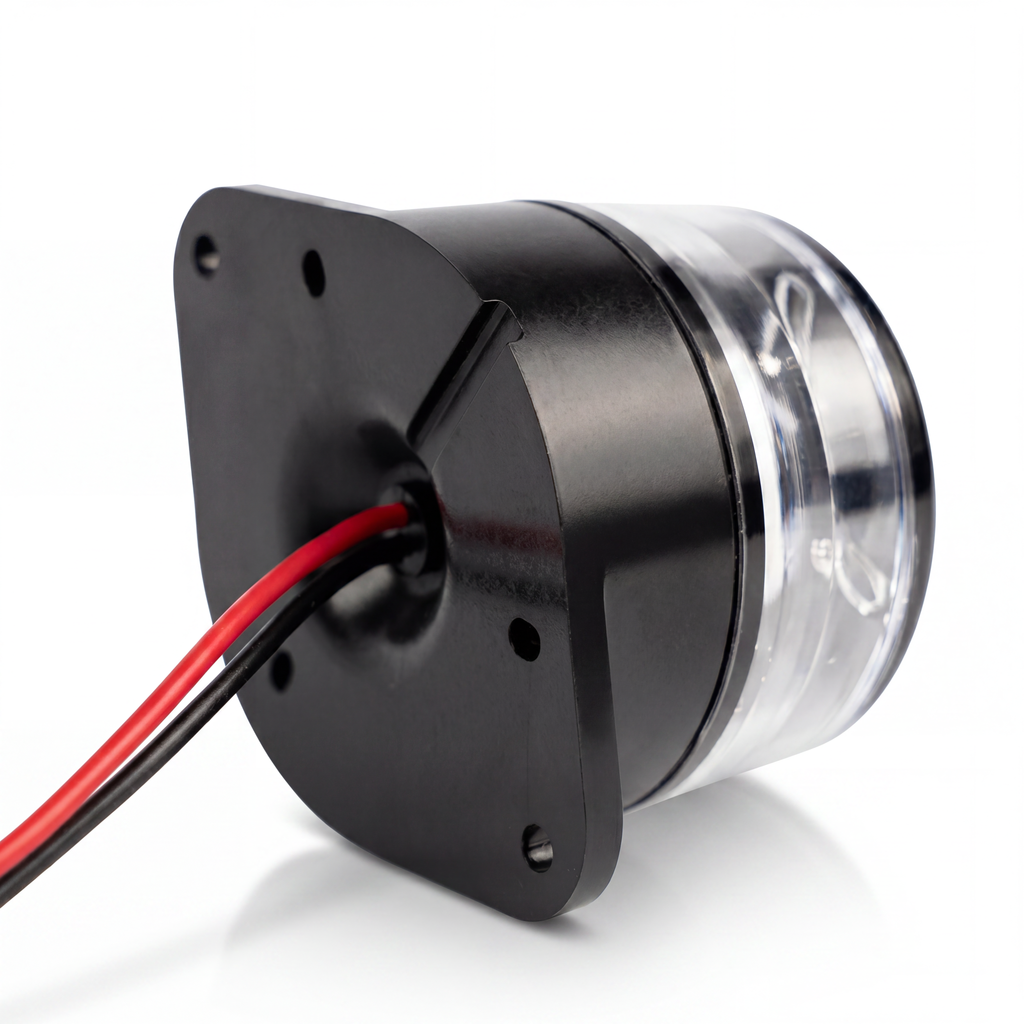

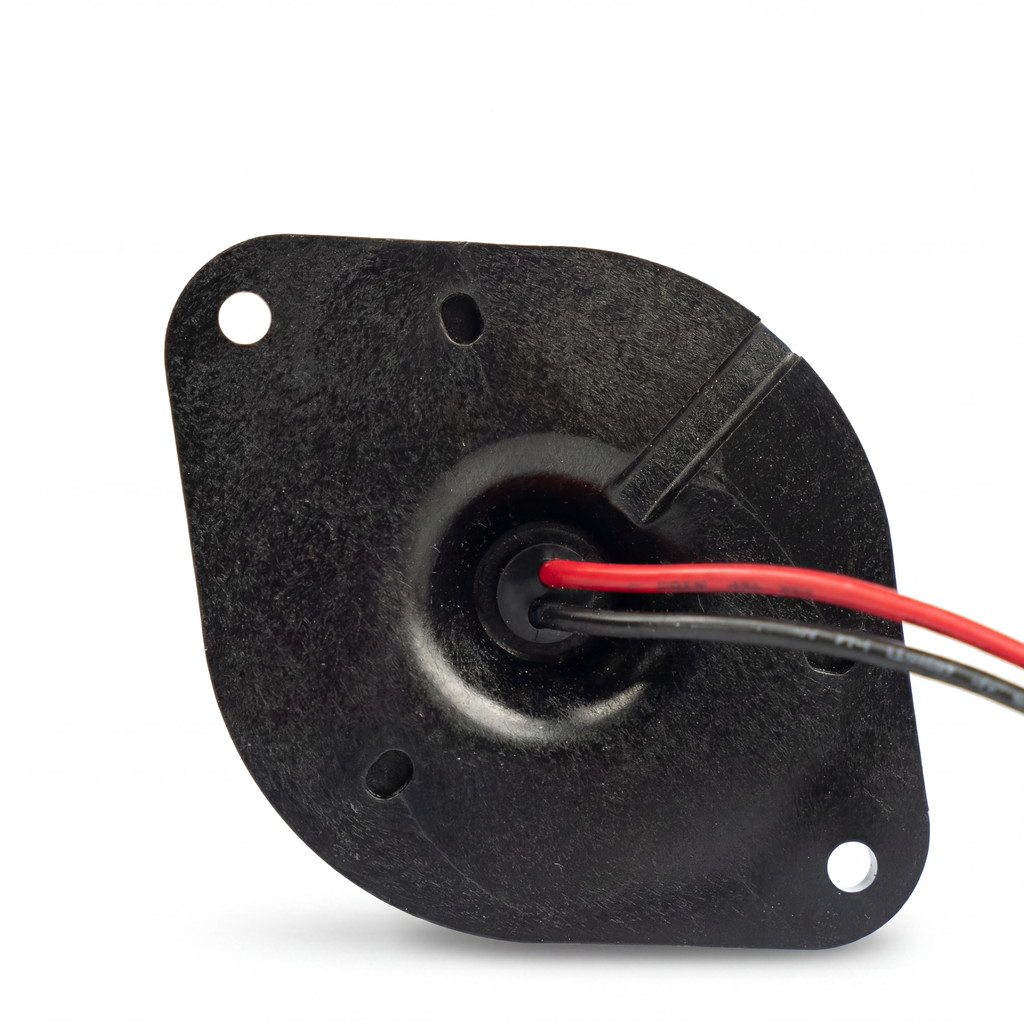

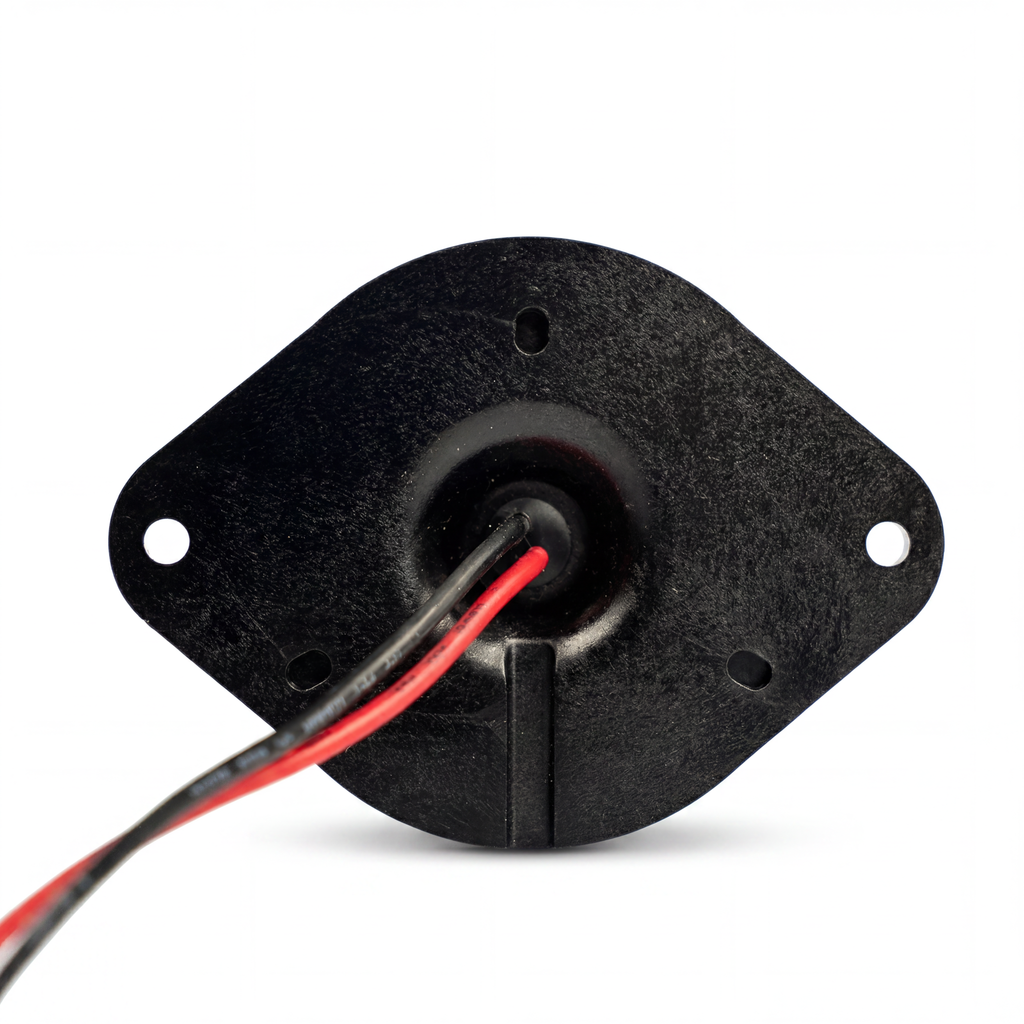

- Surface, Pipe, or Thread mounts
- Sealed construction – NEMA 6P capable
- 5 LED colors – Amber, Blue, Red, Green, and White
- Top blackout cap
Specs
- Lamp Type: LED
- Flash Rate: 75 NEOBE® flashes per minute – each flash containing 7 rapid bursts of light (approximately 560 ms “on-time” and 240 ms “off-time”)
-
Voltage and Amperage:
- 200 mA @ 24 VDC Flashing; 420 mA Steady-burn
- 040 mA @ 120 VAC Flashing; 085 mA Steady-burn
- 020 mA @ 240 VAC Flashing; 045 mA Steady-burn
- Operating Temperature: -40 to 85°C
MicroLERT Models
| Model | Description | Voltage |

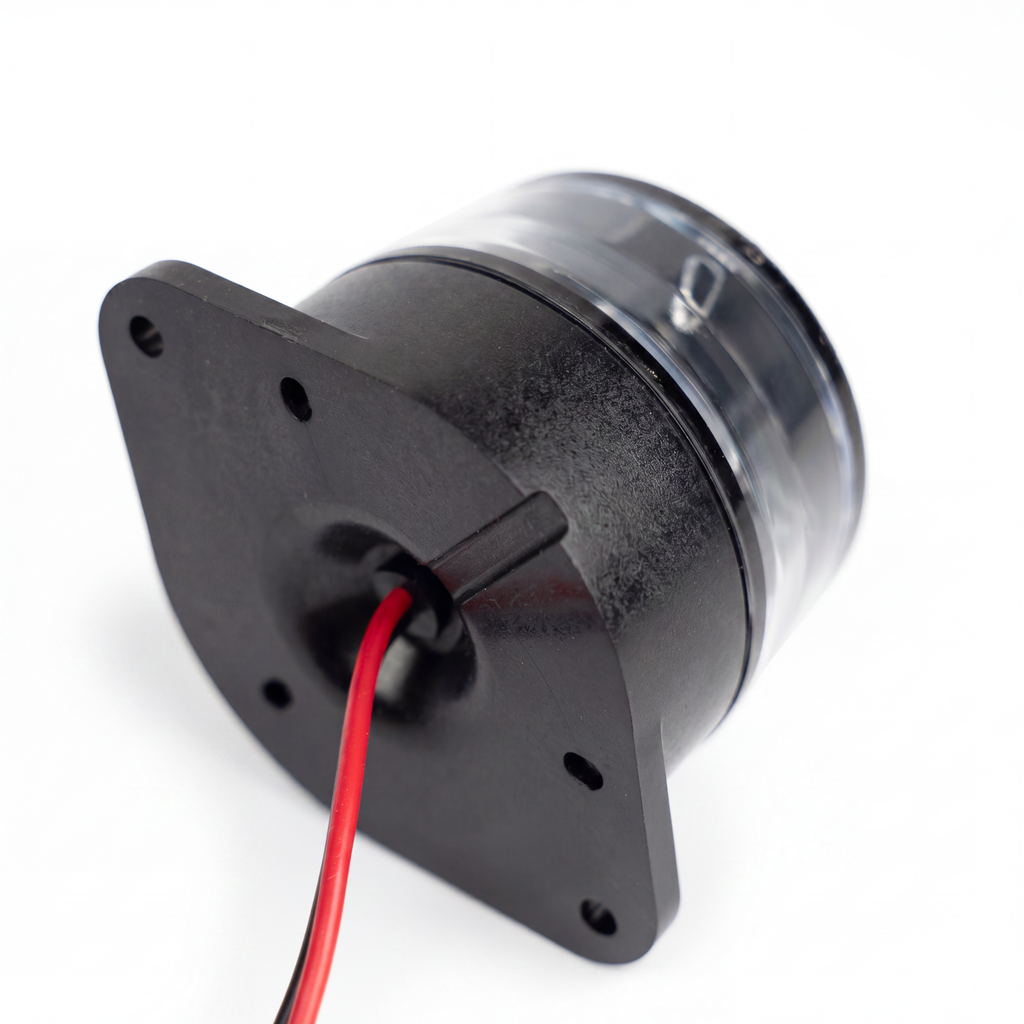

| 270LF-12-80 | Flashing Flange Mount | 12-80 VDC |
| 270LF-120-240 | Flashing Flange Mount | 120-240 VAC |
| 270LS-12-80 | Steady-On Flange Mount | 12-80 VDC |
| 270LS-120-240 | Steady-On Flange Mount | 120-240 VAC |
| 290LF-12-80 | Flashing ½” Pipe Mount | 12-80 VDC |
| 290LF-120-240 | Flashing ½” Pipe Mount | 120-240 VAC |
| 290LS-12-80 | Steady-On ½” Pipe Mount | 12-80 VDC |
| 290LS-120-240 | Steady-On ½” Pipe Mount | 120-240 VAC |
| 295LF-12-80 | Flashing ½” Thread Mount | 12-80 VDC |
| 295LF-120-240 | Flashing ½” Thread Mount | 120-240 VAC |
| 295LS-12-80 | Steady-On ½” Thread Mount | 12-80 VDC |
| 295LS-120-240 | Steady-On ½” Thread Mount | 120-240 VAC |
Helpful Links
3D STEP FILES
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturer's fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light.
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT.
