High-Bay Luminaire

PRODUCT OVERVIEW

Now you can finally take advantage of LED’s promised benefits in high-temperature environments. TOMAR’s T-Lux (TLUX) TLB96 LED luminaire is the best choice for selecting a fixture to deliver full LED brightness with long-lasting, purpose-built performance.

Our High-Bay Luminaires were engineered from the ground up to withstand the high ambient temperatures in steel mills, glass plants, and similar severe environments.

The T-Lux TLB96 LED High-Bay Luminaire Family is a no compromise replacement for 400 to 1000 watt MH and HPS fixtures. It offers a range of fixtures with an industry leading combination of lumen output, lumen maintenance, and efficacy while reducing power consumption 25% to 70%. A cast aluminum chassis and efficient thermal design removes heat from 96CREE LEDs allowing full brightness operation over -40C to +75C ambient temperature. The field replaceable 90%+ efficient power supply contains no aluminum electrolytic capacitors to wear out prematurely.

Key Features

• Available in 25,500 lumen, 80 lm/watt (standard) and 35,000 lumen 110+ lm/watt (high efficacy) models
• Replace 400 – 1000 MH high bay with 25 to 70% reduction in power usage and higher average lumen output
• Available up-light option to illuminate ceiling
• Field replaceable power supply with no aluminum electrolytic capacitors
• Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
• 10 Year TOMAR Warranty

Light output /Specs

• Fixture output: 25,500 lumens (80 lm/W efficacy) or 35,000 lumens (110 lm/watt)
• Lumen maintenance (L70) calculated and reported per TM-21-11:
• Standard models (80lm/W):
• 25C – 137,000 hours calculated, >100,000 hours reported
• 50C – 108,000 hours calculated, >100,000 hours reported
• 75C – 65,200 hours calculated, 65,200 hours reported
• High Efficacy models (110lm/W):
• 25C – 814,000 hours calculated, >72,600 hours reported
• 50C – 332,000 hours calculated, >72,600 hours reported
• 75C – 157,000 hours calculated, >72,600 hours reported
• CRI and CCT: >70 – 5000K (neutral White)
• Available in wide and narrow output patterns
• Dimming Option:
• No dimming
• 0-10 V dimming, minimum light output 10% of maximum
• Multi-Hot dimming, 33%, 67%, and 100% light output

Helpful Links

• TOMAR High-Bay Luminaire Info
• IS0598 install instructions

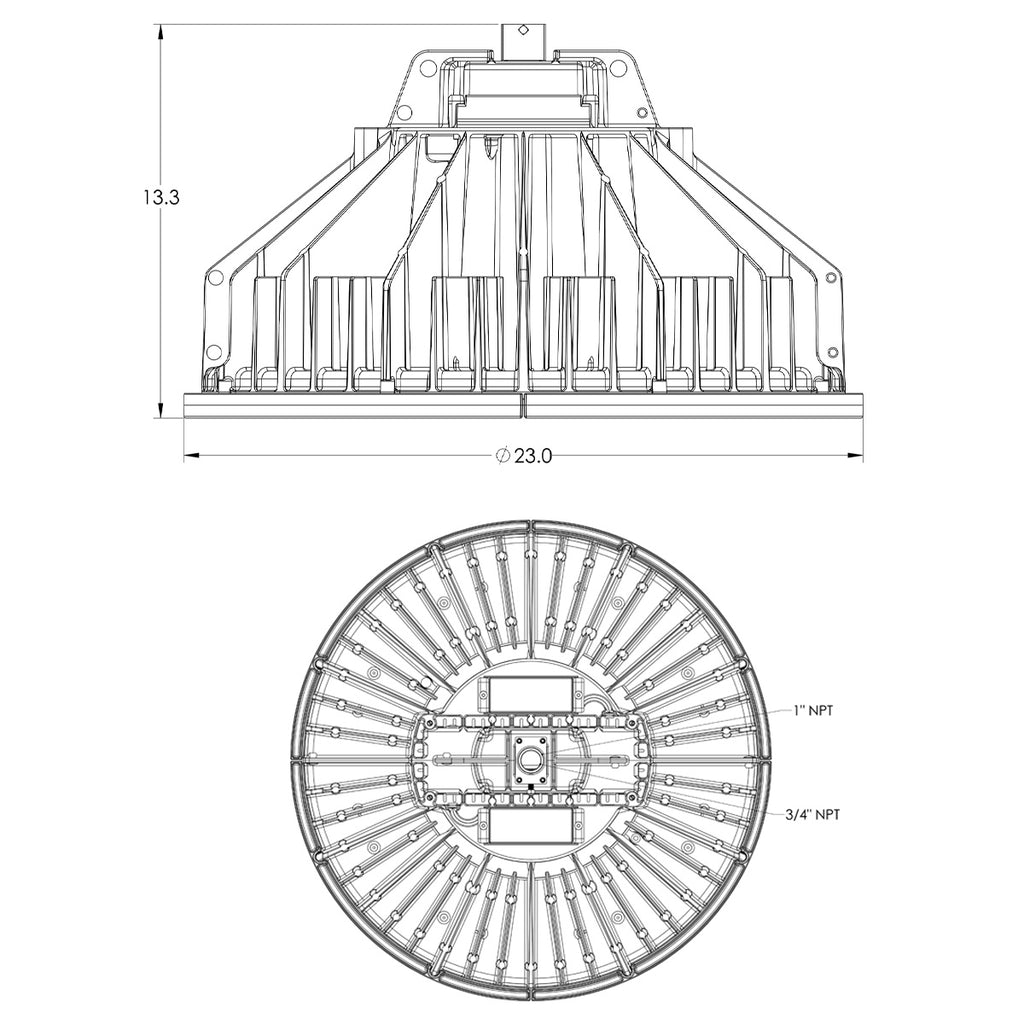

• TLB96 Mechanical Drawing
