PRODUCT OVERVIEW

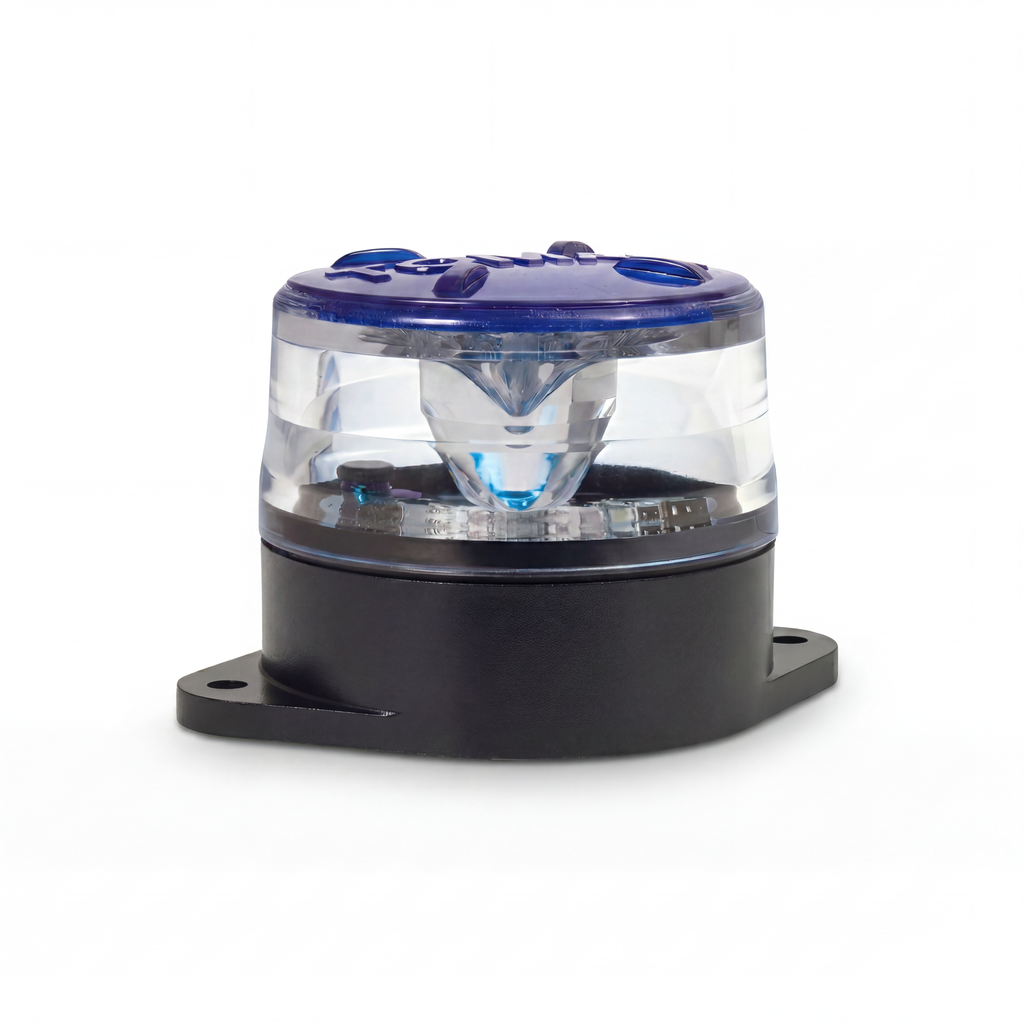

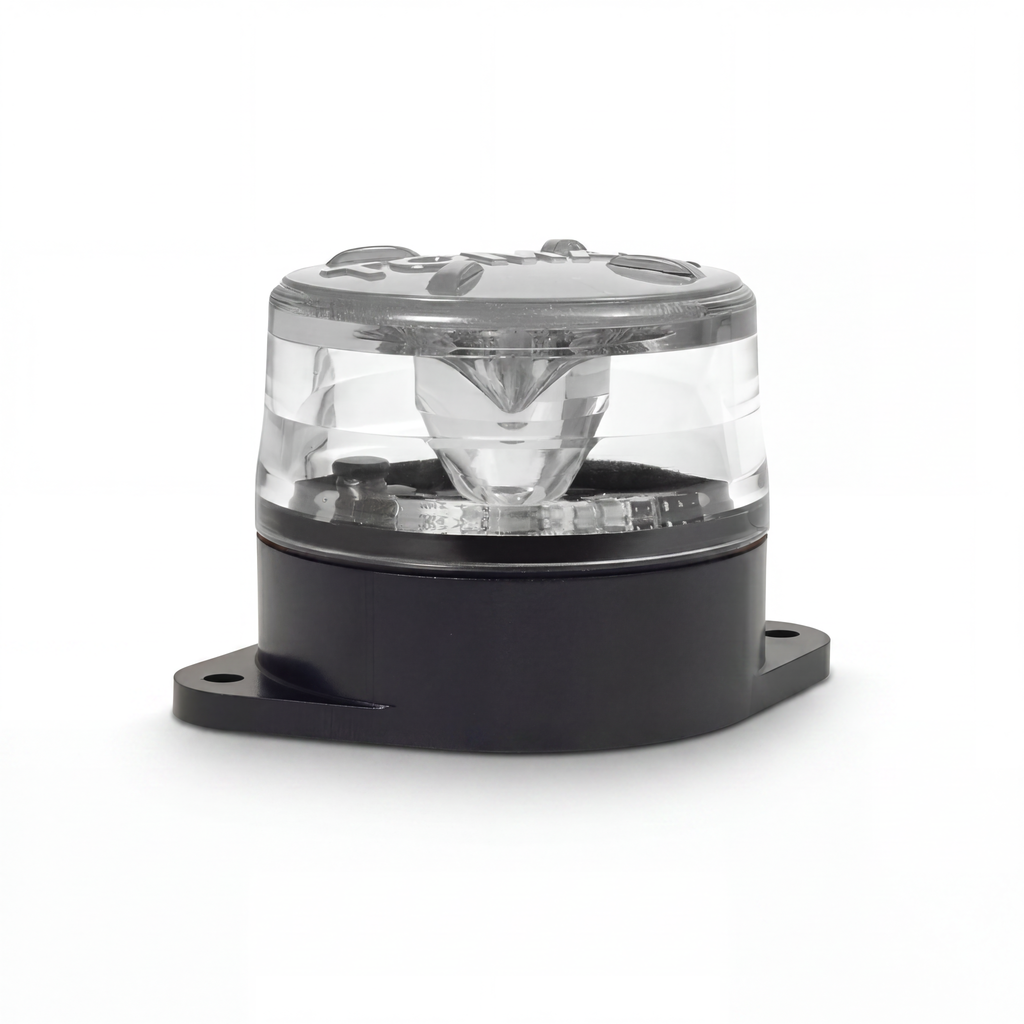

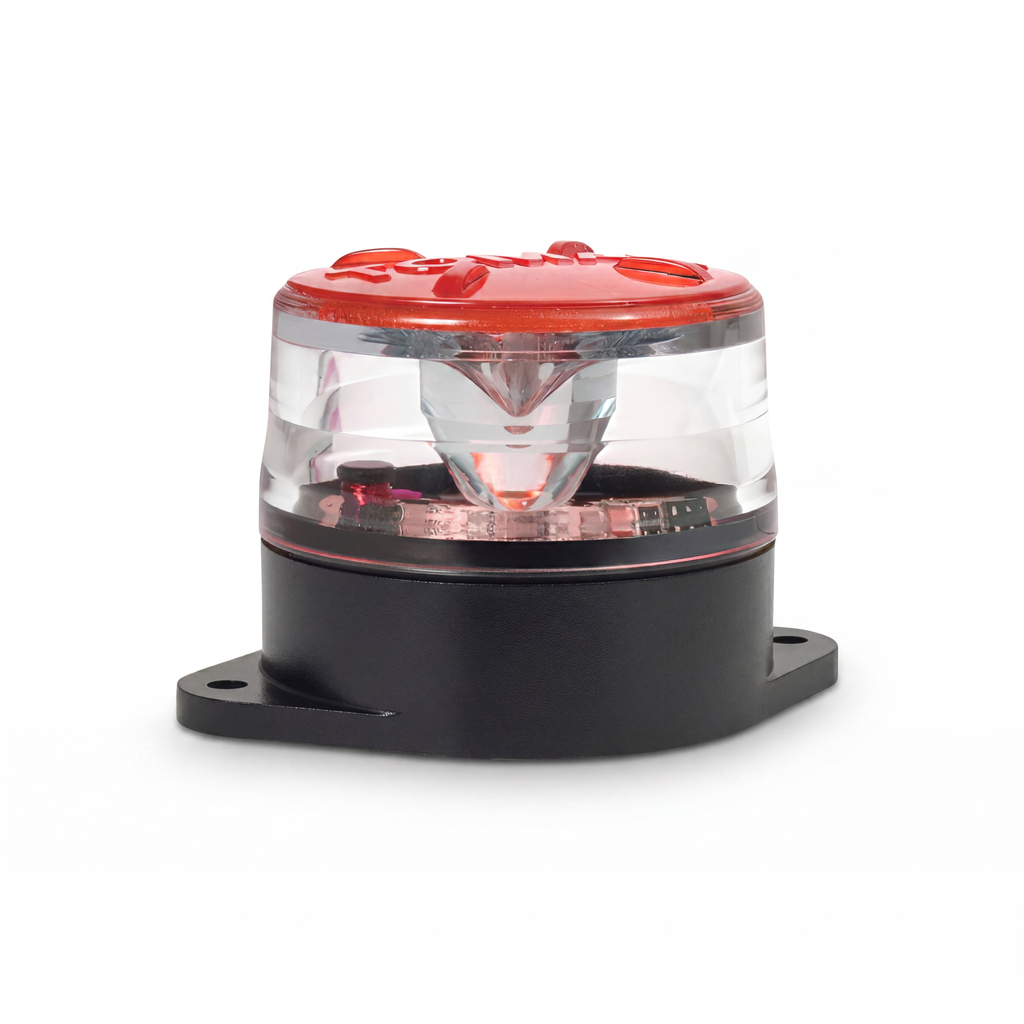

TOMAR Electronics MicroLERT is a compact Hazardous Location LED warning light engineered to perform in the harshest environments. The non-metallic housing and Lexan shatter-resistant lens make it particularly well-suited for installations in wet, harsh, and hazardous location environments.
Totally non-metallic these warning lights are fully sealed for NEMA 4 capability in any mounting configuration – base up, down or side positions. Their compact design makes them ideally suited where space consideration may be an issue.
Potential Locations and applications
The MicroLERT is UL listed for Class I, Division 2, Groups A, B, C, and D. The AC models are also UL listed for Class II, Division 2, Groups F and G, and Class III.
Typical applications include manufacturing plants, chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, agricultural, commercial, industrial, mining and marine facilities.
Model Configurations
Available in either Flashing or Steady-burn mode, this model will operate over a wide AC and DC input voltage range. The DC version operates from 10-100 VDC, and the AC version from 85 – 265 VAC.
Key Features
- 5-year warranty
- Class I, Division 2 Groups A, B, C, & D
- Sealed construction
- UL Listed
- Wide AC and DC input voltage
- Lexan lens
- Steady-on or Flashing
- Surface, Pipe, or Thread mounts
- 5 LED colors – Amber, Blue, Red, Green, and White
Specs
- Lamp Type: LED
- Flash Rate: 75 NEOBE® flashes per minute – each flash containing 7 rapid bursts of light (approximately 560 ms “on-time” and 240 ms “off-time”)
-
Voltage and Amperage:
- 200 mA @ 24 VDC Flashing; 420 mA Steady-burn
- 040 mA @ 120 VAC Flashing; 085 mA Steady-burn
- 020 mA @ 240 VAC Flashing; 045 mA Steady-burn
- Operating Temperature: -20 to 45°C

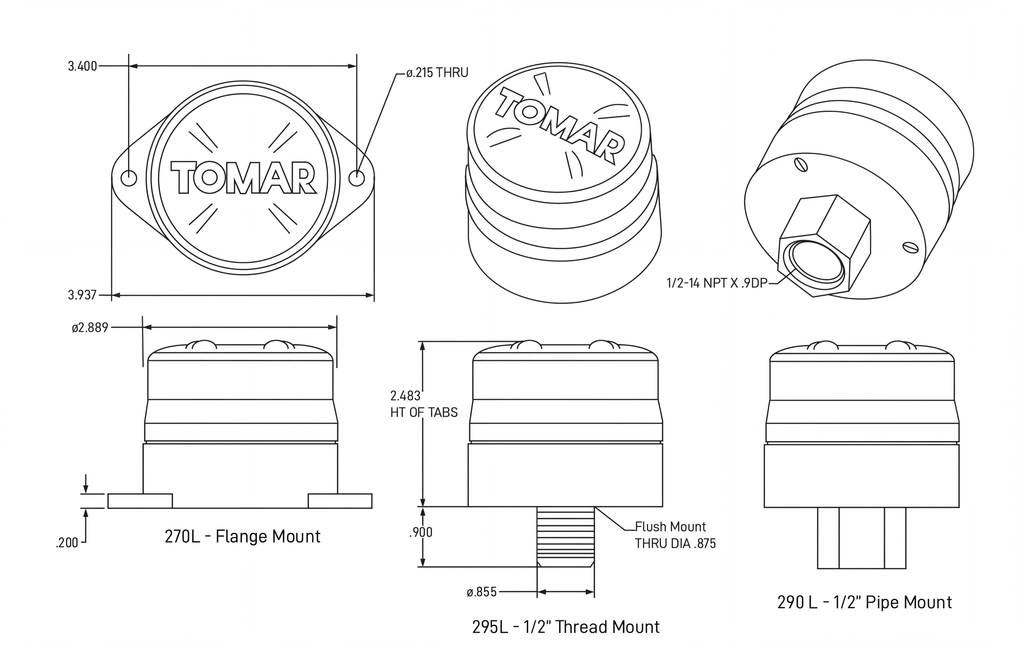

MicroLERT Models
| Model | Description | Voltage |
| 270XF-12-80 | Flashing Flange Mount | 12-80 VDC |
| 270XF-120-240 | Flashing Flange Mount | 120-240 VAC |
| 270XS-12-80 | Steady-On Flange Mount | 12-80 VDC |
| 270XS-120-240 | Steady-On Flange Mount | 120-240 VAC |
| 290XF-12-80 | Flashing ½” Pipe Mount | 12-80 VDC |
| 290XF-120-240 | Flashing ½” Pipe Mount | 120-240 VAC |
| 290XS-12-80 | Steady-On ½” Pipe Mount | 12-80 VDC |
| 290XS-120-240 | Steady-On ½” Pipe Mount | 120-240 VAC |
| 295XF-12-80 | Flashing ½” Thread Mount | 12-80 VDC |
| 295XF-120-240 | Flashing ½” Thread Mount | 120-240 VAC |
| 295XS-12-80 | Steady-On ½” Thread Mount | 12-80 VDC |
| 295XS-120-240 | Steady-On ½” Thread Mount | 120-240 VAC |
Helpful Links
- MircoLERT Hazardous Location Compact LED Warning Light - Product Brochure
- IS1172 - MiroLERT Hazardous Location Compact LED Warning Light - Installation, Maintence, and Model overview - AC Models
- IS1173 - MiroLERT Hazardous Location Compact LED Warning Light - Installation, Maintence, and Model overview - DC Models
3D STEP FILES
FAQ's
Will a 120vac light work on 110vac? A 240vac unit on 220vac?
Yes, operating voltage is actually +/- 10% of rated voltage.
Can I use a replacement 8 pin Tomar strobe tube in another manufacturers fixture if it physically fits?
No, the strobe tube should be matched to the model of the strobe light
Are your ½” male and female pipe mounts NPT, or another thread type (i.e. straight conduit)?
Our male and female pipe mounts are NPT
