1002WEP Power Alarm®

  • TOMAR’s model 1002WEP Explosion-Proof POWER ALARM® siren is a rain tight solid state audible alarm, that features a choice of 8 field select-able tones
  • Envelope of Safety® product
  • This product normally ships within 1–2 business days
  • SKU:
  • Regular price
  • PRICE:

PRODUCT OVERVIEW

TOMAR’s model 1002WEP Explosion-Proof POWER ALARM® siren is a rain tight solid state audible alarm, that features a choice of 8 field select-able tones plus remote control selection of 4 tones with priority.

All models of 1002WEP alarms are o-ring gasketed and are UL listed for Class I, Division 1, Group C & D, Class I, Division 2, Groups A, B, C, & D, Class II, Division 2, Groups F & G, NEMA Type 4X, and marine outside (salt water) use.

KEY FEATURES

  • Class I, Division 1, Groups C & D
  • Class I, Division 2, Groups A, B, C, & D
  • Class II, Division 2, Groups F & G
  • Weatherproof construction
  • 8 select-able tones
  • Remote control with priority
  • UL listed
  • NEMA 4X Rating

SPECS

  • Volume: S7–110dbA @ 10 feet
  • Voltage and Amperage:
    • 24VDC draws 0.8A 50/60 Hz
    • DC 120VAC draws 0.2A 50/60 Hz
    • 240VAC draws 0.1A 50/60 Hz
  • Enclosure Construction: Weatherproof construction, fiberglass horn, cast aluminum housing
  • Mounting: Omni-directional mounting bracket, 1/2” conduit access
  • Ambient Temperature Range: –55º C to +85º C (–67º F to +185º F)

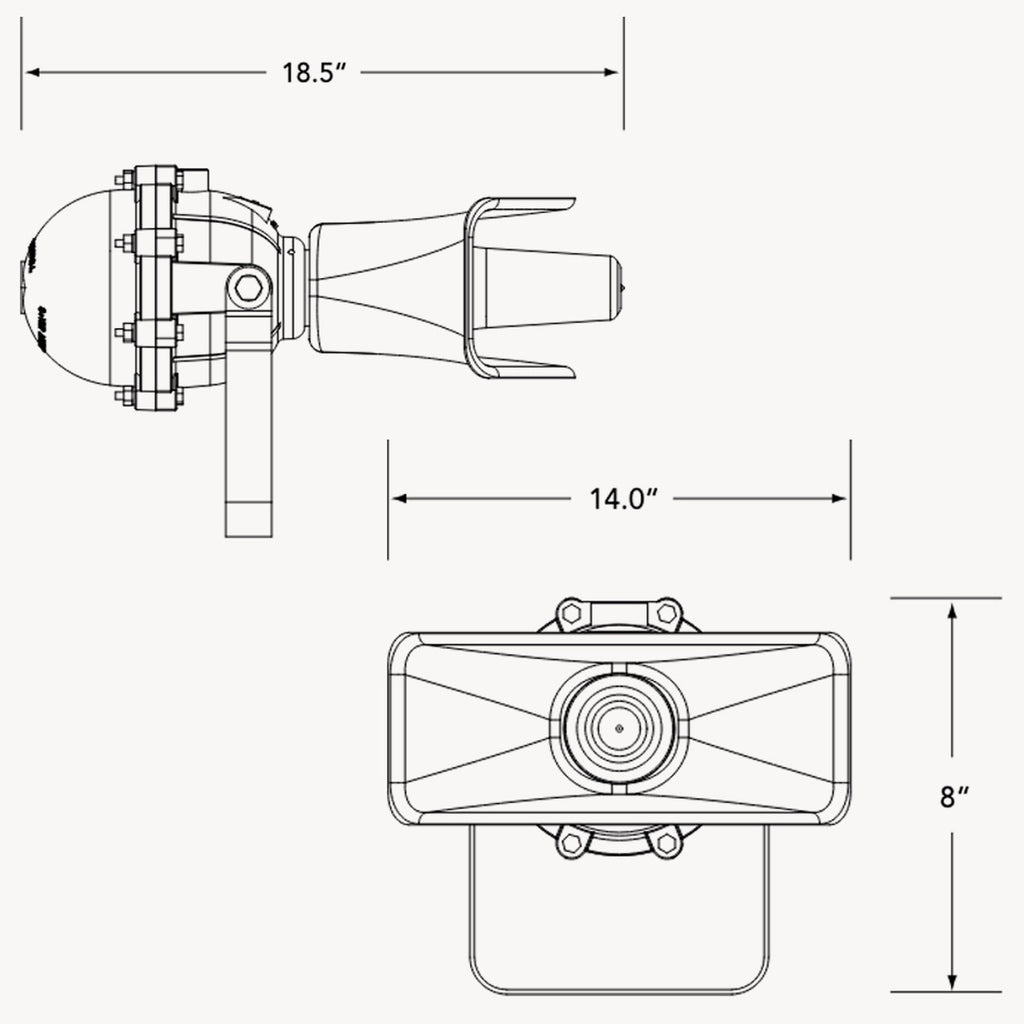

  • Size and Weight: 14” wide x 8” high x 18.5” long (356mm x 152mm x 445mm)
  • Weight: 19.5 lbs (8.9kg)

Model Numbers

  • Model 1002WEP–24 - Explosion proof power alarm - 24VDC
  • Model 1002WEP–120 - Explosion proof power alarm - 120VAC
  • Model 1002WEP–240 - Explosion proof power alarm - 240VAC

Sounds

Architect and Engineer Specifications

Explosion proof sounder shall be Tomar model 1002 WEP or approved equal. The loudspeaker shall be UL Listed Class I, Division 1 and 2, Class II, Division 2, and Class III for use in specified hazardous locations and/or combustible atmospheres as classified by the National Electric Code.

The explosion proof sounder shall have 9 integrated field selectable sounds plus remote control selection of 4 sounds with priority. Speaker housing must have O-ring gasket and be NEMA 4X and marine (salt water) rated. Projector horn shall be a reflex type with polycarbonate re-entrant section. Voice coils shall be field-replaceable, and the operating temperature rating is to be -55C to 85C; -67F to 185F.
