8024 Mini Lite Beacon

  • SKU:
  • Regular price MSRP:
  • YOUR PRICE:

PRODUCT OVERVIEW

The model 8024 family is a low profile, multi-flash strobe light which can be changed by the customer from double flash to quad flash operation. It features universal mounting, full size 360° Lexan® lens, high efficiency regulated solid state power supply, and heavy duty xenon strobe lamp. DC units have polarity protection and built-in filters to protect against radio interference and spike voltages. AC units are designed to withstand multiple line transient spikes of 6000V without damage.

The model 8024 strobe features a fully potted, Lexan®, multi-purpose mounting base which is vibration and water resistant, and has a plug-in strobe lamp and photocell which can be activated to automatically reduce intensity during nighttime operation.

Key Features

  • Universal mounting
  • Built-in RFI filters
  • Solid state power supply
  • Xenon strobe lamp

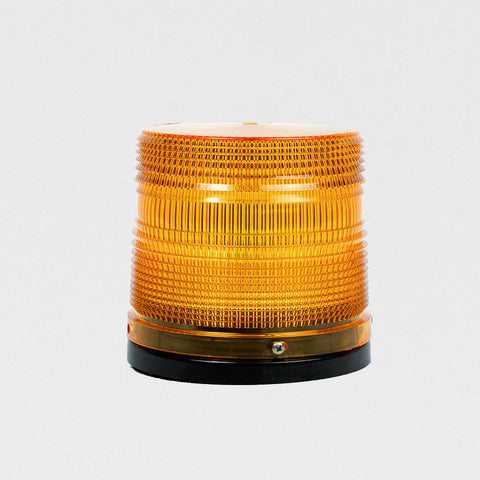

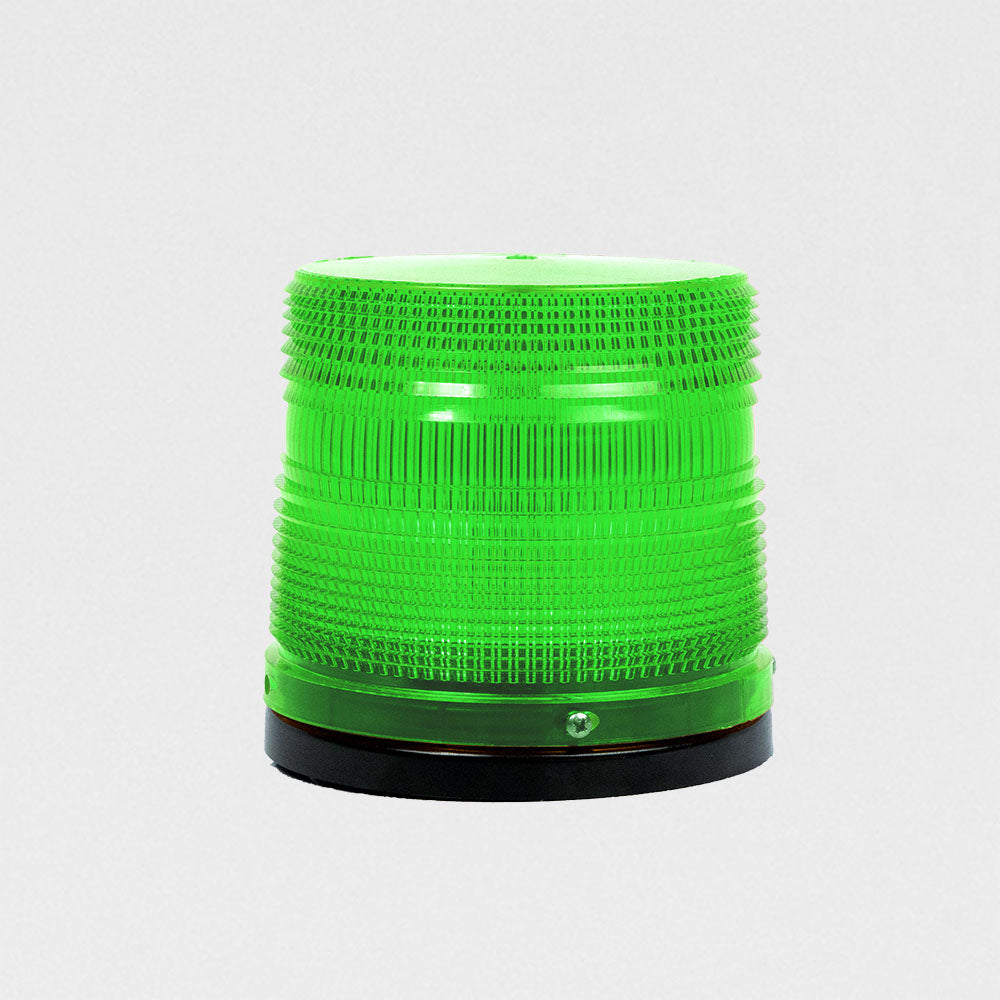

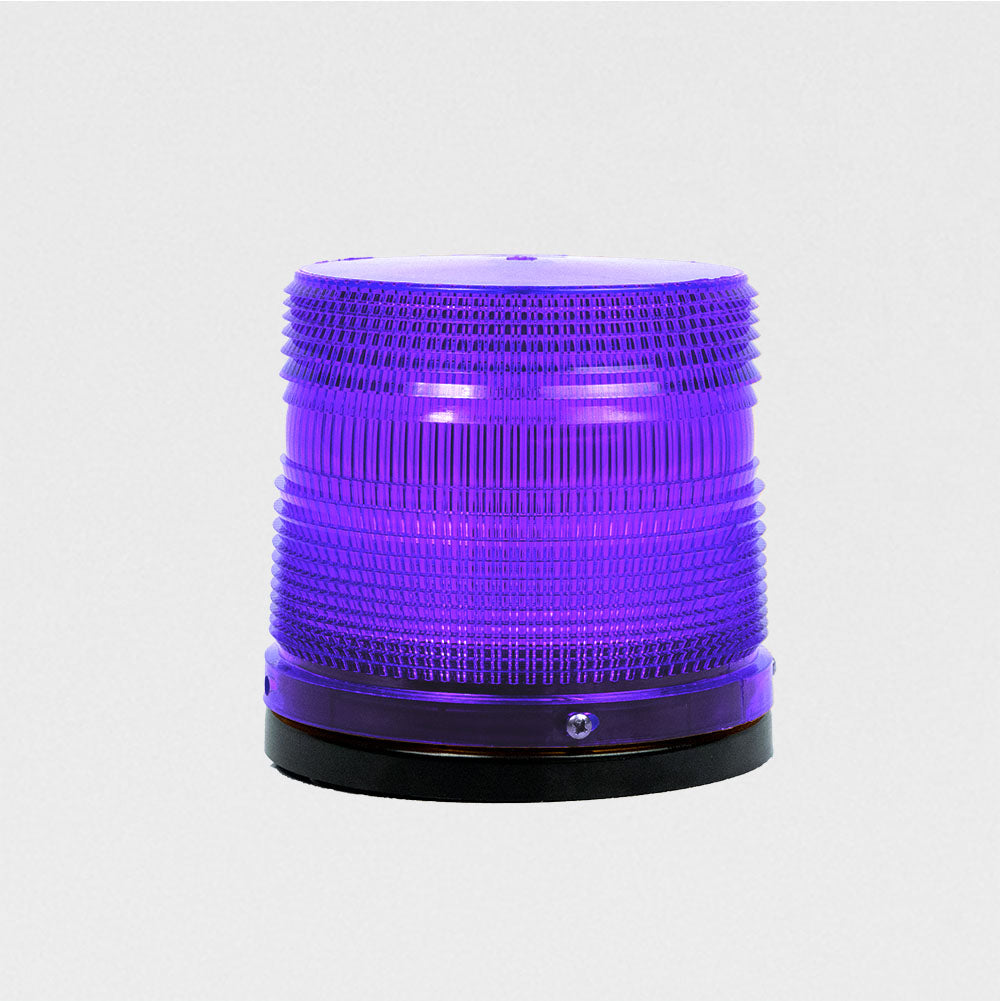

  • Colors: amber, blue, clear, green, purple, & red
  • 5 year warranty on power supply
  • 1 year warranty on lamp
  • UL listed (AC models only)
  • NEMA 4X
  • 1200 ECP

Specifications

  • Flash Rate: 68 to 72 double flashes per minute
  • 58 to 62 quad multi-flashes per minute
  • Light Output: 900 effective candlepower (ECP)* (Double flash) 1200 effective candlepower (ECP)* (Quad flash)
  • Voltage and Amperage: 12-28VDC draws 2.2 to 2.4A @ 12V tapering to 1.2 to 1.4A @ 28V at high intensity
  • 120VAC draws 0.8A peak, 0.5 to 0.6A average
  • 240VAC draws 0.8A peak, 0.5 to 0.6A average
  • Power Supply Output @ 240V Input: 17 joules per double flash. 1,700,000 Peak Candlepower**
  • 25 joules per quad multi-flash. 2,500,000 Peak Candlepower**
  • Operating Temperature: -40°C to 65°C
  • Size and Weight: 5.25” tall x 5.5” dia. x 2.0 lbs (133mm x 140mm x 0.9kg)
  • Encapsulation: Fully potted in urethane material with no exposure to High Voltage possible

Models

Model No. Description Voltage/Frequency
8024–110 AC strobe with 10” leads, UL listed 120VAC, 50/60Hz
8024LC–110 AC strobe with AC cord set, UL listed 120VAC, 50/60Hz
8024–240 AC strobe with 10” leads, UL listed 240VAC, 50/60Hz
8024–1228 DC strobe with 10” leads 12 – 28VDC
8024MB–1228 DC strobe, magnetic mount and 10’ coil cord 12 – 28VDC
8024MBSC–1228 DC strobe, magnetic mount and 10’ straight cord 12 – 28VDC

Architect and Engineer Specifications

The visual signaling beacon shall be Tomar model 8024 or approved equal. The light source shall be a plug-in field replaceable xenon strobe lamp. The beacon shall have a field selectable double or quad flash rate of 68 to 72 double flashes per minute, or 58 to 62 quad flashes per minute. The warning beacon shall have a Lexan® lens and universal mount base. The DC voltage units are to have polarity protection, and must have built-in RFI filters to protect against radio interference and spike voltages. All beacons must have fully potted power supply and base. The AC units shall be designed to withstand multiple line transient spikes of 6000V without damage. The double flash beacon shall generate 17 joules, and the quad-flash beacon shall generate 25 joules. Light intensity is to be 750 effective candlepower. Voltage ranges shall be 12-28VDC, 120 VAC, and 240VAC. Strobe light shall be designed to accept a dome guard and mounting bracket

NOTE
*ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily.
**Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse.
